LTE Standard Module Series
EG915U_Series_Hardware_Design 29 / 81
3.2.2.2. USB Application with USB Suspend/Resume and MAIN_RI Wakeup Function
If the host supports USB Suspend/Resume, but does not support remote wakeup function, the MAIN_RI
signal is needed to wake up the host.
The following figure shows the connection between the module and the host.

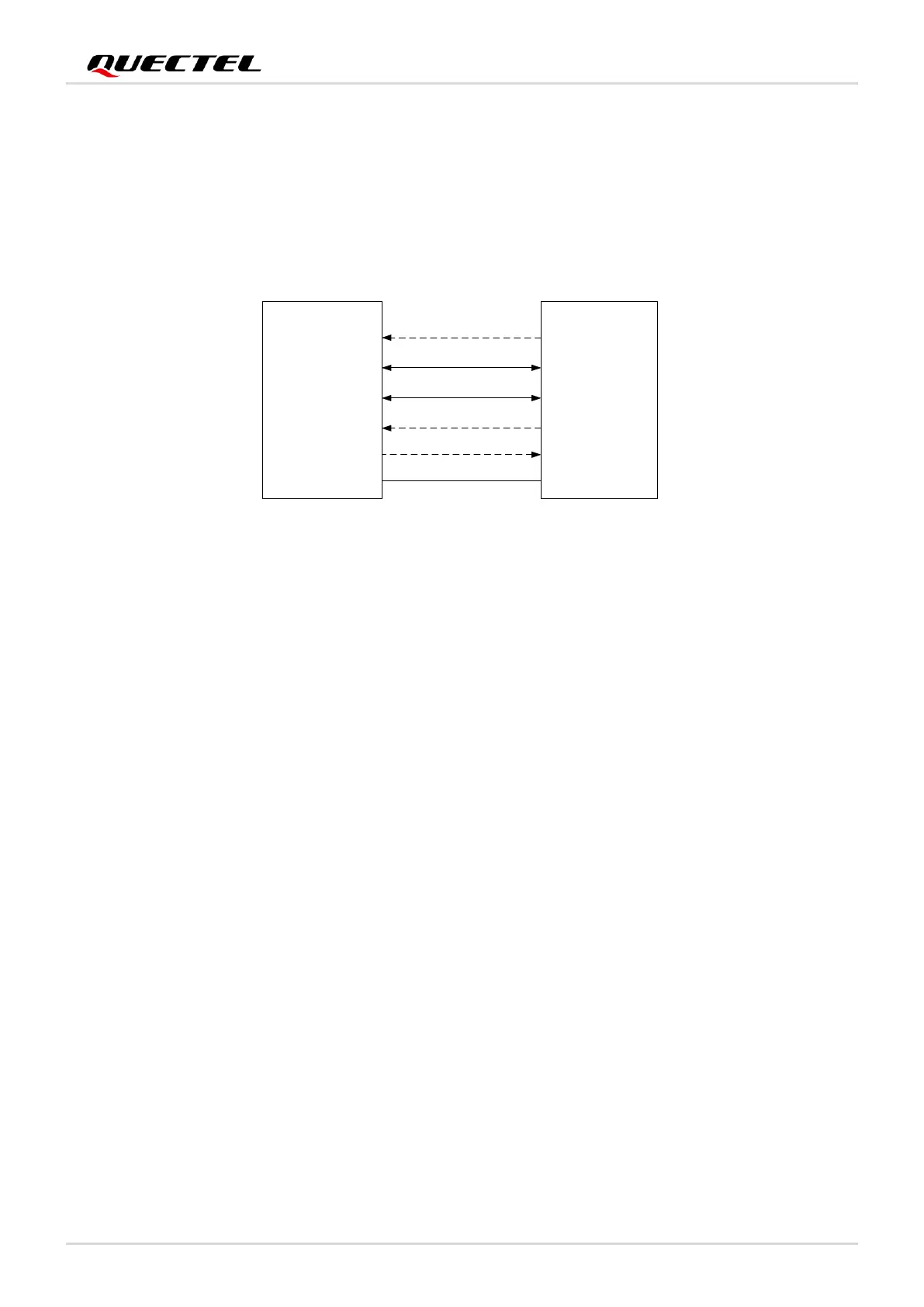

Figure 5: Sleep Mode Application with MAIN_RI
⚫ Sending data to the module through USB will wake up the module.
⚫ When the module has a URC to report, the URC will trigger the behavior of MAIN_RI pin.
