Raven RS1/HDU Calibration & Operation Manual

P/N 016-4010-001 Rev. A 17
CALIBRATION
GPS CALIBRATION

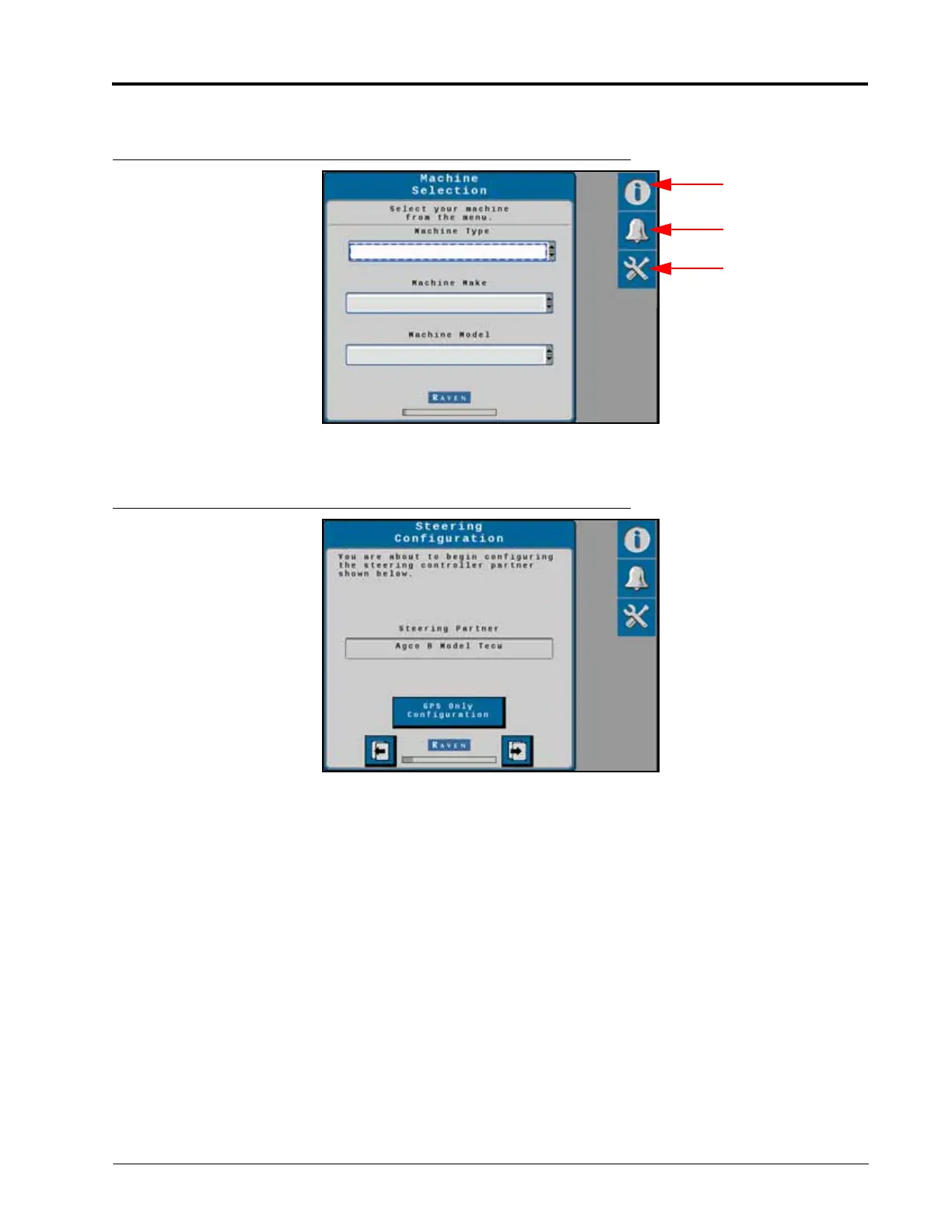

FIGURE 22. Machine Selection Screen
1. Select the Machine Type, Machine Make, and Machine Model from the Machine Selection drop-down boxes.
FIGURE 23. Steering Configuration Screen
2. Verify that the correct steering controller partner has been identified.
• OEM TECU (tractor’s electronic control unit)
• Sauer Danfoss CL/CLS Valve
• S m a r T r a x M D
3. Select the Next arrow.
