CHAPTER 7
48 Raven RS1™ Guidance and Steering Calibration & Operation Manual
CONFIGURE GPS IN THE RS1

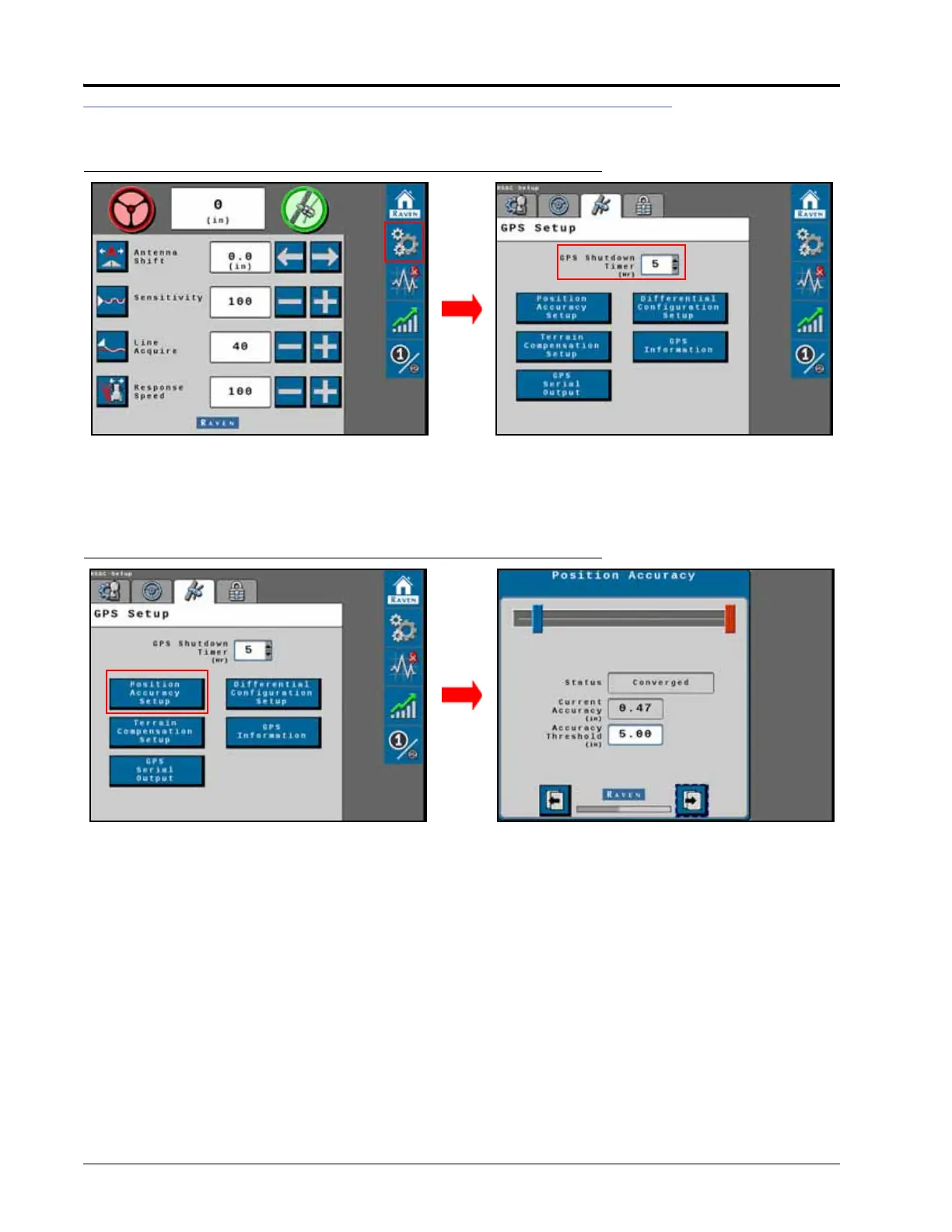

FIGURE 3. GPS Setup Screen
• GPS Shutdown Timer - The GPS Shutdown Timer value determines the length of time the RS1 unit remains
powered after the machine’s switched power is turned off. The GPS remains converged for the length of time
selected.
FIGURE 4. Position Accuracy Setup Screen
• Status - Displays the absolute status of the GPS accuracy. Statuses that may be displayed in this area include:
◦ No Signal
◦ Error
◦ Converging
◦ Converged
• Current Accuracy - If the machine is positioned in exactly the same spot day after day, the GPS position
readings should be within the distance shown in the Current Accuracy field.
• Accuracy Threshold - This value dictates the distance from which the machine’s GPS position may deviate
from the Current Accuracy position. If the GPS solution falls outside the set Accuracy Threshold, a DTC entry will
displayed into the Diagnostic Trouble Code screen. The Accuracy Threshold will be populated with a default
value that can be changed during the calibration process.
