GPS STATUS

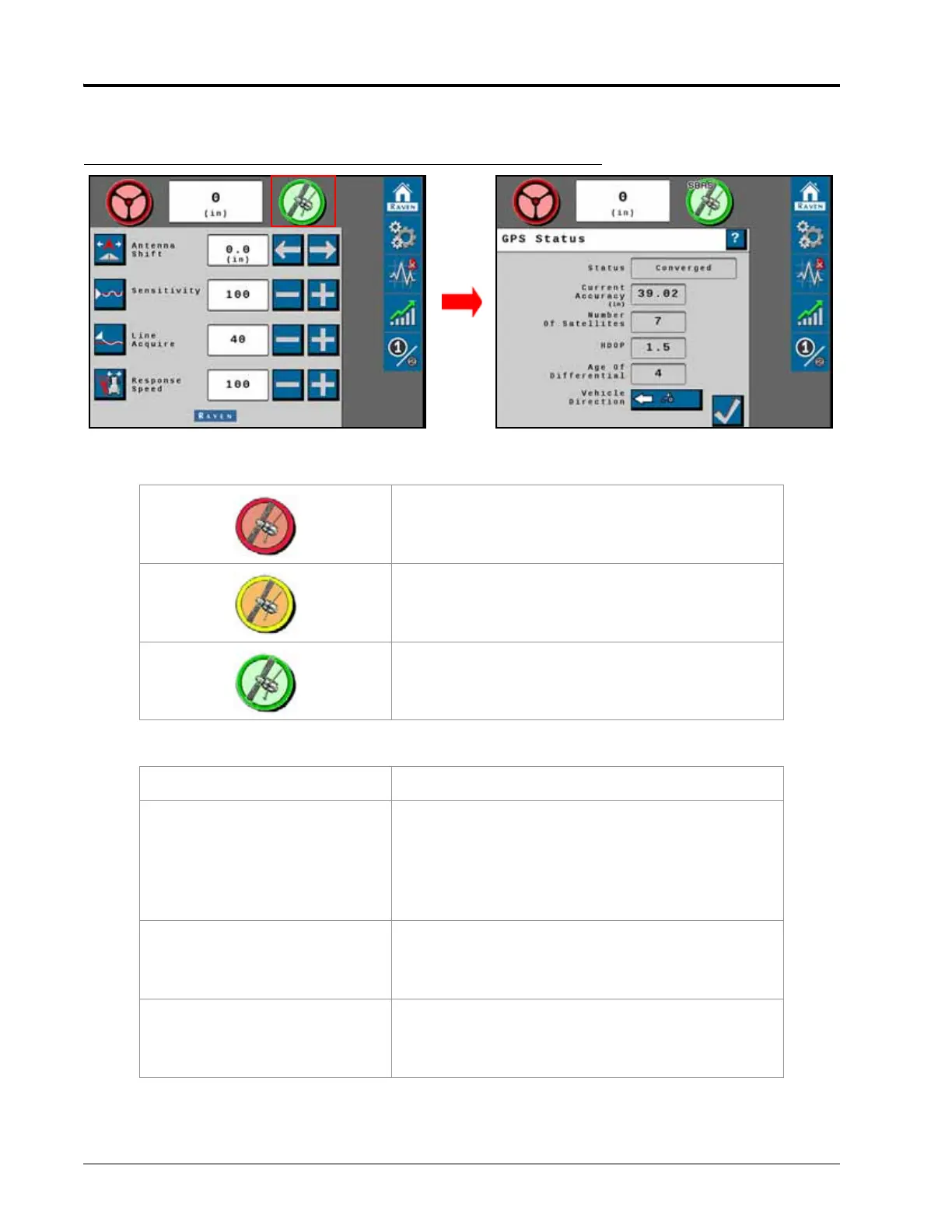

FIGURE 3. Home Screen
The following are common GPS status or mode information which may occur while the RS1 system is engaged:
Press the GPS icon to display the GPS Status screen.
No GPS information is being detected in the RS1 system.
GPS signals are not converged or GPS is converged and
a warning DTC is present..
GPS signals are converged and no warning DTCs are
active.
NOTE: Both the steering wheel and GPS icons must be
green in order to engage the RS1 system.
Display Message
Status
Displays the selected GPS convergence status.
•Error
•No Signal
•Converging
•Converged
Current Accuracy
If the machine is positioned in exactly the same spot day
after day, the PGPS position reading should be wihin the
distance displayed.
Number of Satellites
The number of satellites currently in view by the GPS
receiver.
