Raven SCS 360 User Manual

17

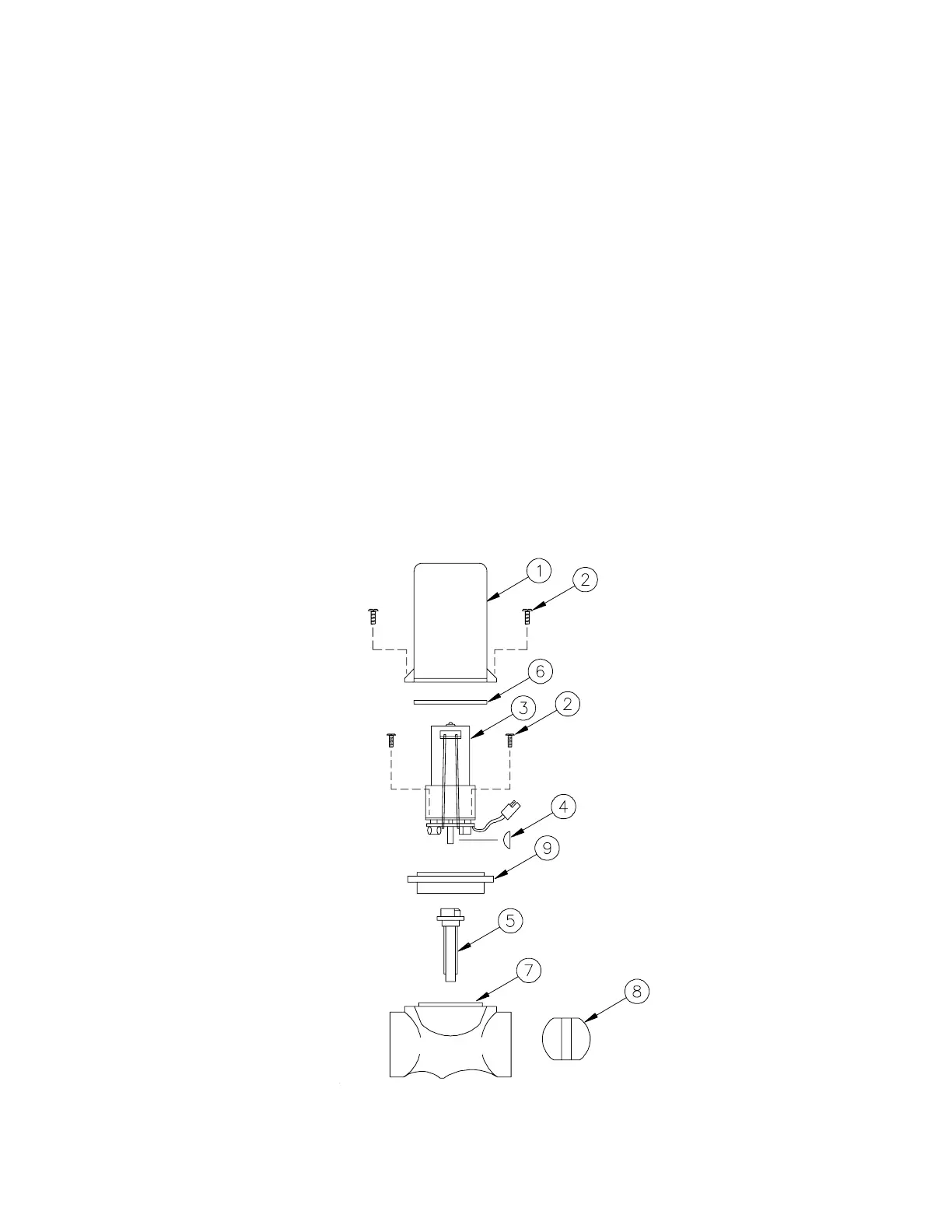

1" AND 1 1/2" POLY CONTROL VALVE REPLACEMENT PARTS
063-0159-445 - 1" VALVE
063-0159-446 - 1 1/2" VALVE
ITEM DESCRIPTION RAVEN PART #
1 Valve Cover 106-0159-407
2 #6-32 x 3/4" Lg. Screw 321-0000-256
3 Motor Assembly 063-0159-409
4 Woodruff Key 321-0000-062
5 Coupler Shaft (1" Valve) 019-0159-016
Coupler Shaft (1 1/2" Valve) 019-0159-015
6 Seal Tetraseal 219-0000-020
7 Valve Body Mod. (1" Valve) 019-0159-005
Valve Body Mod. (1 1/2" Valve) 019-0159-006
8 Butterfly (1" Valve) 106-0159-411
Butterfly (1 1/2" Valve) 106-0159-414
9 Isolation Flange Assembly 063-0159-457
10 Iso-Body Kit (1" Valve) (Not Shown) 117-0159-009
Iso-Body Kit (1 1/2" Valve) (Not Shown) 117-0159-010
11 *Polarity Reversal Jumper (Not Shown) 115-0159-415
*NOT SUPPLIED WITH STANDARD UNIT
