Raven SCS 360 User Manual

18

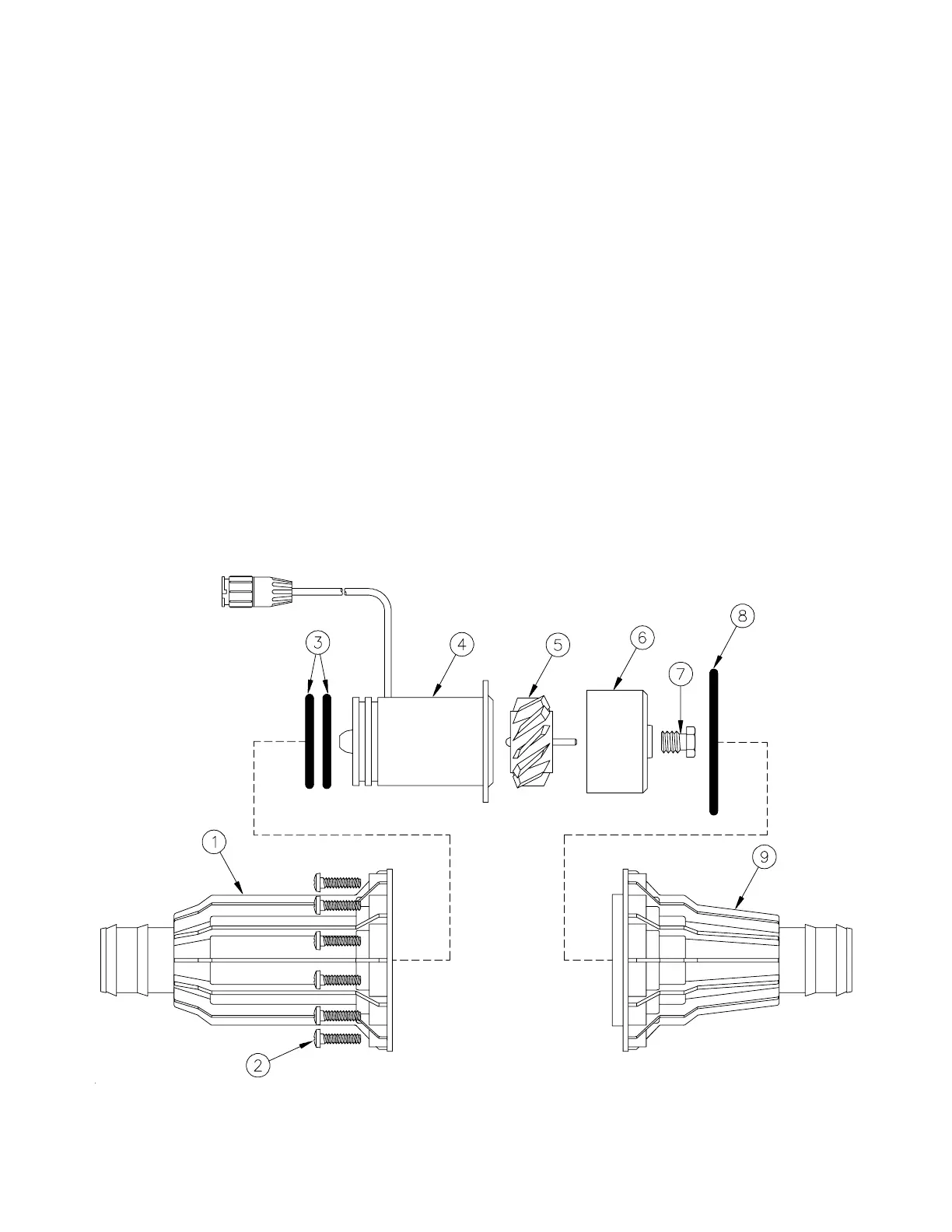

RFM 55 FLOW METER REPLACEMENT PARTS
063-0159-571
ITEM DESCRIPTION RAVEN PART #
1 Sensor Housing 019-0159-085
2 #10-32 x 3/4" S.S. Screw 311-0007-037
3 O-Ring, Viton 219-0002-030
4 RFM 55 Dual O-Ring XDCR Assembly 063-0159-749
5 RFM 55 Turbine 117-0159-020
6 Turbine Hub/Bearing Assembly 063-0359-563
7 Turbine Stud Assembly 063-0159-570
8 O-Ring, Viton 219-0000-042
9 Hub Housing w/Inserts 063-0159-776
10 Mounting Bracket, RFM 55 (Not Shown) 107-0159-507
** Dual O-Ring Transducer Kit 117-0159-569
(Includes Items #3 & 4)
