Raven SCS 360 User Manual

19

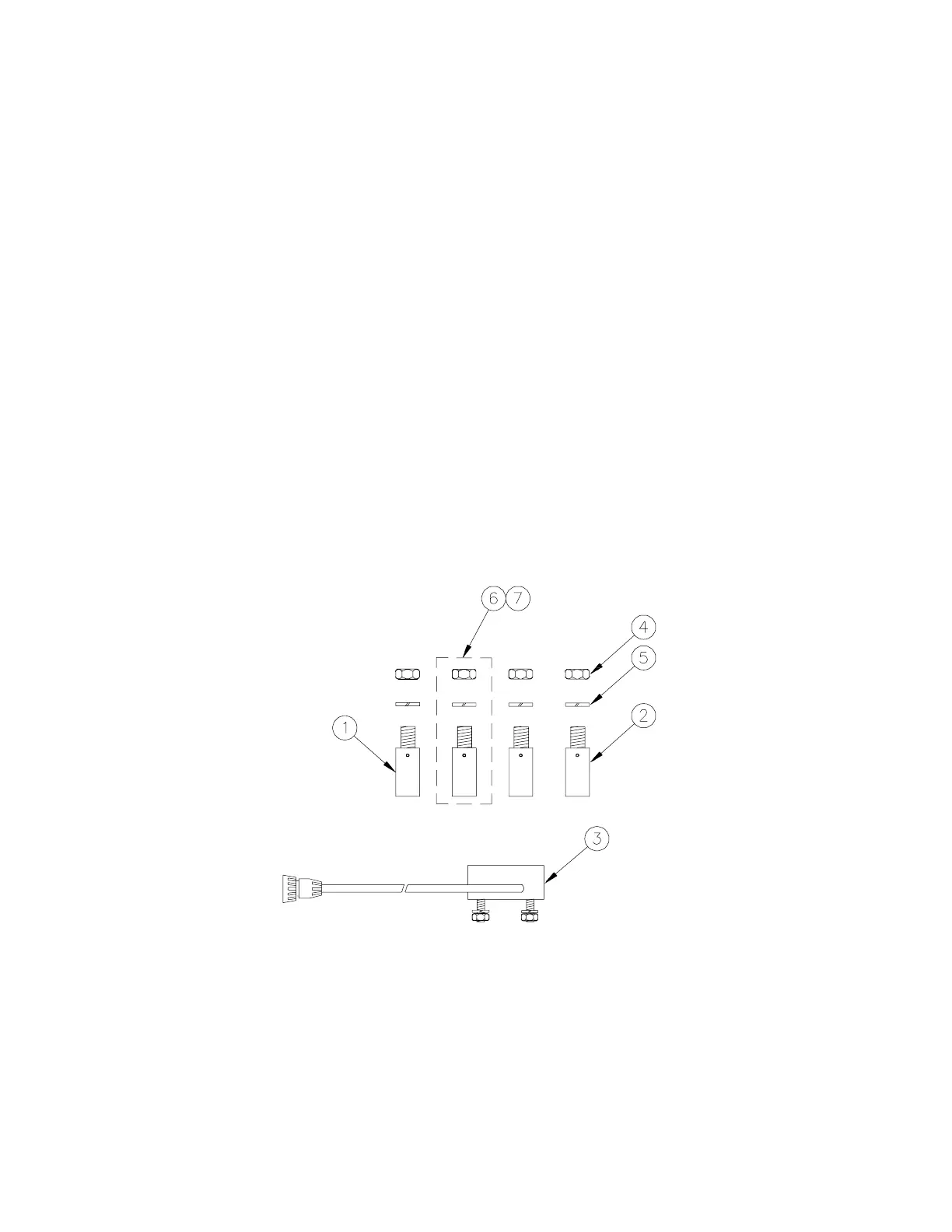

WHEEL DRIVE SPEED SENSOR REPLACEMENT PARTS
ITEM DESCRIPTION RAVEN PART #
1 Red Magnet Assembly, North 063-0159-402
2 Black Magnet Assembly, South 063-0159-403
3 Sensor Ass'y (24 ft.) Standard 063-0171-295
Sensor Ass'y (10 ft.) Turf 063-0159-770
Sensor Ass'y (7 1/2 ft.) 063-0171-149
4 1/2-13 Hex Nut 312-1001-043
5 1/2" Lock Washer 313-1000-028
6 Red Magnet Wheel Kit, North 115-0159-622
7 Black Magnet Wheel Kit, South 115-0159-623
8 24 ft. Speed Sensor Ext. Cable (Optional)(Not Shown) 115-0159-018
9 12 ft. Speed Sensor Ext. Cable (Optional)(Not Shown) 115-0159-032
