CHAPTER 3
12 RBR Enterprise Vector 300 LS/Venturi LS RS1/HDU Installation Manual
INSTALL FITTINGS IN THE STEERING VALVE
Before mounting the RS1/HDU valve (P/N 334-0003-088) on the machine, install the proper fittings in the valve.
This prepares the valve for installation and simplifies the hose connection process later in the procedure.

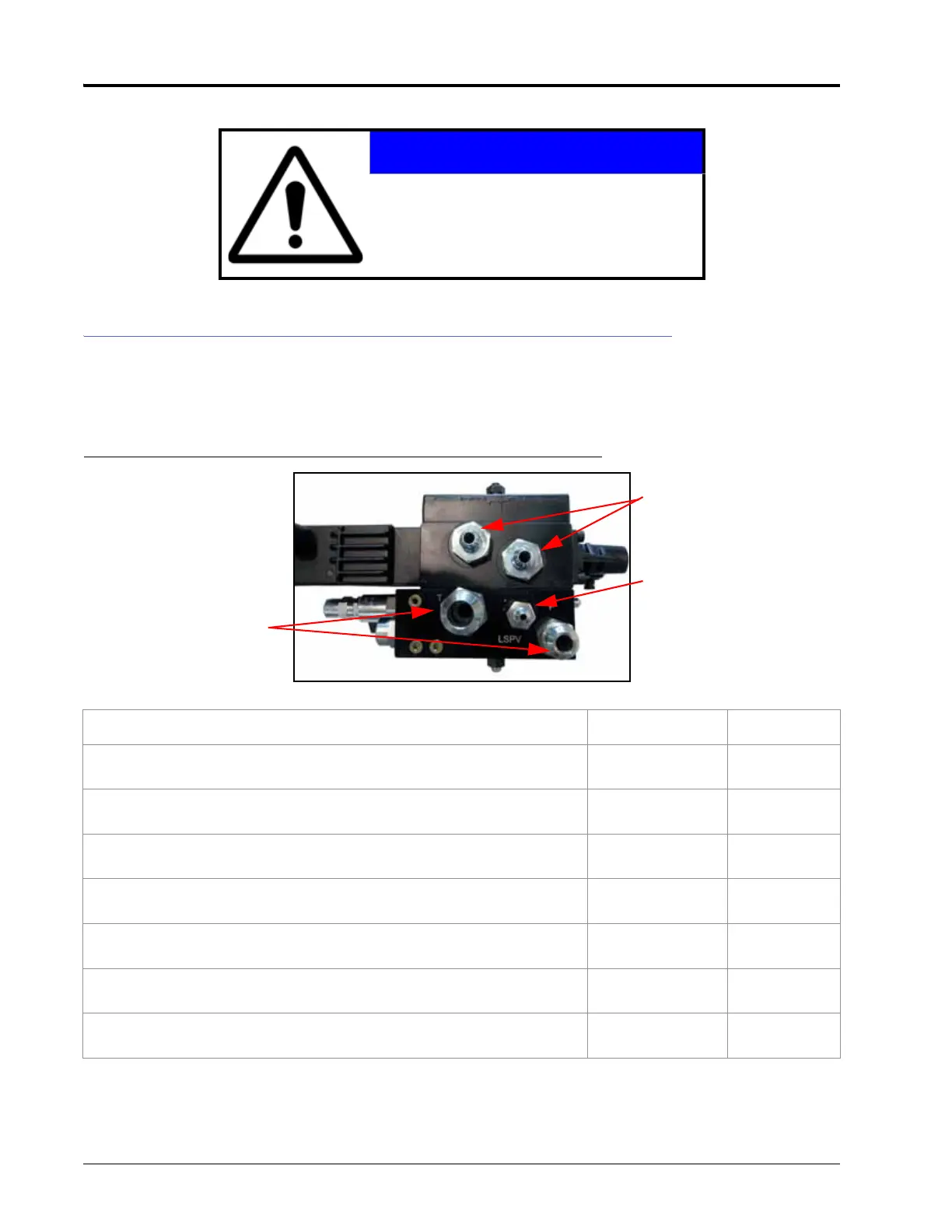

FIGURE 1. Fittings Installed in the Steering Valve
NOTICE
The appearance of the RS1/HDU hydraulic valve
may vary slightly from the images contained in
this manual. However, the fittings, hose
connections, and cable connections remain the
same.
Fitting Part Number Port
Fitting - -6 JIC (M) to -10 SAE O-Ring (M) Straight Adapter 333-0012-106 A, B
Fitting - -6 JIC M/F 90° Swivel Elbow 333-0012-042 A, B
Fitting - -4 JIC (M) to -6 SAE O-Ring (M) Straight Adapter 333-0012-044
LSPV,
LS STEER
Fitting - -4 JIC M/F 90° Swivel Elbow 333-0012-154 LSPV
Fitting - -10 JIC (M) to -8 SAE O-Ring (M) Straight Adapter 333-0012-110 P, T
Fitting - -10 JIC M/F 90° Swivel Elbow 333-0012-108 P, T
Transducer - 0-3000 PSI Pressure 422-0000-086 PS
Install -4 JIC M/F 90°
Swivel Elbow (P/N 333-
0012-154) on Fitting
Installed in Port LSPV
Install -6 JIC M/F 90°
Swivel Elbow (P/N 333-
0012-042) on Fittings
Installed in Ports A and B
Install -10 JIC M/F 90°
Swivel Elbow (P/N 333-
0012-108) on Fittings
Installed in Ports P and T
To Next Page
