Raven TC1 User Manual

Cab Component Installation: RS1 Cable 37
CAB COMPONENT INSTALLATION

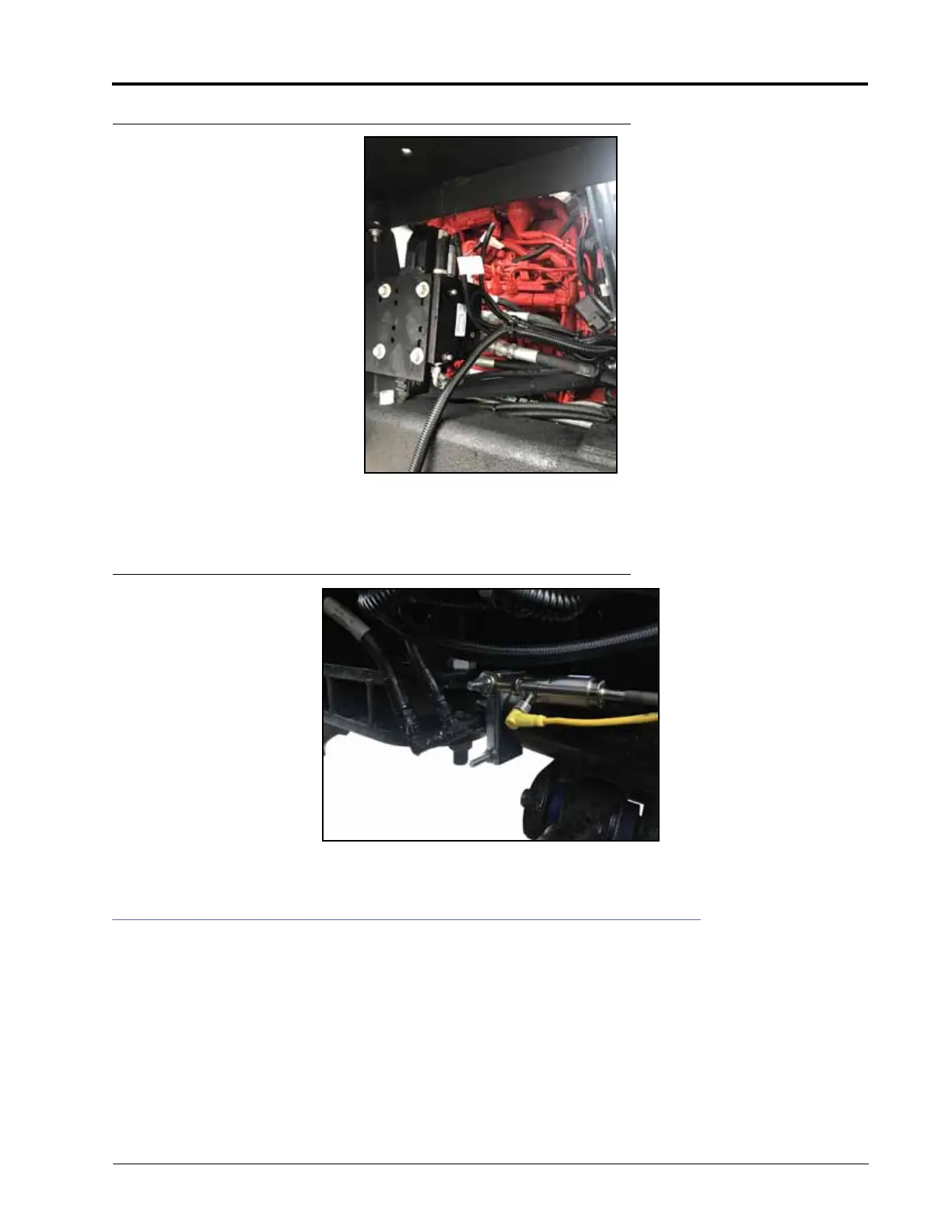

FIGURE 21. Valve Connections
7. Route and connect the WAS connector on the HDU valve cable to the WAS.
FIGURE 22. WAS Cable Connected to WAS
RS1 CABLE
1. Identify the RS1 Cable (P/N 115-4010-068).
2. Connect the round bulkhead connector to the mating connector on the HDU cable that was installed in the
rear of the machine.
