Hydraulic System Installation: Mount the Steering Valve 13

HYDRAULIC SYSTEM INSTALLATION

MOUNT THE STEERING VALVE

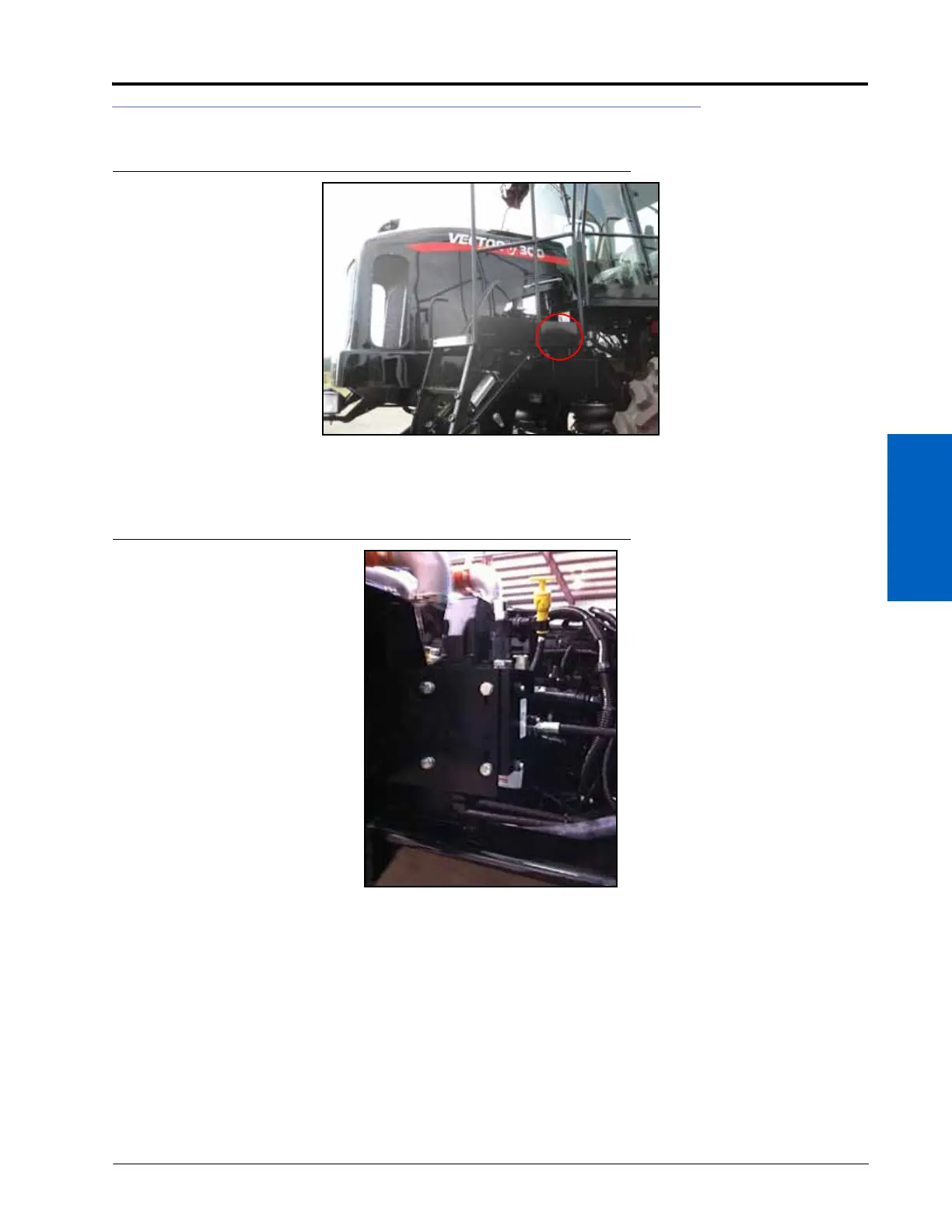

FIGURE 2. Steering Valve Mounting Location

1. Identify the steering valve (P/N 334-0003-088) mounting location on the inside of the machine’s frame, below

the walkway.

FIGURE 3. Steering Valve Installed

2. Secure the steering valve to the valve mounting bracket using four 5/16”-18 x 7/8” hex bolts (P/N 311-0052-104)

and four 5/16” lock washers (P/N 313-1000-019).

3. Remove the top bolt from the machine’s catwalk.

4. Align the lip of the valve mounting bracket with the hole in the catwalk and the adjacent hole in the machine’s

frame.

5. Install the valve mounting bracket on the machine using the machine’s bolt that was removed in step 2 and one

3/8”-16 UNC x 1-4” bolt (P/N 311-0054-106, one 3/8” flat washer (P/N 313-2300-013), and one 3/8”-16 UNC 3B

nylon insert lock washer (P/N 312-4000-061).
