CHAPTER 5
34 RBR Enterprise Vector 300 LS/Venturi LS RS1/HDU Installation Manual

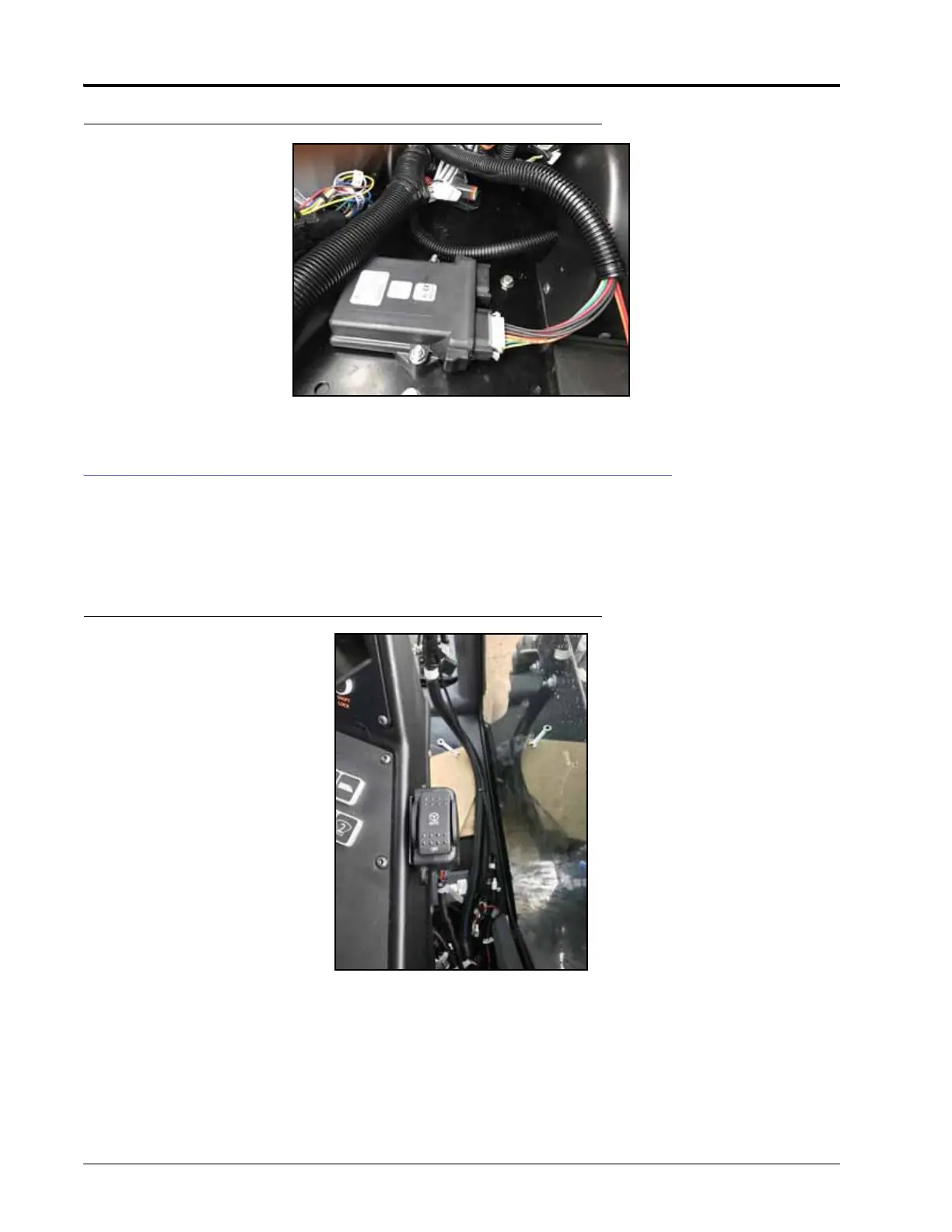

FIGURE 15. 12-Pin Connected to HDUl
HDU SWITCH CABLE
1. Identify the HDU Switch Cable (P/N 115-4010-028).
2. Connect the 8-pin plug on the HDU switch cable to the receptacle on the HDU cable.
3. Connect the 4pin Master connector on the HDU switch cable into the master switch.
FIGURE 16. Master Cable Connected
4. Connect the 2-pin Engage connector on the HDU switch cable to the machine’s mating connector labeled RS1/
HDU.
