Hydraulic System Installation: Install the Pressure and Tank Hoses 17
HYDRAULIC SYSTEM INSTALLATION

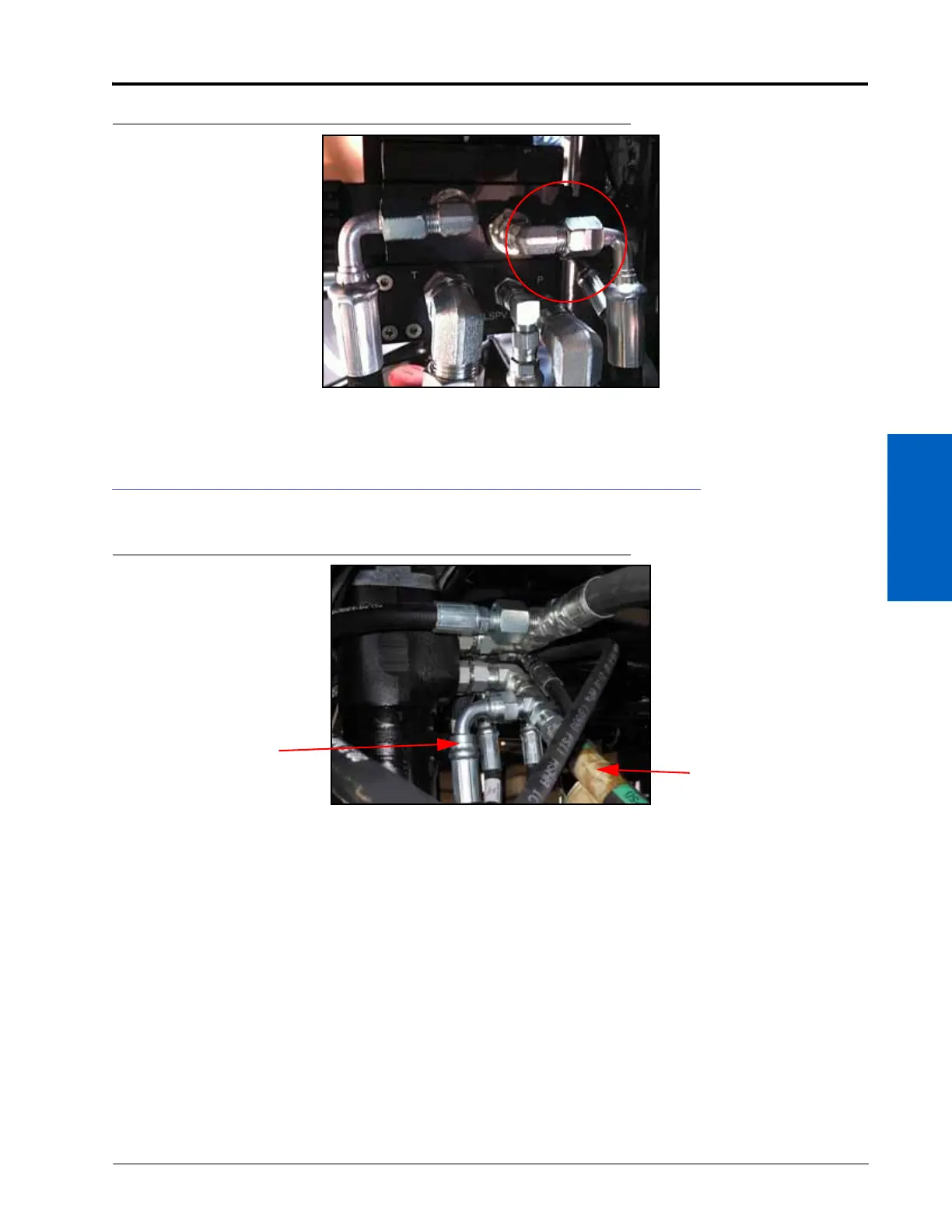

FIGURE 10. Right Steering Hose Installed on Steering Valve
7. Connect the 90° end of the installed hydraulic hose to the fitting installed in Port B of the steering valve.
INSTALL THE PRESSURE AND TANK HOSES
FIGURE 11. Pressure Hose Installed on Steering Orbital
1. Remove the cap from the tee fitting installed in the pressure port (lower-left corner) of the steering orbital.
2. Install the 90° end of the supplied hydraulic hose (P/N 214-1000-638) in the open port of the tee fitting.
Installed Pressure
Hose (P/N 214-
1000-638)
Machine’s
Pressure Hose
