Chapter 2: DSM25 Installation 19
• Status LED: Mount the unit where you can view the status LED on the front
fascia. See page 53 for details.
CAUTION: Do Not Remove Transducer Cable when Powered On
Removing the transducer cable from the DSM25 while power is
turned on can cause sparks. As with any electronic device, be sure
the sounder module is mounted where it is well ventilated and
free from gasoline fumes.
2.5 Mounting the Sounder Module
The DSM25 can be mounted either above or below deck using the supplied
hardware. To allow for ease of cable connection, mount the sounder module so
that the cables hang below the unit.
The following figure displays dimensions for the DSM25.
To mount the DSM25:
1. Hold the module in the location where you want to mount it, making sure it is
perpendicular to the deck.
2. Mark the location of the two key holes onto the mounting surface.
Refer to the following figure.

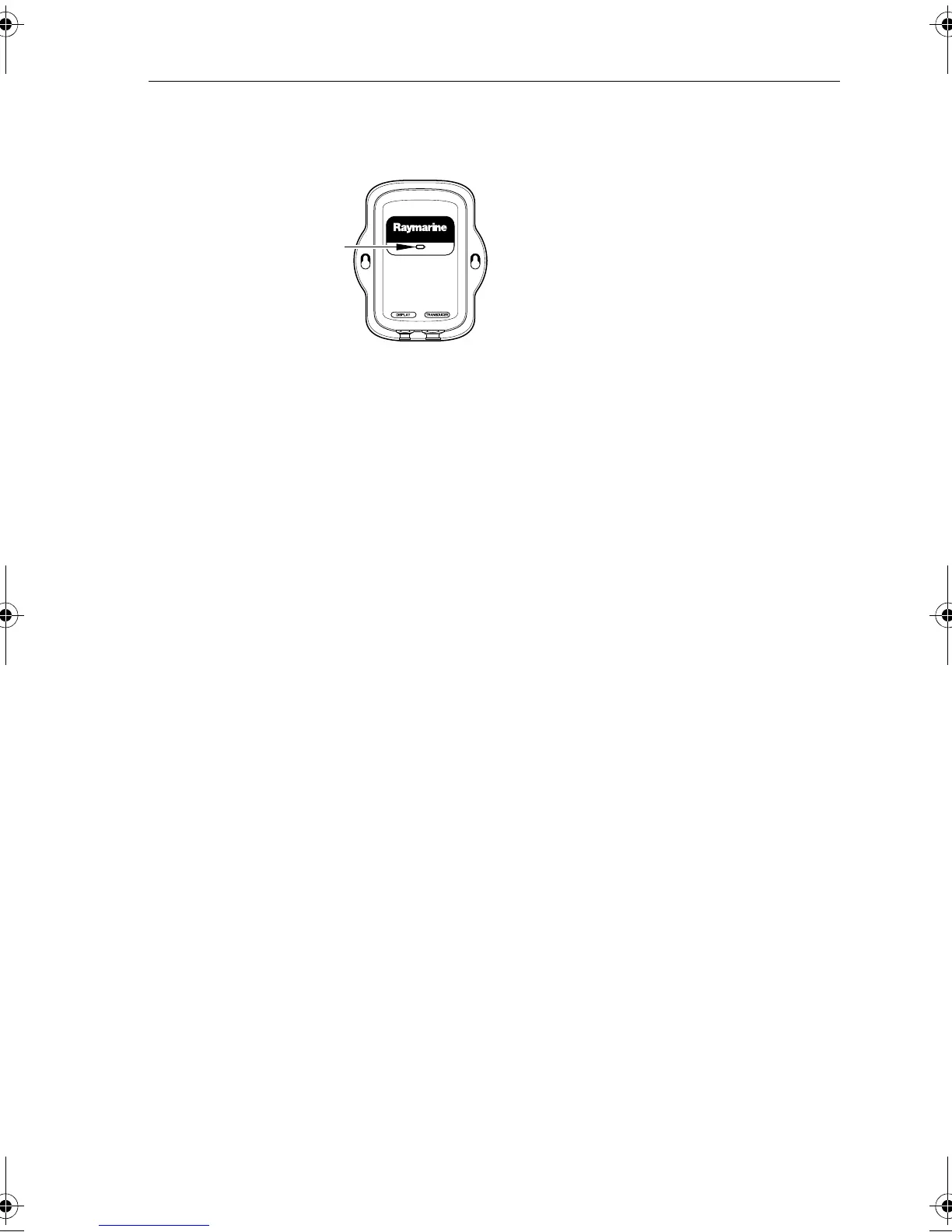

Status LED
D8722-1
