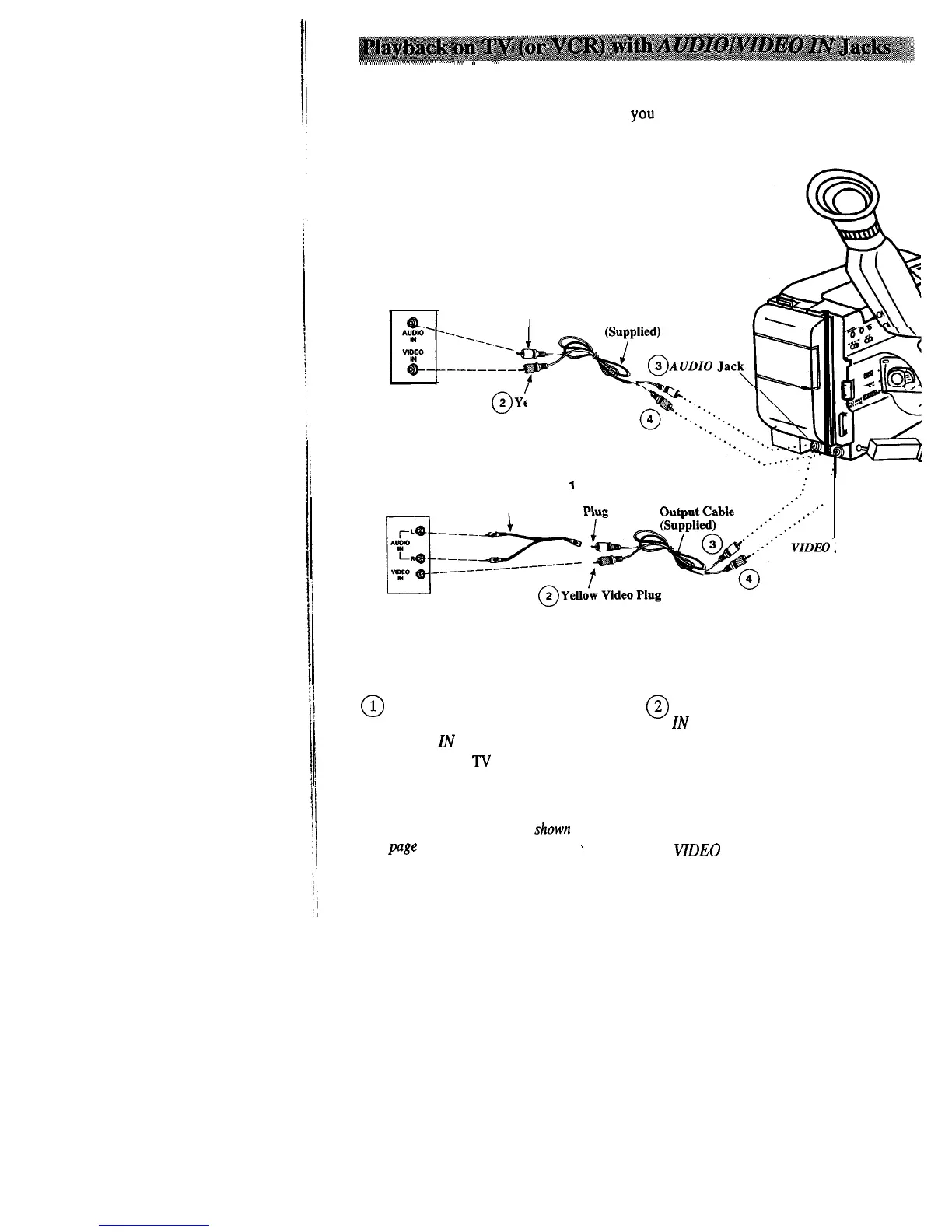

To connect your camcorder
to a TV monitor (or VCR) with
AUDIO/VIDEO
IN jacks,
you will need the audio/video cable that came packed with your camcorder.
If your TV is already connected to a VCR,
YOU
can attach the camcorder to the VCR
and watch what the camcorder is recording or playing on the TV.
Back of
Mono VCR or
TV Monitor
0
1 White
Audio Plug
Audio/Video
Output Cable
c-c
2 Yellow Video Plug
V
-OR-
Back of
Stereo VCR or
Y-Adapter
0
I
White
TV Monitor
(Optional)
Audio Audio/Video
0..
Jack
Installation
@
Attach the white plug on one end of
the audio/video output cable to the
AUDIO
IN
jack on the TV (or VCR).
Note:
If your
TV
(or VCR) has stereo
jacks, attach the white audio
plug to the one labeled MONO. If one is
not labeled
MONO, you
may need a
Y-adapter, such as AH25, shown on
page 3 to hear both channels.
I
46
@
Attach the yellow plug to the VIDEO
IN
jack on the TV (or VCR).
0
3 Attach the white plug on the other end
of the audio/video output cable to the
white AUDIO plug (located under the
small cover) on the back of the
camcorder.
@Attach the yellow plug to the yellow
VlDEO
plug on the camcorder.
(continued on next page)
