24
Tour of the Receiver

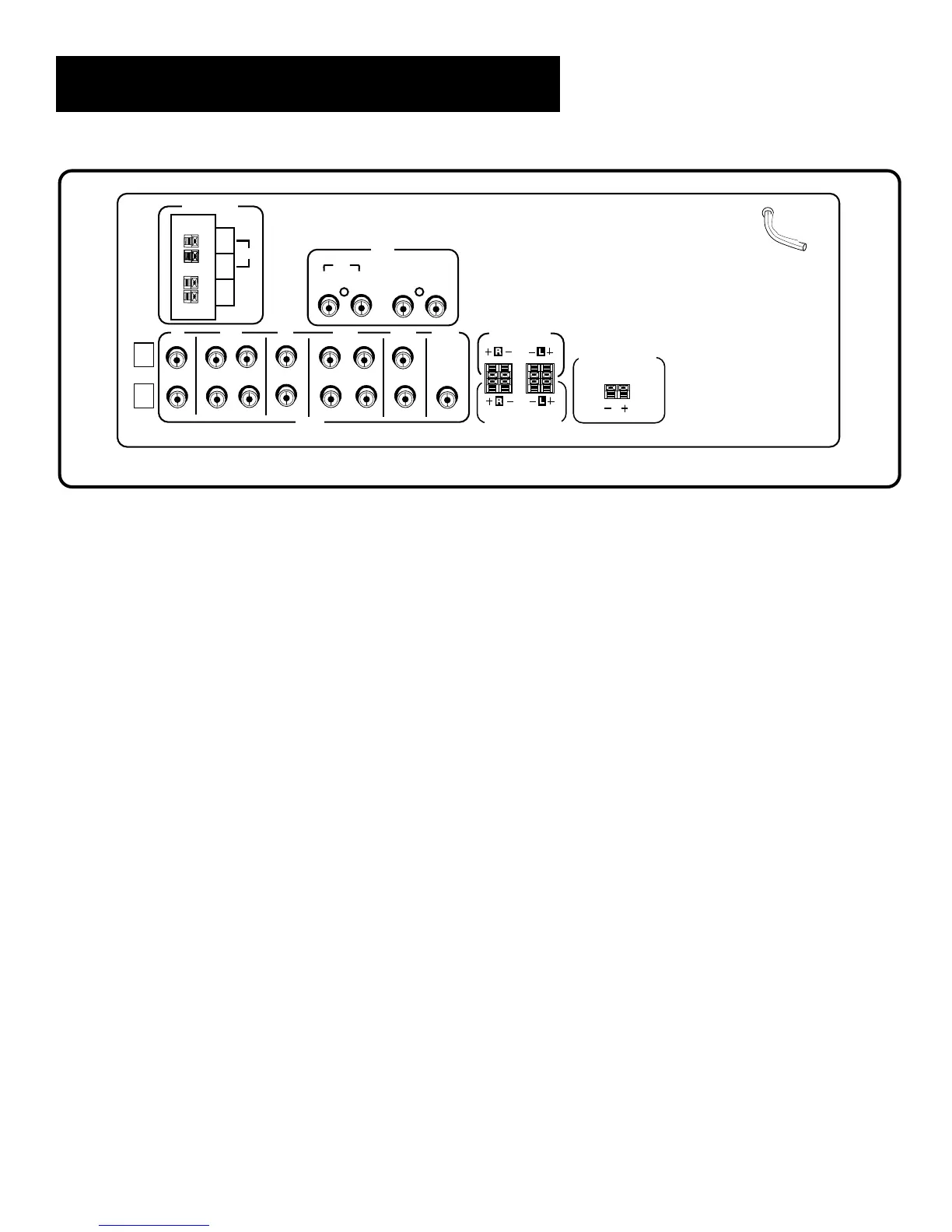

Back Panel
AUDIO Connections Provides audio connections for
components such as a VCR, TV, CD player, laserdisc player or
tape player.
IN Provides audio input from another component.
OUT Sends audio output to another component, such as
a minidisc, tape player or VCR. Sends a signal to
the subwoofer.
VIDEO Connections Provides video connections for the
video portion of another component such as a VCR, TV or
satellite receiver.
IN Provides video input from another video component.
OUT Sends video output to another video component
such as a VCR.
Monitor Out Sends video output to the TV.
REAR SPEAKERS Provides connection for the rear Surround
Sound speakers.
CENTER SPEAKER Provides connection to the center
speaker.
FM Provides connection for an FM antenna.
AM LOOP Provides connection for an AM antenna.
AM
LOOP
FM
CD
TAPE
TV VCR
VIDEO
SUB
WOOFER
IN OUT IN OUT
AUDIO
IN
VCR
OUT
MONITOR
VIDEO
VIDEO
SPEAKERS (8Ω)
REAR SPEAKERS (8 Ω)
R
L
CENTER SPEAKER (8Ω)
ANTENNA
R
L
L
R
IN OUT
