47
Appendix A: Connecting the Receiver
CENTER AND SURROUND Speakers
Connecting Speakers to the Receiver
1. If necessary, remove the vinyl covering from the ends of
the speaker wire and twist the wire.
2. Press down and hold the lever on the
speaker terminal.
3. Insert the wire in the hole. Be sure to connect the (+) to
(+) and the (-) to (-). Otherwise, the speakers will not be
“in phase”, causing reduction in bass frequencies.
4. Release the lever. Pull gently on the wire to make sure
it is secure.
TO CONNECT

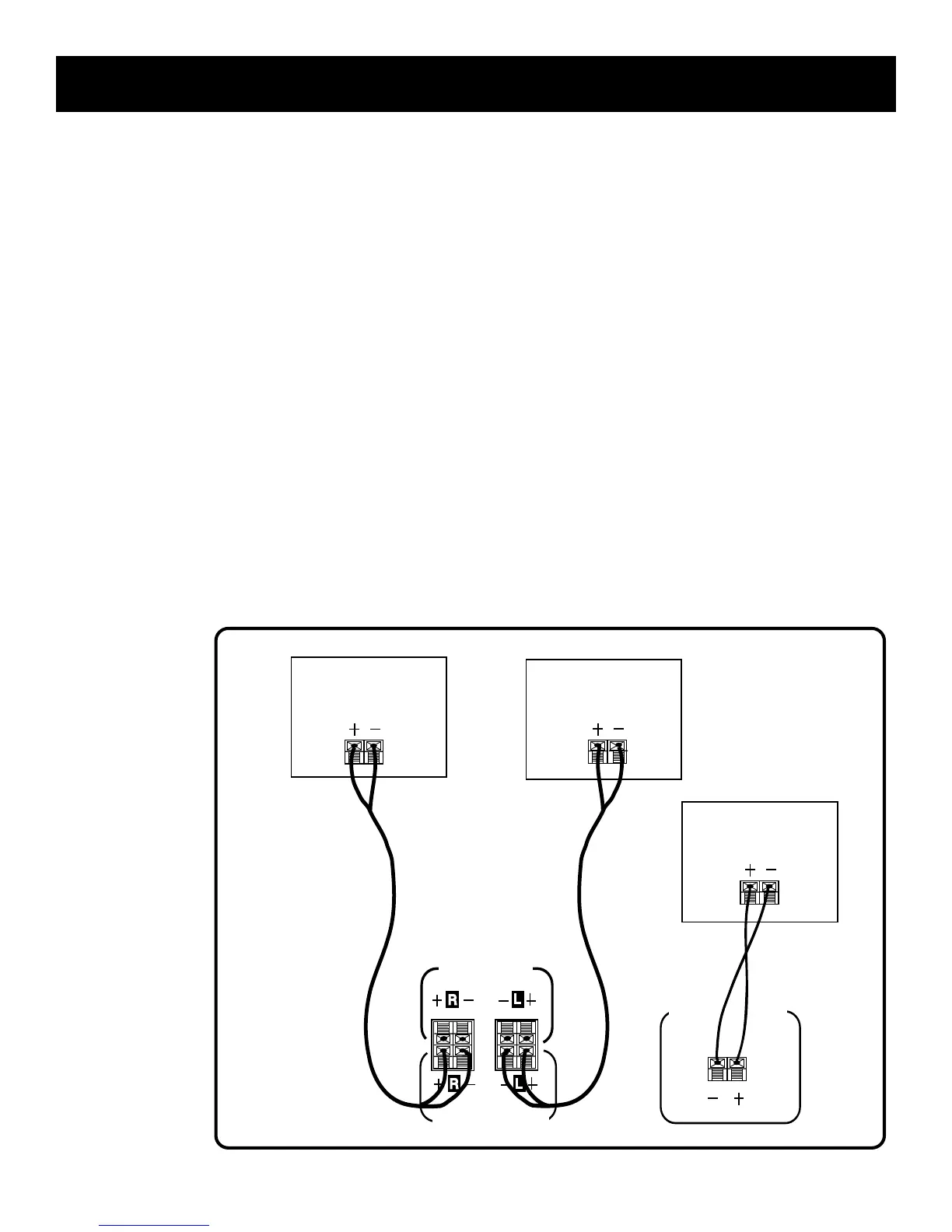

1. Connect the cables as shown in the diagram below.
R
AUDIO
RECEIVER
SURROUND SOUND
SPEAKER
SURROUND SOUND
SPEAKER
CENTER CHANNEL
SPEAKER
SPEAKERS (8Ω)
REAR SPEAKERS (8 Ω)
R
L
CENTER SPEAKER (8Ω)
R
L
To Next Page
