Appendix A: Connecting the Receiver
Do not stack electronic components or other
objects on top of the satellite receiver. The
slots on top of the receiver must be left
uncovered to allow proper airflow to the unit.
Blocking the airflow to the unit could impair
performance or damage your receiver and
other components. Also, do not stack the
satellite receiver on top of a “hot component”
such as an audio power amplifier.
Satellite Receiver
This connection provides
• stereo or surround sound from programs broadcast
in stereo
• stereo sound from the satellite receiver
To use this connection, you
must have
• (1) paired (red/white) stereo cable
• (1) single (yellow) video cable
• (2) coaxial cables
To Connect

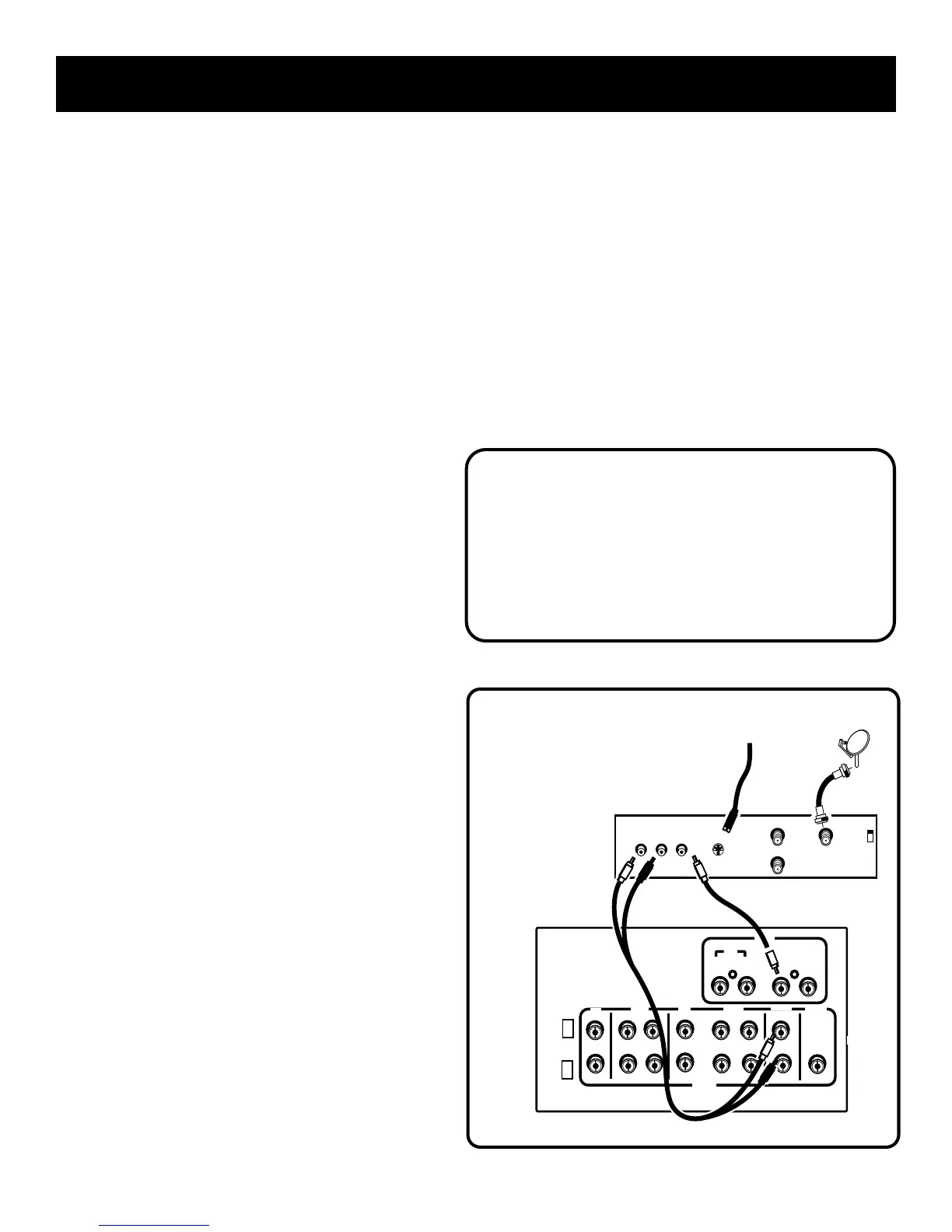

1. Connect the cables as shown in the
diagram below.
Using This Connection
To watch TV programs in stereo
1. Press TV and tune to a channel.
To watch DSS programming
1. Press DSS•CABLE.
2. Tune to a channel.
3. Follow the instructions in the
satellite receiver User’s Guide.
IN OUT
L
R
AUDIO
RECEIVER
RCA DSS
RECEIVER
SATELLITE DIS
H
OUT TO TV
CH3
CH4
L
S-VIDEO
SATELLITE
IN
VIDEOR
AUDIO
IN FROM ANT
TO TV S-VIDEO
CD
TAPE
VCR
VIDEO
SUB
WOOFER
IN OUT OUT
IN
VCR
OUT
MONITOR
VIDEO
VIDEO
