RCA VR678HF User Manual

8
Hooking Up the VCR

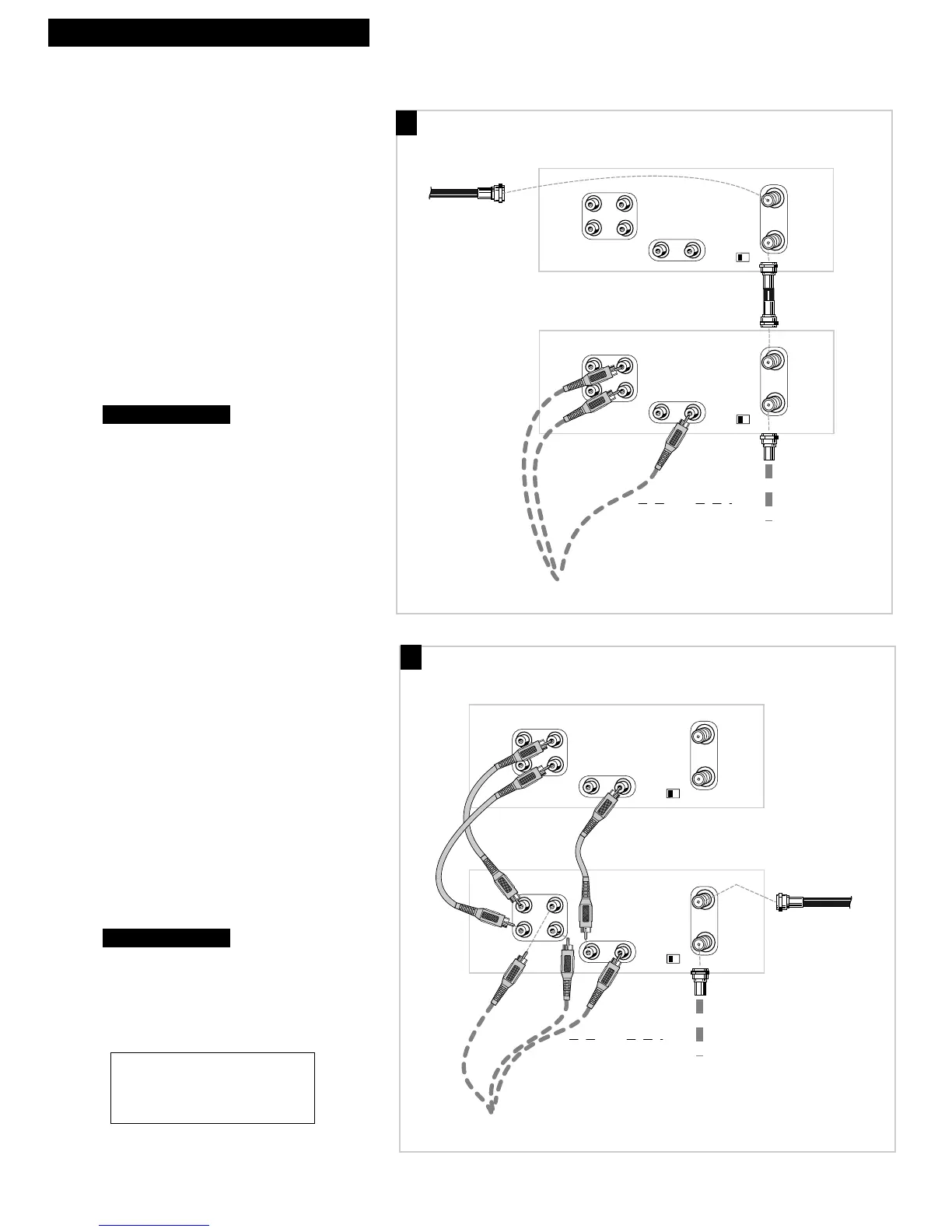

Connecting Two VCRs for Copying Tapes
CH
3 4
AUDIO
VIDEO R
R
L
IN OUT
IN OUT
CH
3 4
AUDIO
VIDEO R
R
L
IN OUT
IN OUT
Playback VCR
RF Coaxial Cable
(supplied)
Recording VCR
Audio/Video
Cables
RF Coaxial
Cable
or
Use the previously selected
hookup to the TV.
From Antenna, Cable
or Cable Box
IN
FROM
ANTENNA
OUT
TO
TELEVISION
IN
FROM
ANTENNA
OUT
TO
TELEVISION
MONO
L
MONO
L
CH
3 4
AUDIO
VIDEO R
R
L
IN OUT
IN OUT
CH
3 4
AUDIO
VIDEO R
R
L
IN OUT
IN OUT
Audio/Video
Cables
From Antenna, Cable
or Cable Box
Playback VCR
Recording
VCR
RF Coaxial
Cable
or
Use the previously selected
hookup to the TV.
Audio/Video
Cables
IN
FROM
ANTENNA
OUT
TO
TELEVISION
IN
FROM
ANTENNA
OUT
TO
TELEVISION
MONO
L
MONO
L
Option A hookup.
Use this hookup for a simple connection which
requires fewer accessories.
1. Select a hookup from pages 2 through 7
and then modify with this connection.
2. Set the CH3 CH4 switch on the playback
VCR to either channel 3 or 4.
You will tune the recording VCR to this channel
to receive the signal from the playback VCR.
3. Connect as shown.
This connection may require additional
accessories not provided.
4. Plug in power cords of VCRs and TV.
5.
Option B hookup.
Use this hookup for slightly improved copy
quality and more convenient operation — use of
TV•VCR button not required.
1. Select a hookup from pages 2 through 7
and then modify with this connection.
2. Connect as shown.
This connection requires additional accessories
not provided.
If your other VCR is not stereo, plug it into the
AUDIO L MONO jack of this VCR to hear sound
from both channels.
3. Plug in power cords of VCRs and TV.
4.
You will select the line (audio/video)
input on the recording VCR to receive the
signal from the playback VCR.
Continue to page 9.
Continue to page 9.
B
A
Caution: The unauthorized recording
of satellite broadcasts, television
programs, or other materials may
infringe the rights of others.
