RCA VR678HF User Manual

3
Hooking Up the VCR
CH
3 4
AUDIO
VIDEO
R
R
L
IN OUT
IN OUT
Back of VCR
Back of TV
300/75 Ohm
Adapter
OR
From Antenna
or Cable
Cable/
Antenna
OR
VHF
UHF
RF Coaxial Cable
(supplied)
75 to 75/300 Ohm
Separator
IN
FROM
ANTENNA
OUT
TO
TELEVISION
MONO
L

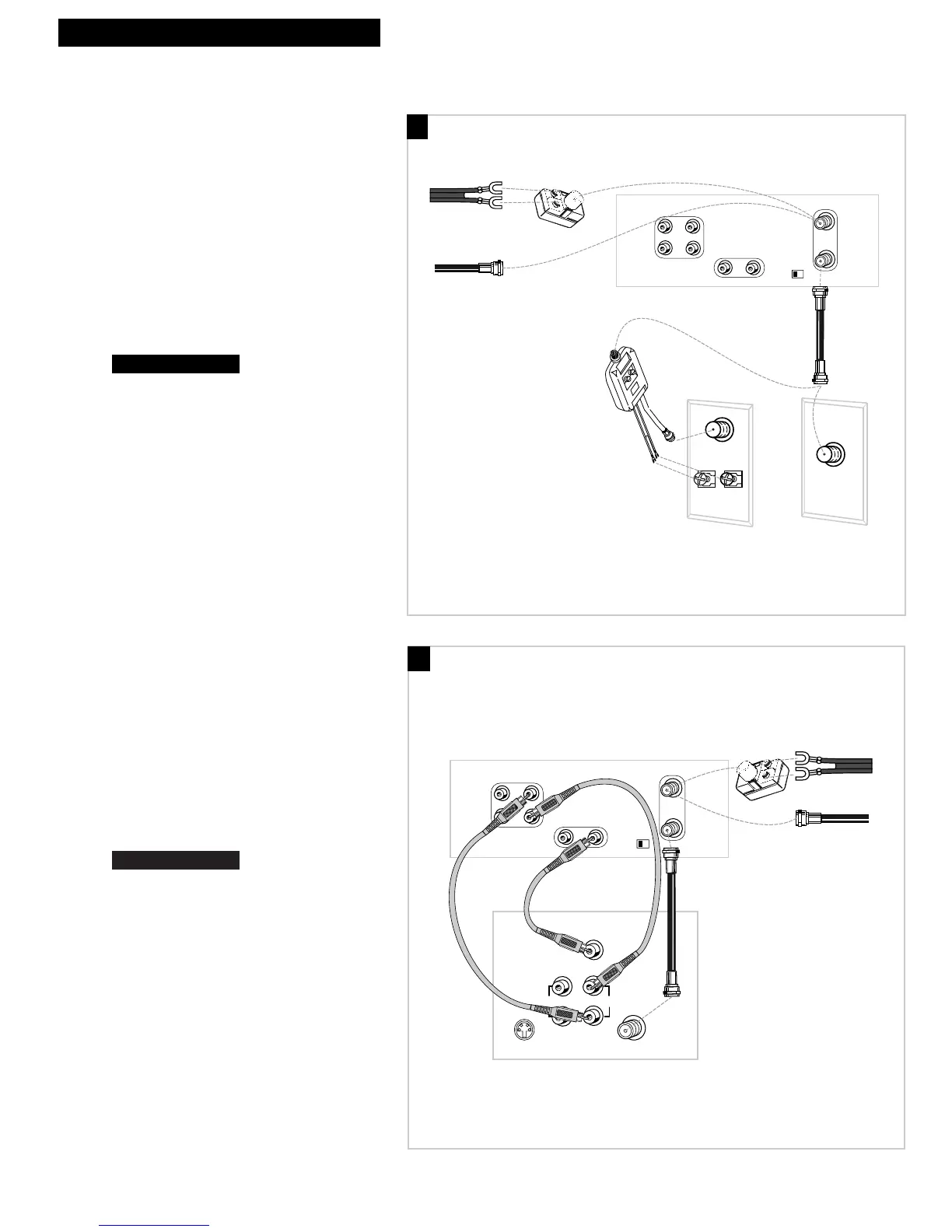

Antenna or Cable System Without a Cable Box
A. Basic hookup.
Use this hookup for a simple connection
which requires fewer accessories.
1. Set the CH3 CH4 switch on back of VCR
to either channel 3 or 4.
You will tune the TV to this channel and use the
TV•VCR button to watch the VCR.
2. Connect as shown.
This connection may require additional
accessories not provided.
3. Plug in power cords of VCR and TV.
4.
B. Advanced hookup.
Use this hookup for slightly improved
picture quality and more convenient
operation — use of TV•VCR button not
required.
1. Connect as shown.
This connection requires additional accessories
not provided.
If your TV is not stereo, you may need a
Y-adapter to hear sound from both channels.
2. Plug in power cords of VCR and TV.
3.
You will tune the TV to its video input to
watch the VCR.
Set the Auto TV/VCR feature to OFF.
See
page 15.
Continue to page 9.
Continue to page 9.
CH
3 4
AUDIO
VIDEO R
R
L
IN OUT
IN OUT
S-VIDEO
AUDIO
CABLE /
ANTENNA
L /
MONO
RIGHT
VIDEO
INPUT
INOUT
Back of TV
Back of VCR
Audio/Video Cables
IN
FROM
ANTENNA
OUT
TO
TELEVISION
From Antenna
or Cable
OR
300/75 Ohm
Adapter
RF Coaxial Cable
(supplied)
MONO
L
A
B
