2 USER GUIDE
2.1.3 Function Switch
1
2
S1
3 4
ON
OFF

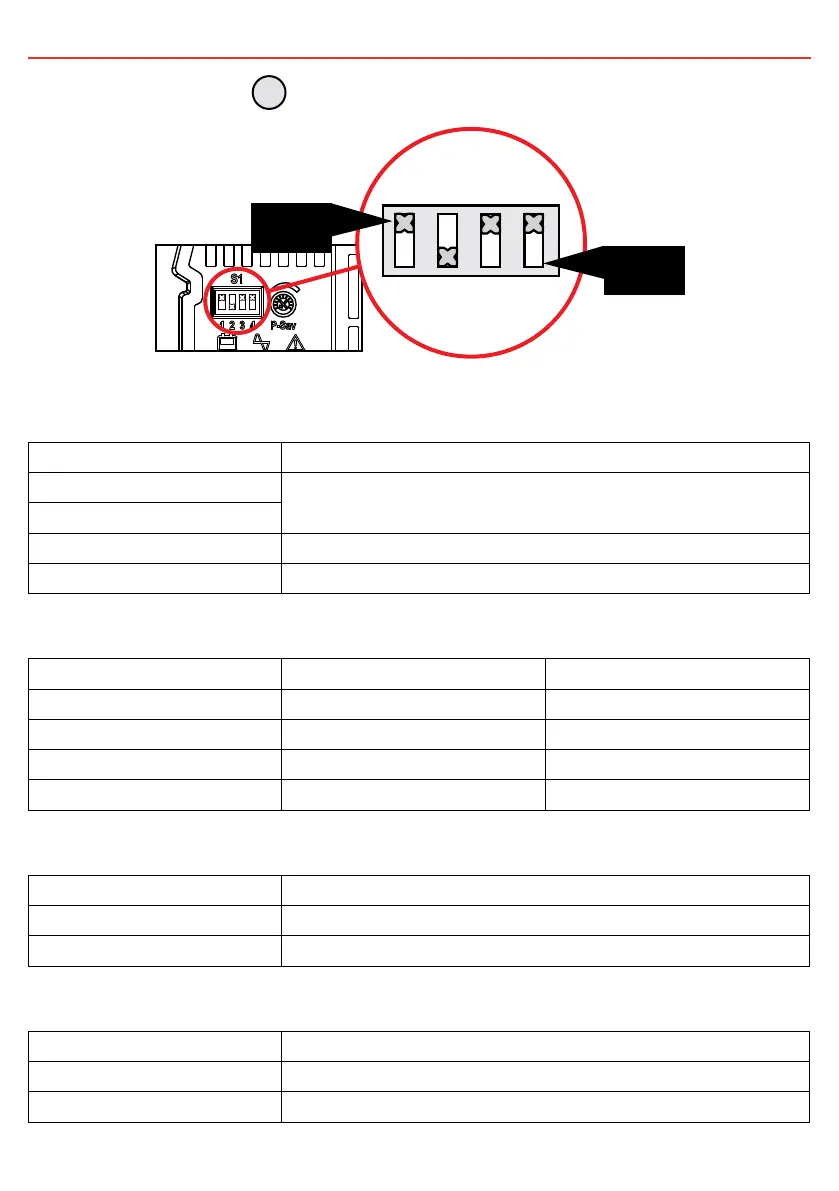

FIGURE 2.1.3.1: Dip Switch ON/OFF Positions
Input Voltage Level:
Dip Switch Function
Switch 1
Output Voltage Select
Swtich 2
Switch 3 Frequency Select
Switch 4 Power Saving mode Select
Output Voltage Selection (Switches 1 and 2):
Output Voltage Switch 1 Switch 2
100V OFF OFF
110V ON OFF
115V OFF ON
120V ON ON
Output Frequency (Switch 3):
Frequency (Hz) Switch 3
50Hz OFF
60Hz ON
Power Saving mode Select:
Power Saving Function Switch 4
Power Saving OFF OFF
Power Saving ON ON
