3 INSTALLATION
WARNING
REVERSE POLARITY CONNECTION WILL BLOW THE INTERNAL FUSE AND MAY CAUSE PERMANENT DAMAGE TO THE
INVERTER.
RISK OF FIRE. THESE INVERTERS CAN DRAW VERY LARGE DC CURRENTS. A BATTERY TYPE AND CONFIGURATION
MUST BE SELECTED THAT CAN SAFELY AND RELIABLY SUPPLY BOTH THE STEADY STATE AND PEAK TRANSIENT
CURRENTS DRAWN BY THE INVERTERS. THIS MAY REQUIRE MULTIPLE BATTERIES TO BE CONNECTED IN PARALLEL
AND BE WIRED TO SHARE CURRENT EQUALLY. THE SELECTION OF BATTERIES AND WIRING MUST BE DONE BY A
SUITABLE QUALIFIED PERSON.
3.4 Chassis Ground Connection
Connect Chassis Ground Terminal to the ground of vehicle, this applies to all negative ground vehicles.
Chassis Ground must be connected to the ground of vehicle prior to making any other connections
to the inverter.

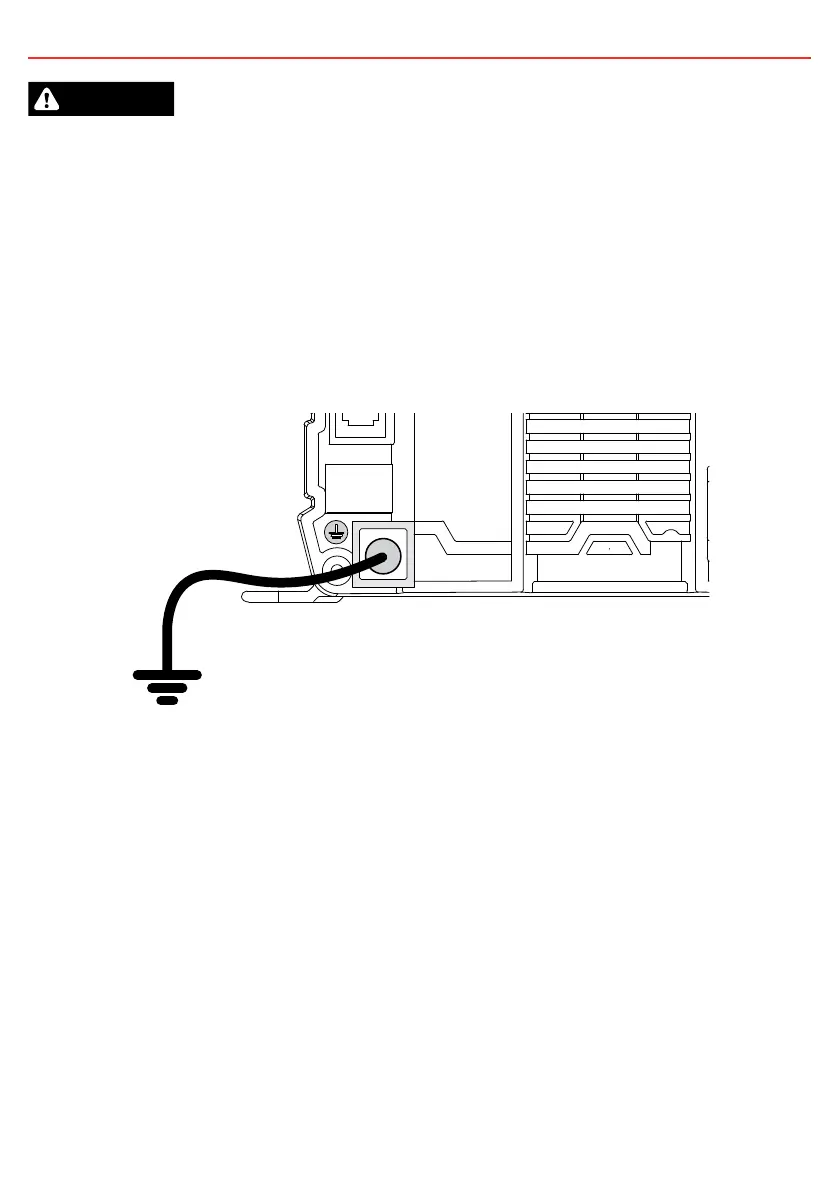

FIGURE 3.4.1: Chassis Ground Connection
