2 USER GUIDE
2.1.4 Power Saving Load Adjustment

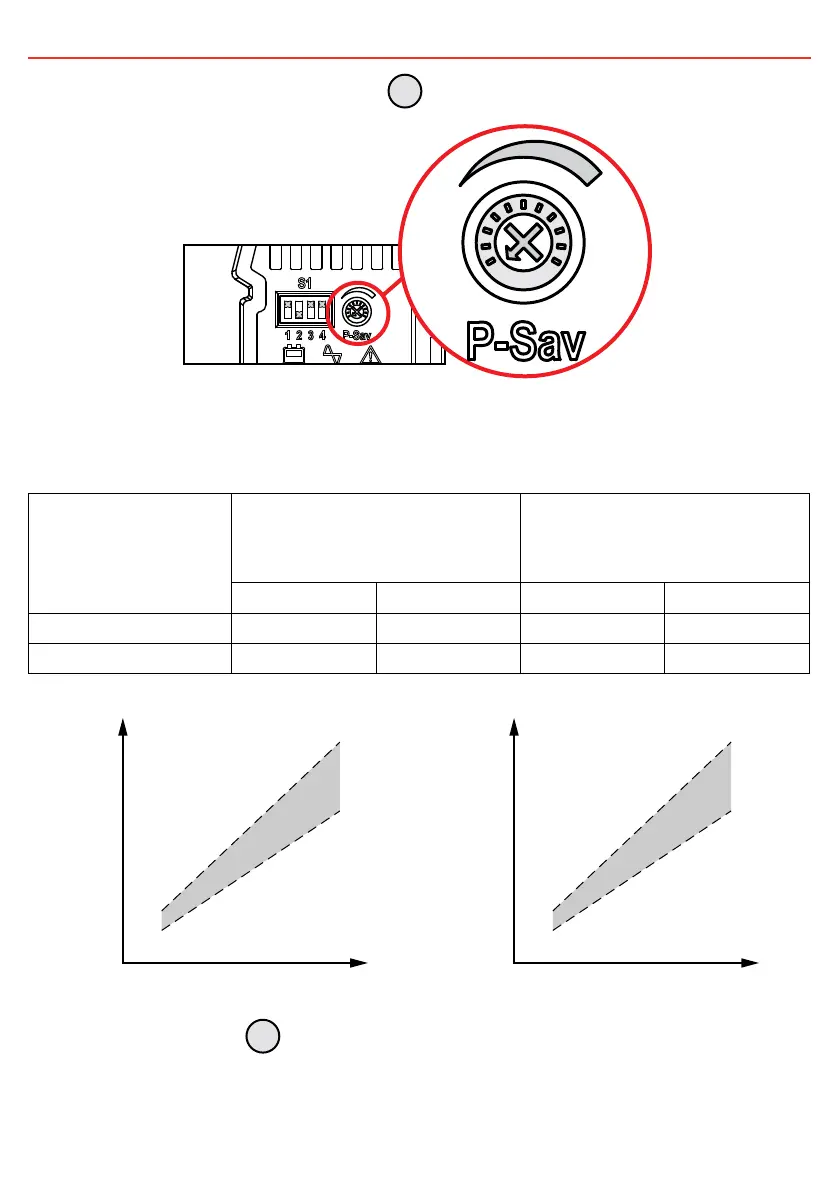

FIGURE 2.1.4.1: Power Saving Load Adjustment
The user can adjust the potentiometer to set the input sleep and wake-up thresholds according to the
load applied. The setting range is shown below:
Model
Minimum
(Potentiometer turned fully
anti-clockwise)
Maximum
(Potentiometer turned fully
clockwise)
Sleep Power Wake Up Power Sleep Power Wake Up Power
1000/1500/2000W <20W >40W <110W >160W
3000W <40W >60W <240W >280W
Potentiometer Rotation
Wake Up Power
Sleep Power
Anti-Clockwise
160
40
110
20
Clockwise
Power (W)
1000−2000 W Models
(min) (max)
Potentiometer Rotation
Wake Up Power
Sleep Power
Anti-Clockwise
280
60
240
40
Clockwise
Power (W)
3000 W Models
(min) (max)
2.1.5 TRC Port (RJ45)
Not currently used.
