Renesas RA Family EK-RA6M5 v1 – User's Manual
R20UT4829EG0100 Rev. 1.00 Page 19 of 34
Mar.15.21
5.3 Ecosystem
The System Control and Ecosystem area provides users the option to simultaneously connect several 3
rd
party add-on modules compatible with four most popular ecosystems using the following connectors:
1. Two Seeed Grove
®
system (I2C) connectors
2. SparkFun
®
Qwiic
®
connector
3. Two Digilent Pmod™ (SPI and UART) connectors
4. Arduino™ (Uno R3) connector
5. MikroElektronika™ mikroBUS connector
5.3.1 Seeed Grove
®
Connectors
5.3.1.1 Grove 1
A Seeed Grove I2C connector is provided at J27. The RA MCU acts as a two-wire serial master, and a
connected module acts as a two-wire serial slave.
Table 10. Grove 1 Connector
Grove 1 Connector
EK-RA6M5
Pin
Description
Signal/Bus
J27-1
SCL
P415 (SCL2)
J27-2
SDA
P414 (SDA2)
J27-3
VCC
+3.3 V
J27-4
GND
GND
5.3.1.2 Grove 2
A Seeed Grove I2C connector is provided at J28. The RA MCU acts as a two-wire serial master, and a
connected module acts as a two-wire serial slave. Alternatively, this port can be configured to support two
analog (ADC) inputs.
The pull-up resistors, R11 and R79, must be fitted when using I2C and removed when using as analog.
Table 11. Grove 2 Connector
Grove 2 Connector
EK-RA6M5
Pin
Description
Signal/Bus
J28-1
SCL / AN
P505 (SCL6/AN121)
J28-2
SDA / AN
P506 (SDA6/AN121)
J28-3
VCC
+3.3 V
J28-4
GND
GND

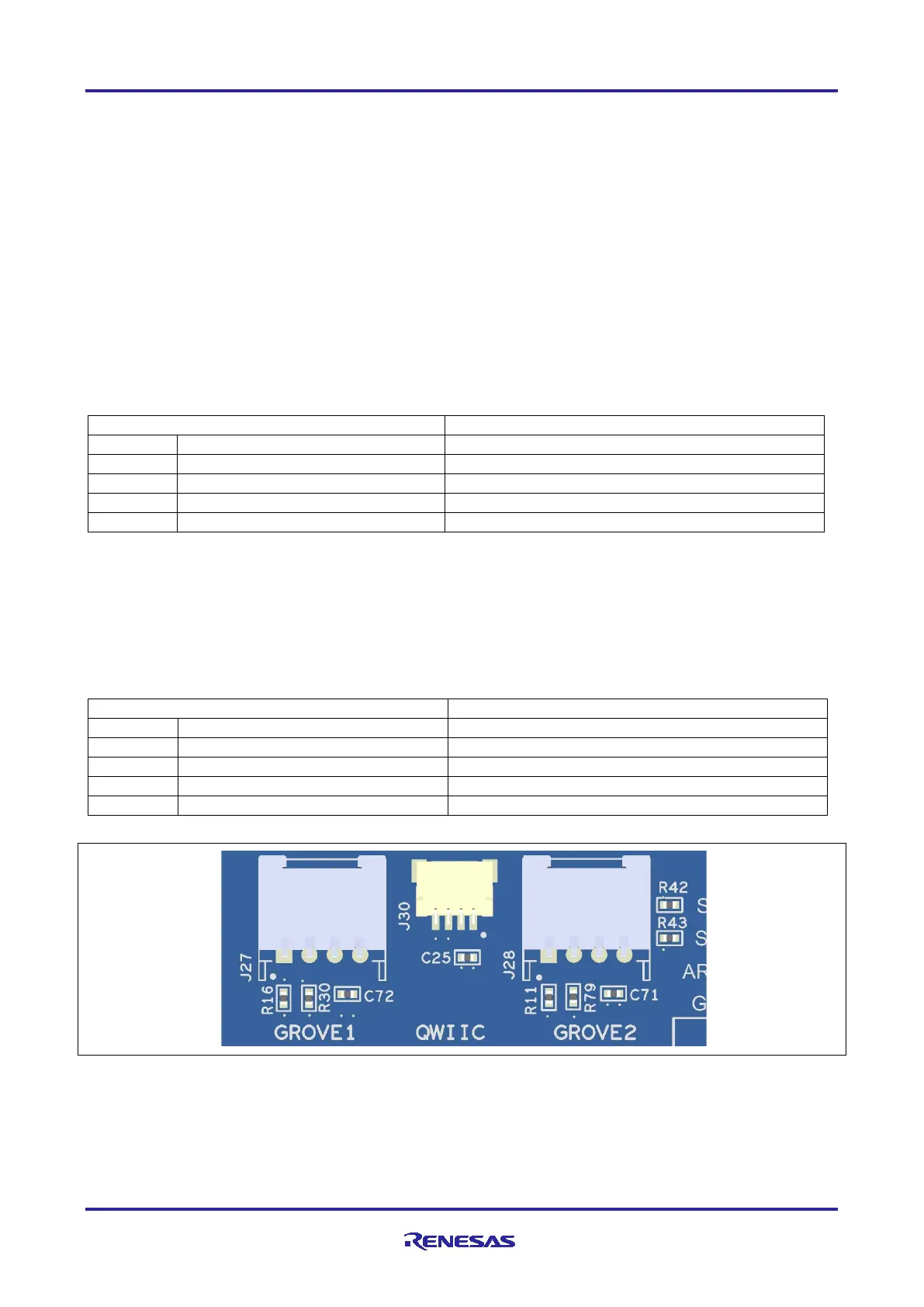

Figure 10. Seeed Grove and SparkFun
®
Qwiic Connectors
