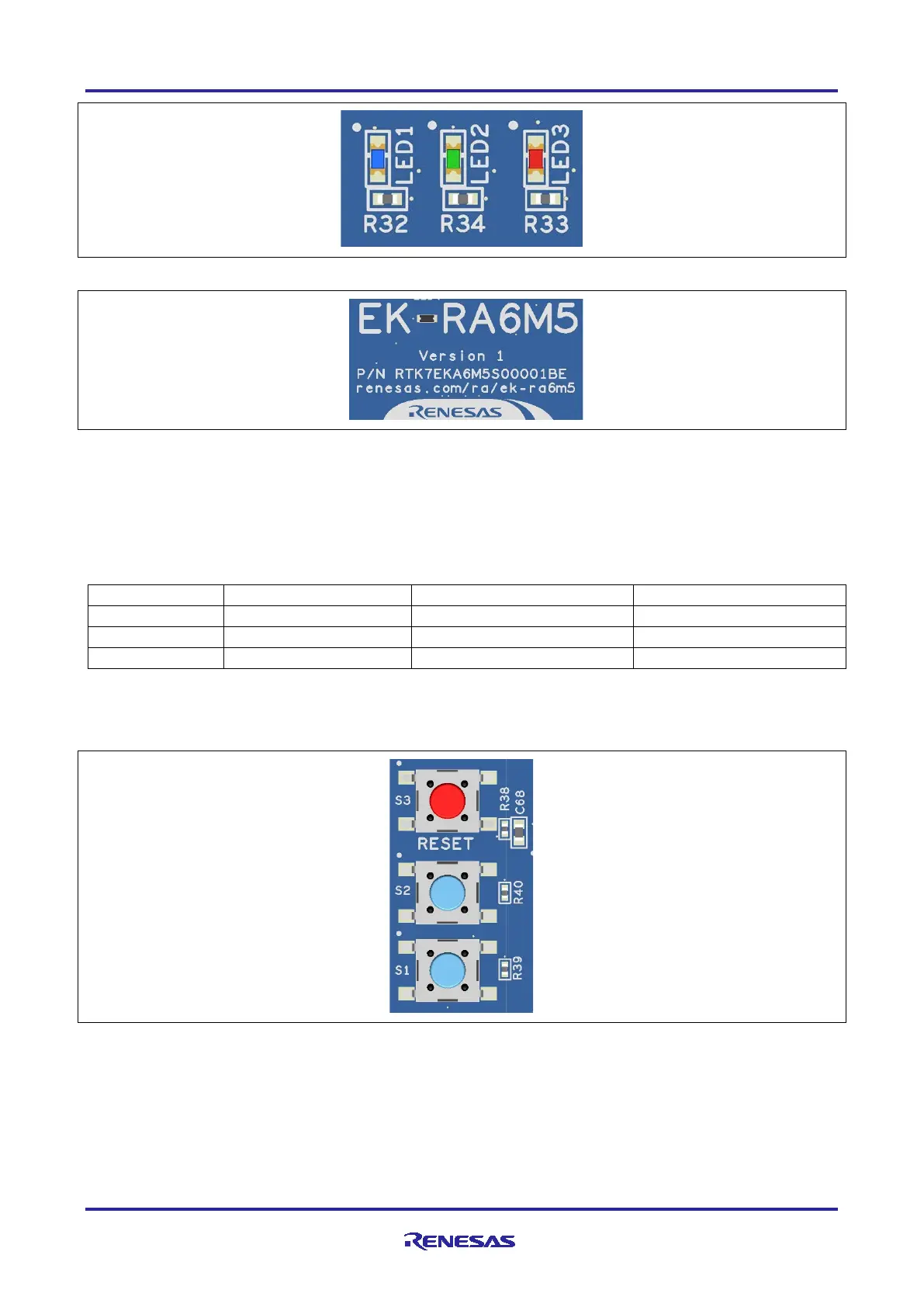

Figure 16. User LEDs
Figure 17. Power LED
5.5.2 User and Reset Switches
Three miniature, momentary, mechanical push-button type SMT switches are mounted on the EK-RA6M5
board.
Pressing the Reset switch (S3) generates a reset signal to restart the RA MCU.
Table 19. EK-RA6M5 Board Switches
Designator
Function
MCU Control Port
Button Color
S3
MCU Reset Switch
RESET#
Red
S2
User Switch
P004 (IRQ9-DS)
Blue
S1
User Switch
P005 (IRQ10-DS)
Blue
The User Switches S1 and S2 may be isolated from the Main MCU, so the associated ports can be used for
other purposes. To separate S1 from P005, Trace Cut Jumper E31 must be open. To separate S2 from
P004, Trace Cut Jumper E32 must be open.
Figure 18. Reset and User Switches
5.5.3 MCU Boot Mode
A two-pin header (J16) is provided to select the Boot mode (P201) of the RA MCU. For normal operation, or
Single-Chip mode, leave J16 open. To enter SCI Boot mode or USB Boot mode, place a jumper on J16.
