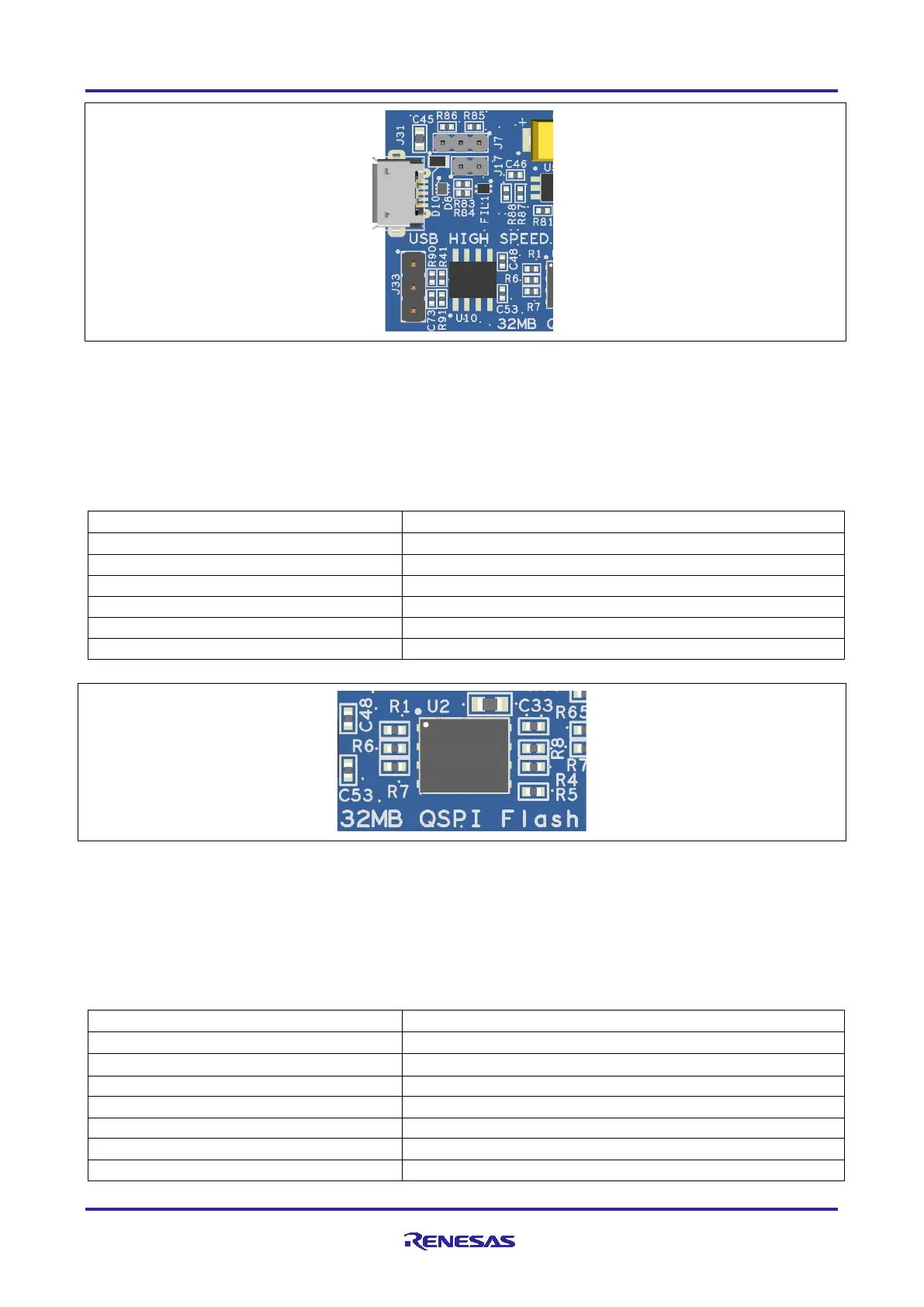

Figure 22. USB High Speed Connector
6.3 Quad-SPI Flash
Included on the EK-RA6M5 board is a Macronix 256 Mb (32 MB) serial flash Quad-SPI memory
(MX25L25645G). The Quad-SPI serial flash device (U2) connects to the Quad-SPI peripheral on the RA
MCU and defaults to standard SPI mode initially. The flash memory is enabled for XIP (Execute-in-place)
mode directly after power-on.
Table 23. Quad-SPI Flash Port Assignments
Quad-SPI Signal Description
EK-RA6M5 Port
Quad-SPI CS#
P306
Quad-SPI CLK
P305
Quad-SPI DQ0
P307
Quad-SPI DQ1
P308
Quad-SPI DQ2
P309
Quad-SPI DQ3
P310
Figure 23. Quad-SPI Flash
6.4 Octo-SPI Flash
Included on the EK-RA6M5 board is a Macronix 512 Mb (64 MB) Octal serial flash memory
(MX25LM51245GM). The Octo-SPI serial flash device (U3) connects to the Octo-SPI peripheral on the RA
MCU and defaults to standard SPI mode initially. The flash memory is enabled for XIP (Execute-in-place)
mode directly after power-on.
Table 24. Octo-SPI Flash Port Assignments
Quad-SPI Signal Description
EK-RA6M5 Port
Octo-SPI CS#
P602
Octo-SPI RESET#
P615
Octo-SPI SCLK
P100
Octo-SPI DQS
P104
Octo-SPI DQ0
P106
Octo-SPI DQ1
P102
Octo-SPI DQ2
P601
