Renesas RA Family EK-RA6M5 v1 – User's Manual
R20UT4829EG0100 Rev. 1.00 Page 24 of 34
Mar.15.21
Table 17. USB Full Speed Connector
USB Full Speed Connector
EK-RA6M5
Pin
Description
Signal/Bus
J11-1
+5 VDC
+5VUSB (Host Mode) *1
P407/USBFS_VBUS = 2/3 of +5VUSB at J11 *2
J11-2
Data-
USB_DM
J11-3
Data+
USB_DP
J11-4
USB ID, jack internal switch, cable inserted
N.C.
J11-5
Ground
GND
*1 When J12 is linked 1-2 and J15 is open
*2 When J12 is linked 2-3 and J15 is open

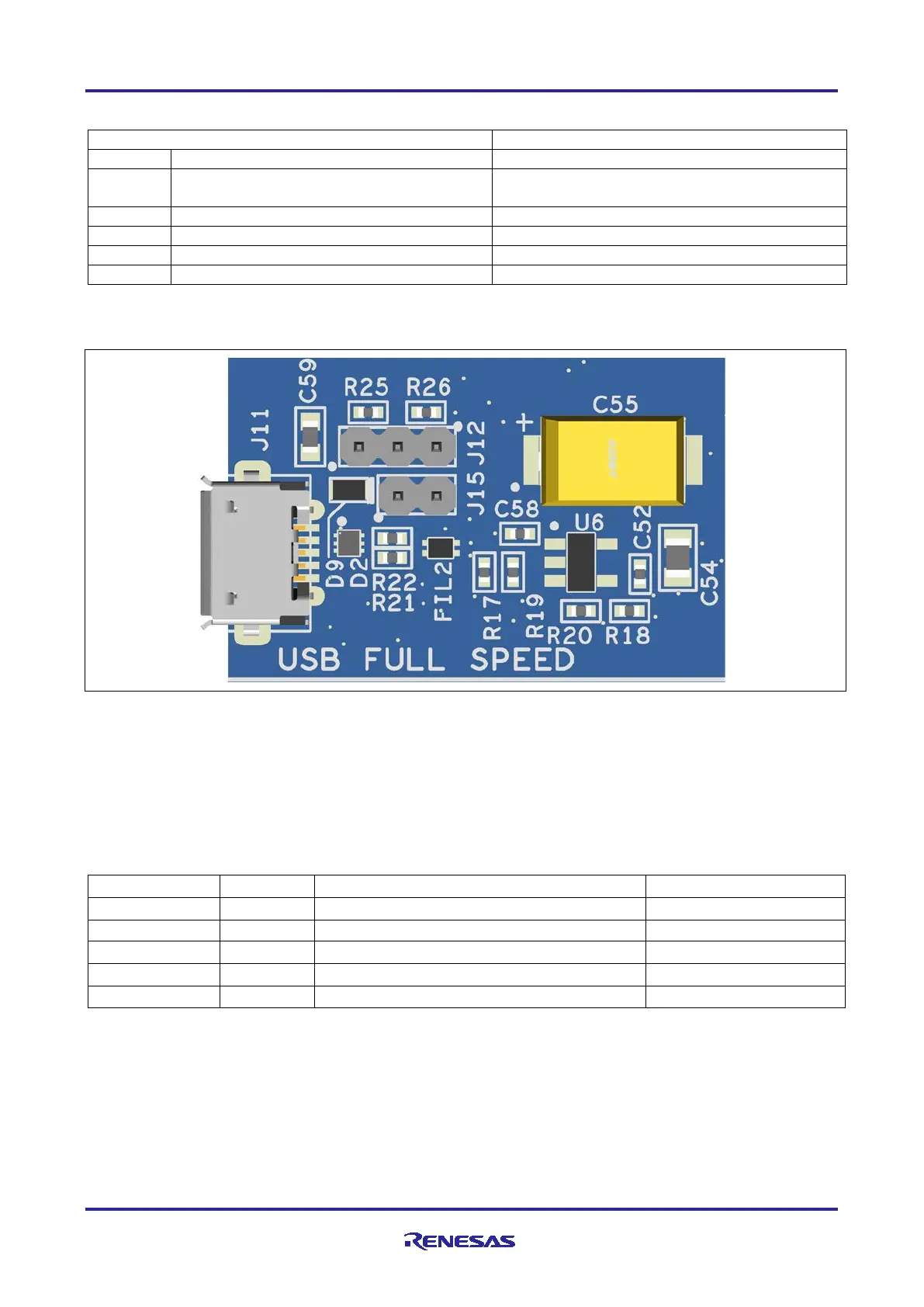

Figure 15. USB Full Speed Connector
5.5 Miscellaneous
5.5.1 User and Power LEDs
5 LEDs are provided on the EK-RA6M5 board. In addition, the Ethernet connector has built-in link status and
link speed LEDs.
Behavior of the LEDs on the EK-RA6M5 board is described in the following table.
Table 18. EK-RA6M5 Board LED Functions
Designator
Color
Function
MCU Control Port
LED1
Blue
User LED
P006
LED2
Green
User LED
P007
LED3
Red
User LED
P008
LED4
White
Power on indicator
+3.3V
LED5
Yellow
Debug LED
J-Link OB MCU
The User LEDs may be isolated from the Main MCU, so the associated ports can be used for other
purposes. To separate LED1 from P006, Trace Cut Jumper E27 must be open. To separate LED2 from
P007, Trace Cut Jumper E26 must be open. To separate LED3 from P008, Trace Cut Jumper E28 must be
open.
