RZ Family / RZ/G, RZ/A Series 4. Parallel to HDMI Converision Board
R01UH0990EJ0101 Rev.1.01 Page 74 of 83
Jul 28, 2022
4.4 Component Layout
Figure 4.8 shows the layout of main components of the Parallel to HDMI Conversion Board.

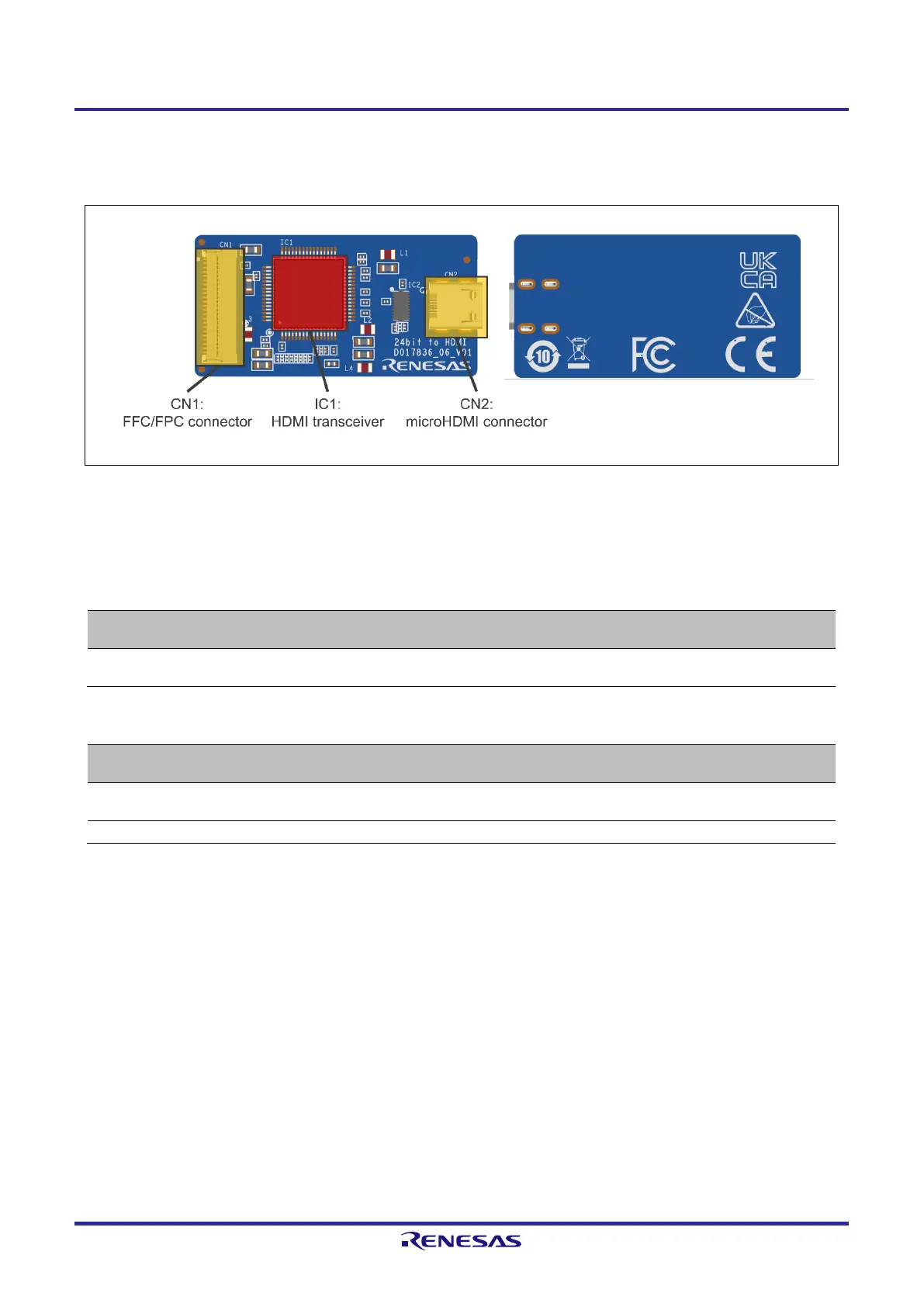

Figure 4.8 Layout of Components of the Parallel to HDMI Conversion Board (Top and bottom View)
Table 4.2 and Table 4.3 list main components mounted on the Parallel to HDMI Conversion Board.
Table 4.2 Main Components on the Parallel to HDMI Conversion Board (1) IC
Component
Number
Component Name
Type (Manufacturer)
Recommended Optional
Components
IC1
HDMI Transmitter
ADV7513BSWZ
(Analog Devices)
Table 4.3 Main Components on the Parallel to HDMI Conversion Board (2) Connector
Components
Number
Component Name
Type (Manufacturer)
Recommend Optional Parts
CN1
FFC/FPC connector
(45pin)
FH23-45S-0.3SHAW(05)
(HIROSE)
CN2
microHDMI connector
46765-1301 (Molex)
