IKONIC Tankless Water Heater Service Manual
10

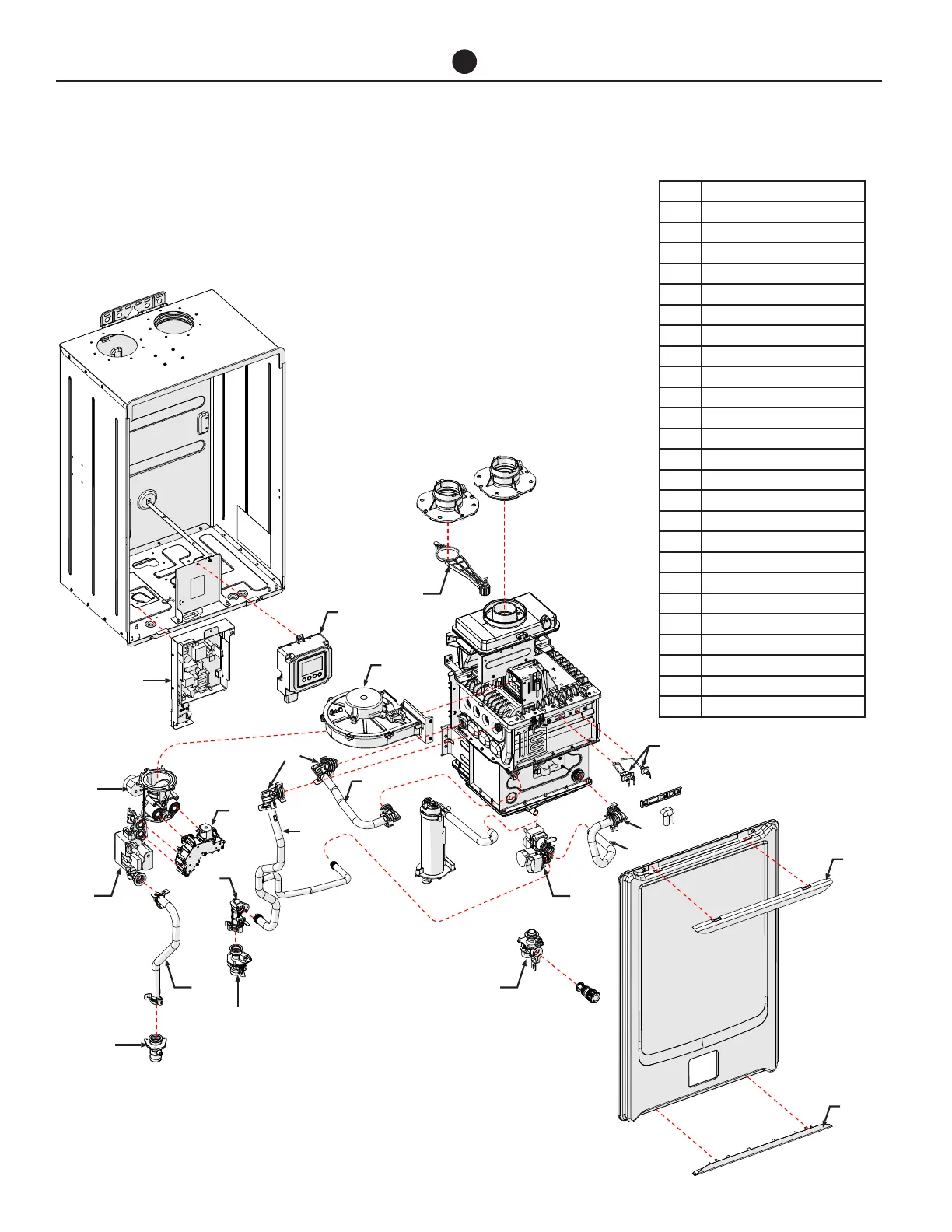

GENERAL INFORMATION
Ref # Description
1 Control Board
2 Gas Valve
3 Blower Assembly
4 Venturi
5 Gas Inlet Connector
6 Water Control Valve
7 Water Inlet Connector
8 Inlet Water Filter
9 Hot Outlet Connector
10a Display Assembly "Non- WiFi"
10b Display Assembly "WiFi"
11 Condensate Trap
12 Air Intake Connector
13 Flue Connector
14 Front Cover
15 Gas Orifice Block
16 Gas Inlet Pipe
17 Air Filter
18 Igniter and Flame Rod
19 Plastic Screw Covers
20 Elbow Connection
21 Inlet Pipe B
22 Inlet Pipe R
23 Water Outlet Pipe
24 Water Outlet Elbow
5
2
15
4
3
10
20
20
22
20
21
23
24
12
13
14
11
6
7
17
18
19
19
8
9
16
DIRECT-VENT GAS COMPONENTS
1
