USER INTERFACE AND OPTIONS
TANKLESS CONFIGURATION
This section is applicable for pump built in models, and
standard models with an external pump following the
pump installation described in this Use and Care manual.
If the external pump is installed independently from the
water heater, this section is not applicable. For recircula-
tion setting, timer mode, schedule mode, and on demand
mode are available. Timer mode also has Performance
mode and Energy Saver mode. Read next several pages
to set most suitable mode. Contact service department if
additional help is needed.
RECIRCULATION - TIMER MODE

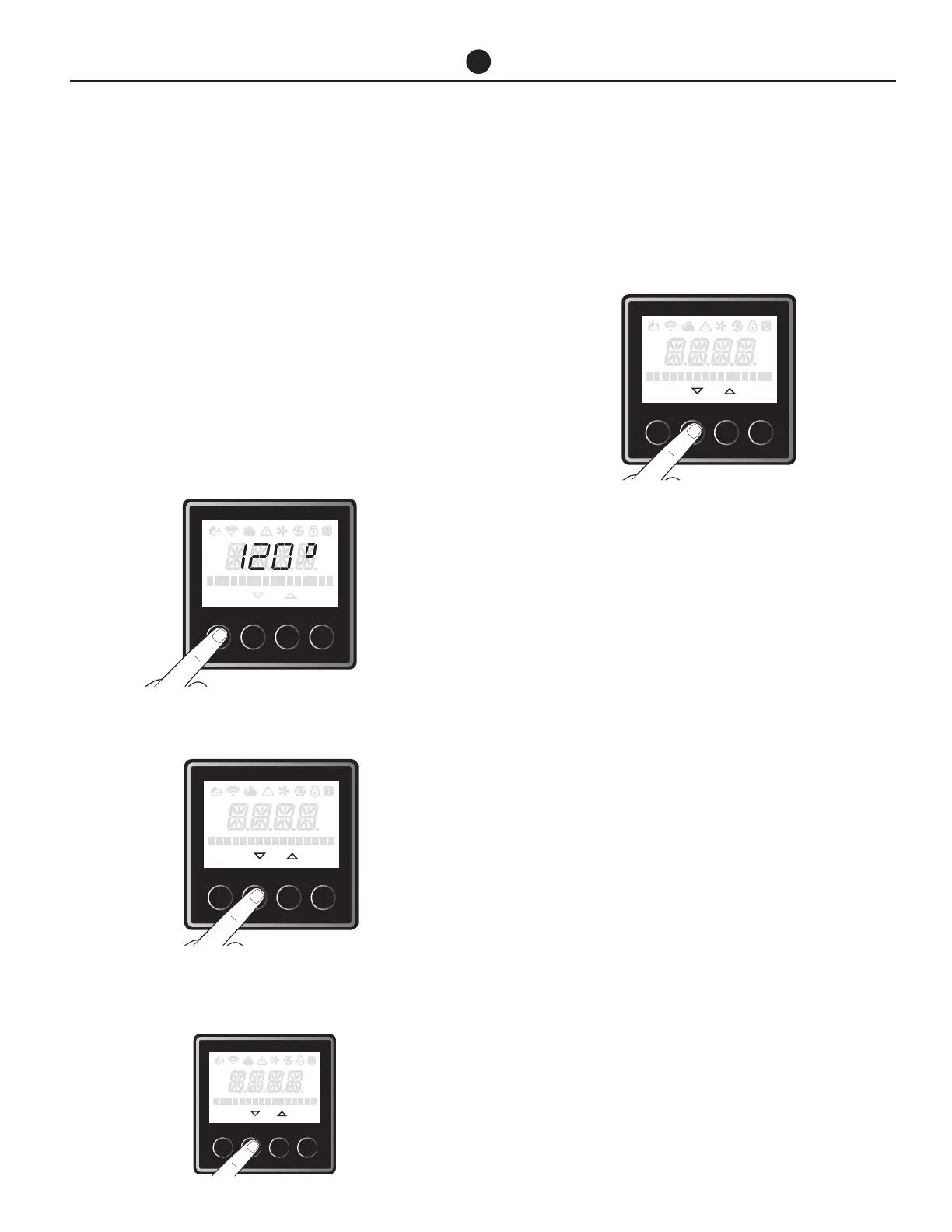

1. Press the “SETTINGS” button.
2. Press the “▼” or “▲” button until “Tankless Cong”
is displayed, and press “ENTER” button to conrm.
3. Press “▼” or “▲” button until "Recirc Pump Mode" is
displayed, and press "ENTER" button to change the
setting.
4. The Factory setting is “None”. Press the “▼” or “▲”
button to select “Timer Perf” or “Timer E Saver” and
press “ENTER” to conrm. To exit this setting, press
“BACK” button until the Home screen is displayed.
TIMER MODE RECIRCULATION
OPERATION
The water heater is turned ON when the recirculation
pump starts operation. The water heater produces hot
water at the setting temperature. When the return water
temperature reaches approximately 15°F below the set-
ting temperature, the water heater and the pump will turn
OFF.
The cycle will restart at the approximate time based on
the temperature thermistor readings.
PERFORMANCE MODE (TIMER PERF)
The performance mode operates as below;
• Higher energy consumption due to more pump cy-
cles.
• Pump cycles ON Every 15 to 30 minutes.
ENERGY SAVER MODE (TIMER E SAVER)
The Energy Saver mode operates as below;
• Less energy consumption due to less pump cycles.
• Pump cycles ON Every 30 to 60 minutes.
