IKONIC Tankless Water Heater Service Manual
79

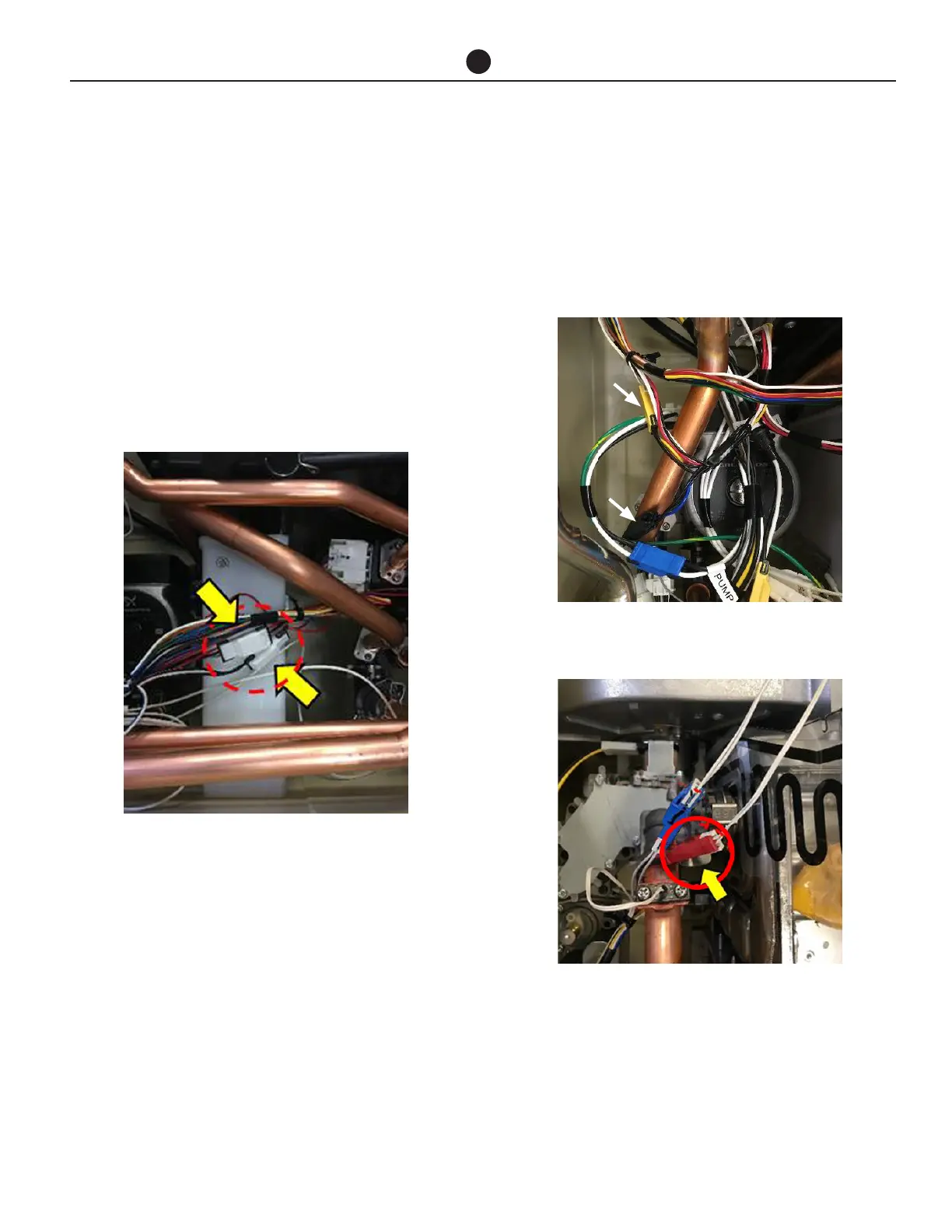

1. Remove connector “I” from control board.
2. Remove display, and control board with bracket from
water heater.
NOTE: To remove control board with bracket, refer to
section “Display” and “Control board”.
3. Remove the two (2) WHITE Molex connectors locat-
ed at the front of the condensate trap.
4. Remove BLACK Molex connector connected to outlet
thermistor and YELLOW Molex connector connected
to heat exchanger thermistor.
5. Remove RED connector connected to exhaust therm-
istor.
HOW TO REMOVE COMPONENTS
THERMISTOR WIRING HARNESS
