Once you have completed all the Rhino Panic Pack details, click on the “OK” button. The new
customer is created and opened ready for editing.
Communication Setup
Before attempting to connect with the Rhino Panic Pack, you must ensure the communication
settings in the Rhino UDL software is set up correctly.

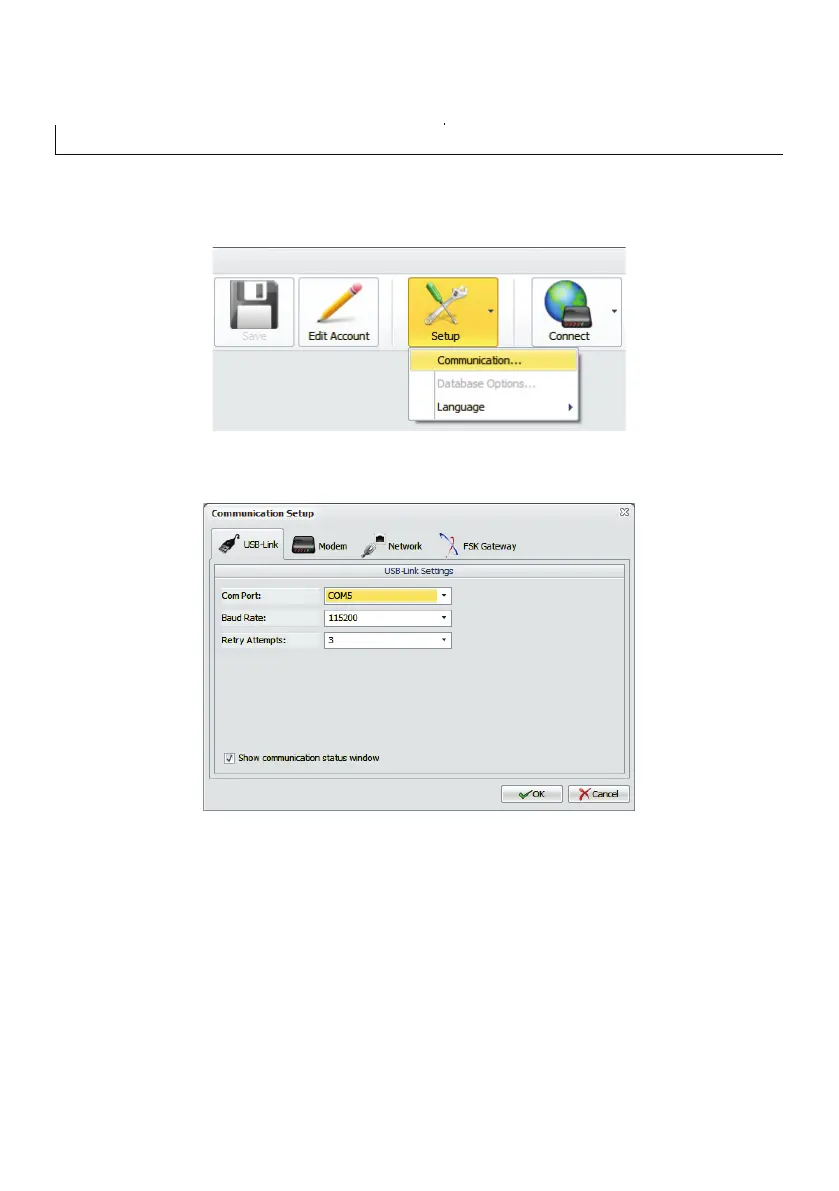

Click on the “Setup” button on the main toolbar:
From the dropdown menu select the “Communication...” option. The “Communication Setup” dialog
is displayed:
USB-Link
This page is used for configuring the serial adaptor (FUSA) for local connection to the Rhino Panic
Pack.
Com Port
From the dropdown list select the Com Port that the serial adaptor is using. In most cases there will
only be one port listed. If you have multiple ports listed, try the first and if it fails, try the next, etc.
Baud Rate
The baud rate setting is 115200.
Retry Attempts
If during normal communications a packet of data is corrupted, the Rhino UDL software will retry
sending the packet. If it continues to fail and once it has retried all its attempts (e.g. 3 times), the
communication link is closed.
14
