Control Panel
This section introduces the names and functions of the components on the control panel.
• Do not turn off the main power switch while the operation switch indicator is lit or blinking. Doing so
may damage the hard disk.

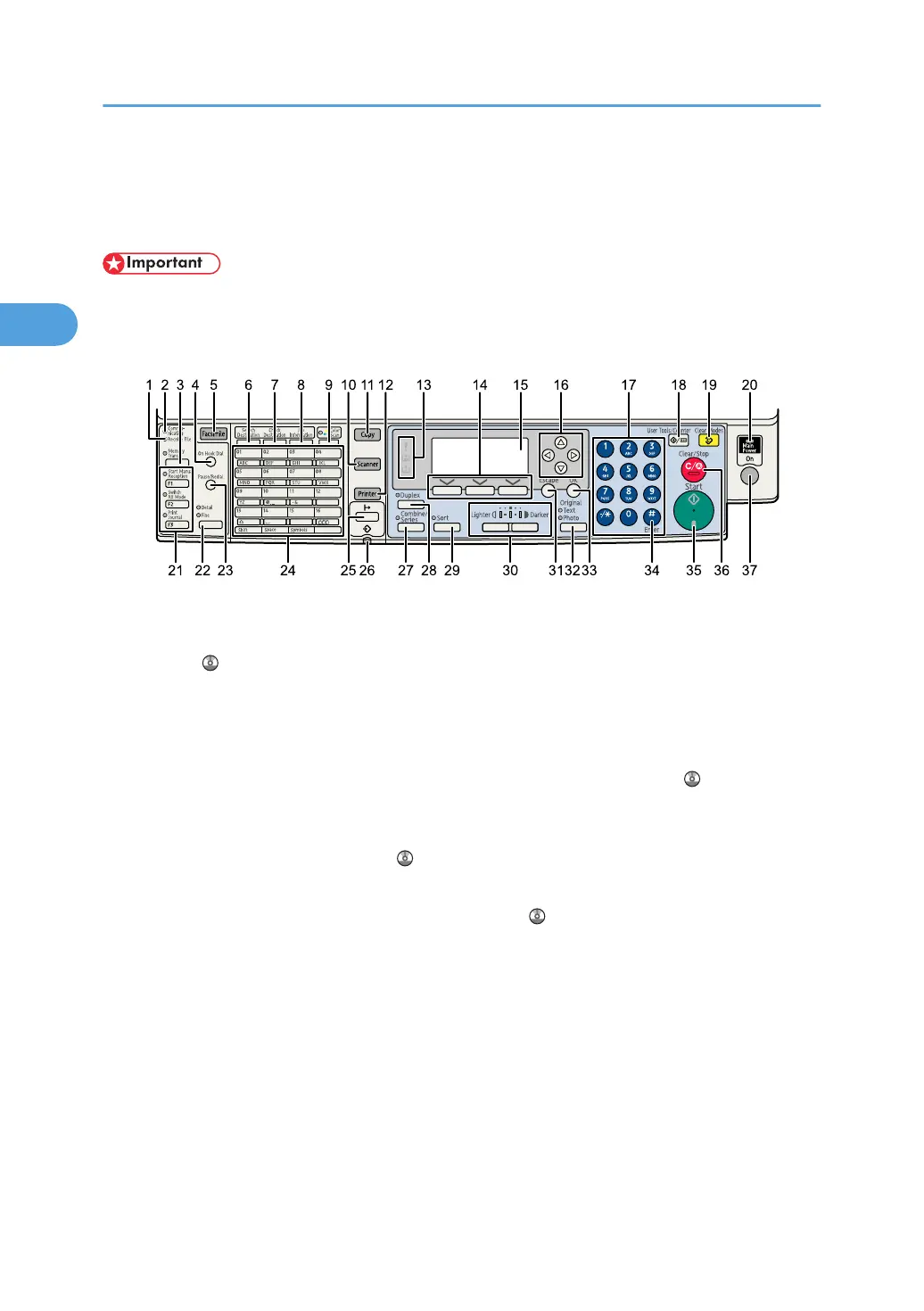

This illustration shows the control panel of the machine that has fax and printer/scanner installed.
1. Receive File indicator (facsimile mode)
Remains
lit when fax memory receives a file. Flashes for Memory Lock files. See “Types of Reception”, Facsimile
Reference
.
2.
Communicating indicator (facsimile mode)
Lit during data transmission or reception.
3. [Memory Trans.] key (facsimile mode)
Press to carry out memory transmission. See “Transmission Modes”, Facsimile Reference
.
4.
[On Hook Dial] key (facsimile mode)
Press this to hear dial and data tones on the fax line while dialing, as if the handset were off the hook. For details,
see “On Hook Dial”, Facsimile Reference
.
5.
[Facsimile] key
Press to activate the facsimile function. See Facsimile Reference
.
6.
[Search Destination] key (scanner and facsimile mode)
Press to search for a destination registered in the destination list.
7. [Check Destination] key (scanner and facsimile mode)
Press to check the specified destination.
8. [Job Information] key (scanner and facsimile mode)
Press to obtain status information on transmitted data.
9. [Colour Scan] key
Press to scan originals in full colour.
