Display Panel
The display panel shows machine status, error messages, and function menus.
• Don't
apply strong impact or force to the screen. Or it may be damaged. Maximum force allowable
is approx. 30N (approx. 3 kgf). (N = Newton, kgf = Kilogram force. 1 kgf = 9.8N.)
When you select or specify an item on the display panel, it is highlighted like
.
• The display panels shown in this manual's illustrations are taken from a machine that has fax and
printer/scanner installed.

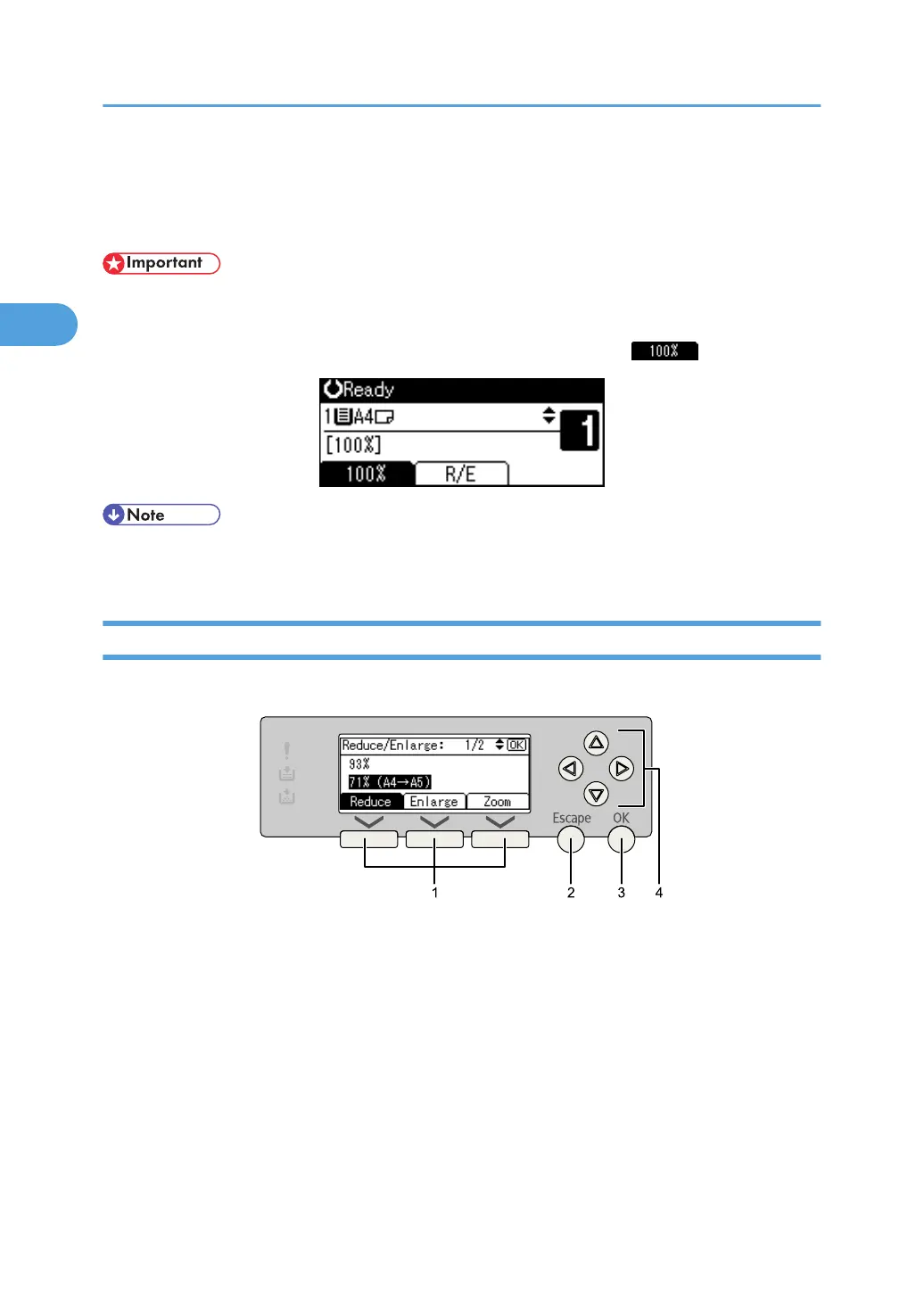

Reading the Display and Using Keys
This section explains reading the display panel and using the keys.
1. Selection keys
Correspond to items at the bottom line on the display.
Example: initial copy display
•
When the instruction “press [Reduce]” appears in this manual, press the left selection key.
• When the instruction “press [Enlarge]” appears in this manual, press the centre selection key.
• When the instruction “press [Zoom]” appears in this manual, press the right selection key.
2. [Escape] key
Press to cancel an operation or return to the previous display.
3. [OK] key
Press to set a selected item or an entered numeric value.
2. Getting Started
44
