33
3: What Else is Needed
The following items will also be needed for your RICOH Ri 3000/Ri 6000 printer operation:
1. Electronic hygrometer/thermometer (to monitor the relative humidity of the room the printer
is operating in).
2. PC computer with Vista, Windows 7, Windows 8 or Windows 10 operating system.
3. Graphics software installed in the PC, such as Photoshop, CorelDraw, Photoshop Elements
or Illustrator.
4. Heat press or textile oven (for heat curing of the ink).
5. Adequate supply of garments to print.
6. Paper towels.
7. Standard 8.5” x 11” copying or printing paper.
8. High Volume Low Pressure (HVLP) electric sprayer or other type of sprayer for
applying pretreatment for dark garments.
4: Setting up the Printer

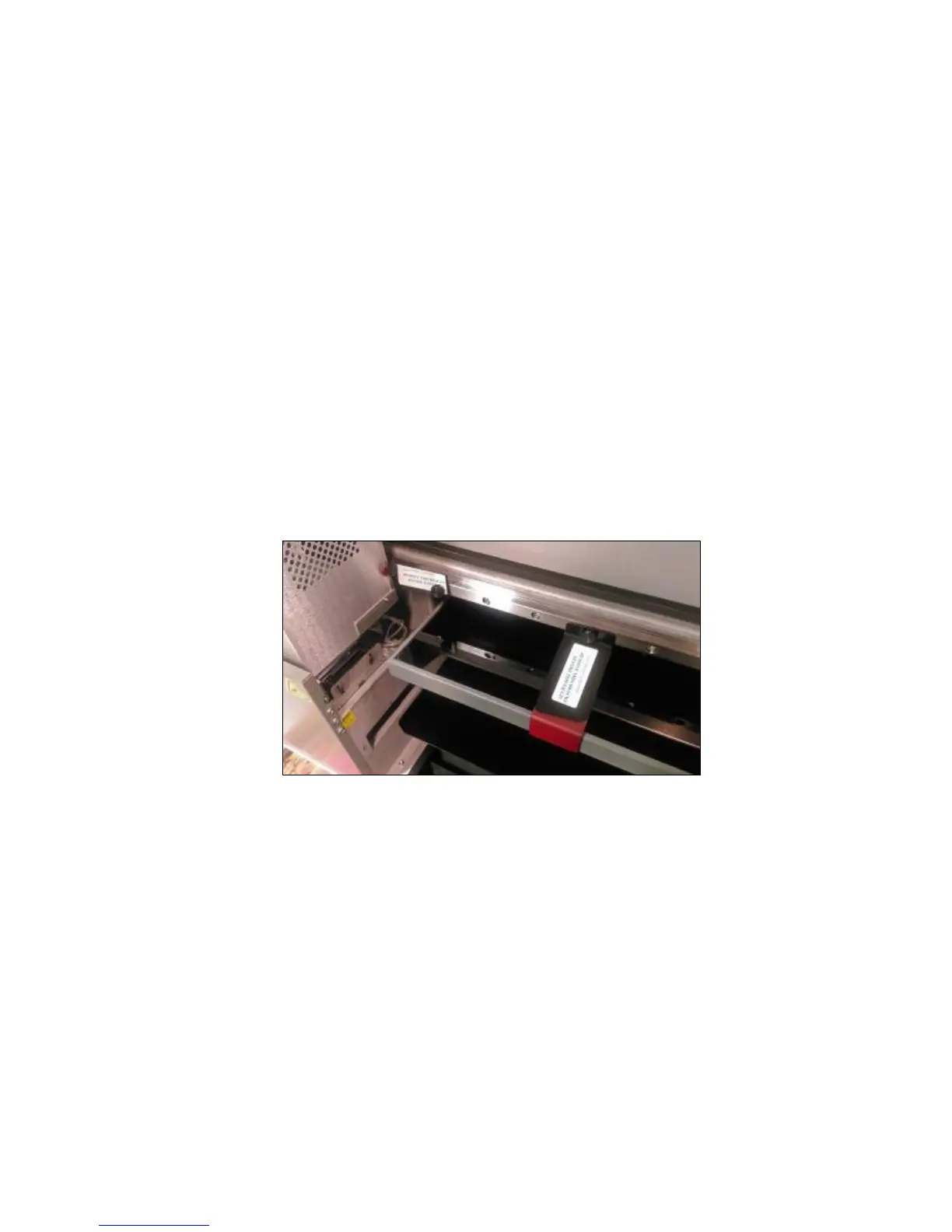

Figure 2.4-1 Retainer Brackets
Removing retaining brackets
It is very important that the printer be operated on a stable, sturdy and level table. Ensure that the table is
sturdy enough so the printer does not shake or vibrate during operation. Operating the printer on an
unstable, uneven or slanted surface will cause poor print quality and could damage the printer. Unlatch the
Top Cover using the key provided and turning counter-clockwise. Hold the key in this position and lift the
cover. Locate the Table and Carriage Retainers. (See figure 2.4-1)
Remove thumb screws holding the Table and Carriage Retainer in position. (See figure 2.4-1).
Keep the Retainers and 3 Thumb Screws for future use for printer shipment.
Now you can move the Print Table manually back and forward to make certain that the Print Table is free.
Take a moment to look at all internal mechanisms and verify that nothing has been damaged during shipping.
