7. Fusing Pressure Release Lever
If paper is jammed, lower the lever on the left end, and then remove the paper.
8. Front Cover
Open this cover to pull out the output tray before printing.
9. Maintenance Cover
Lift up this cover to replace consumables or clear a paper jam.
10. USB Port
Use this port to connect the machine to a computer using a USB cable.
11. Power Connector
Connect the power cord to the machine here. Insert the other end of the cable into a nearby wall outlet.
12. Power Switch
Use this switch to turn the power on or off.

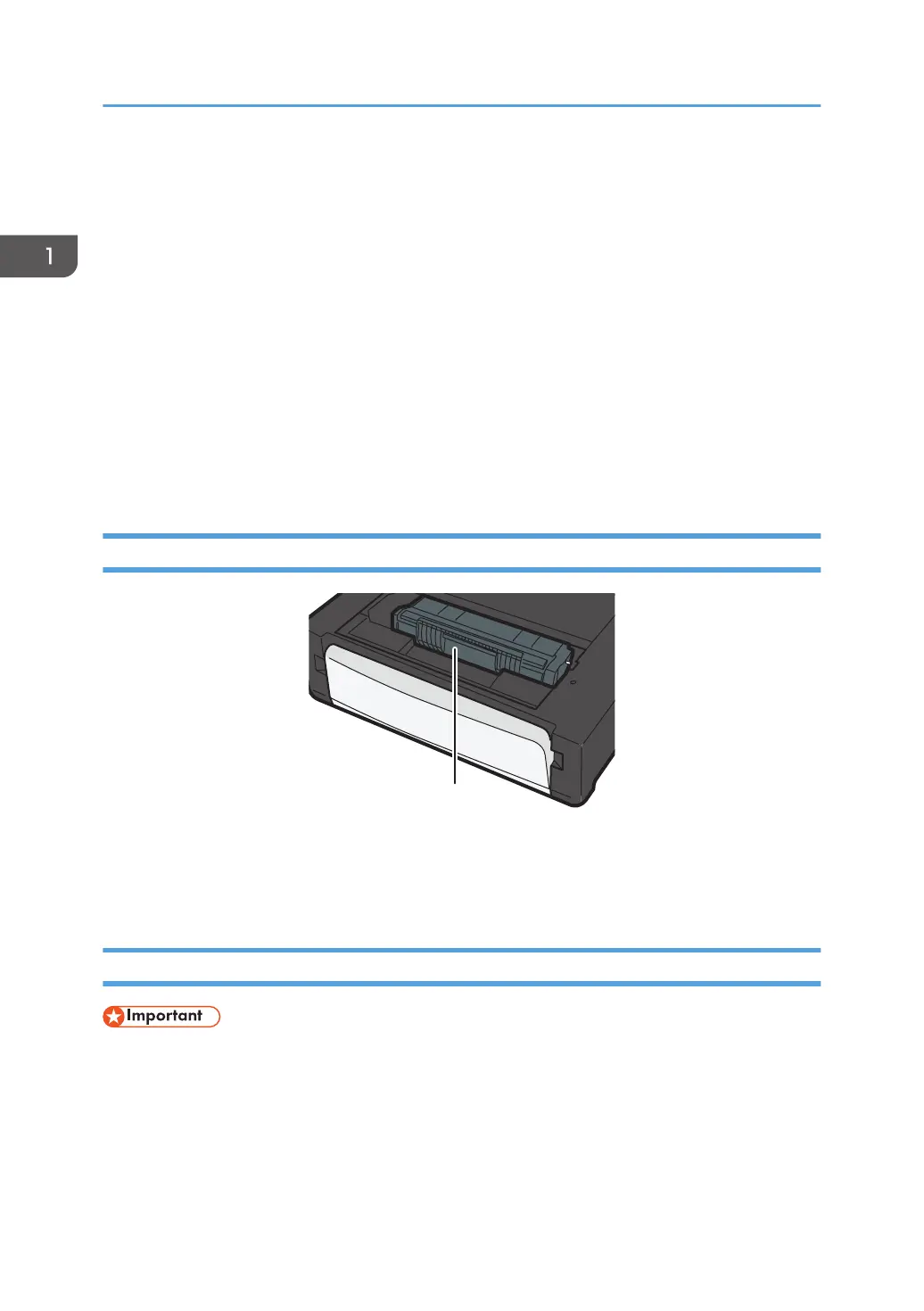

Interior
1. Print Cartridge
A replacement consumable that is required to make prints on paper. For details about replacing the cartridge,
see page 57 "Replacing the Print Cartridge".
Control Panel
• The actual control panel may look different from the illustration below, depending on the country of
use.
1. Guide to the Machine
