RIGOL Chapter 2 Front Panel Operations
2-72 DL3000 User’s Guide
Waveform Display Function
The electronic load provides the waveform display function and supports the
following operations for the waveform, such as pausing the waveform, recording the
waveform, and capturing the waveform. Therefore, you can dynamically observe the
trend of parameters changes.
The waveform display function is applicable to
CC/CV/CR/CP/Con/Pul/Tog/Battery/OCP/OPP/CC+CV modes.
In CC/CV/CR/CP/Battery/CC+CV modes, press the waveform display key
to
enter the waveform display interface. In Con/Pul/Tog/OCP/OPP modes, after you
enter the main interface, press the waveform display key
to enter the

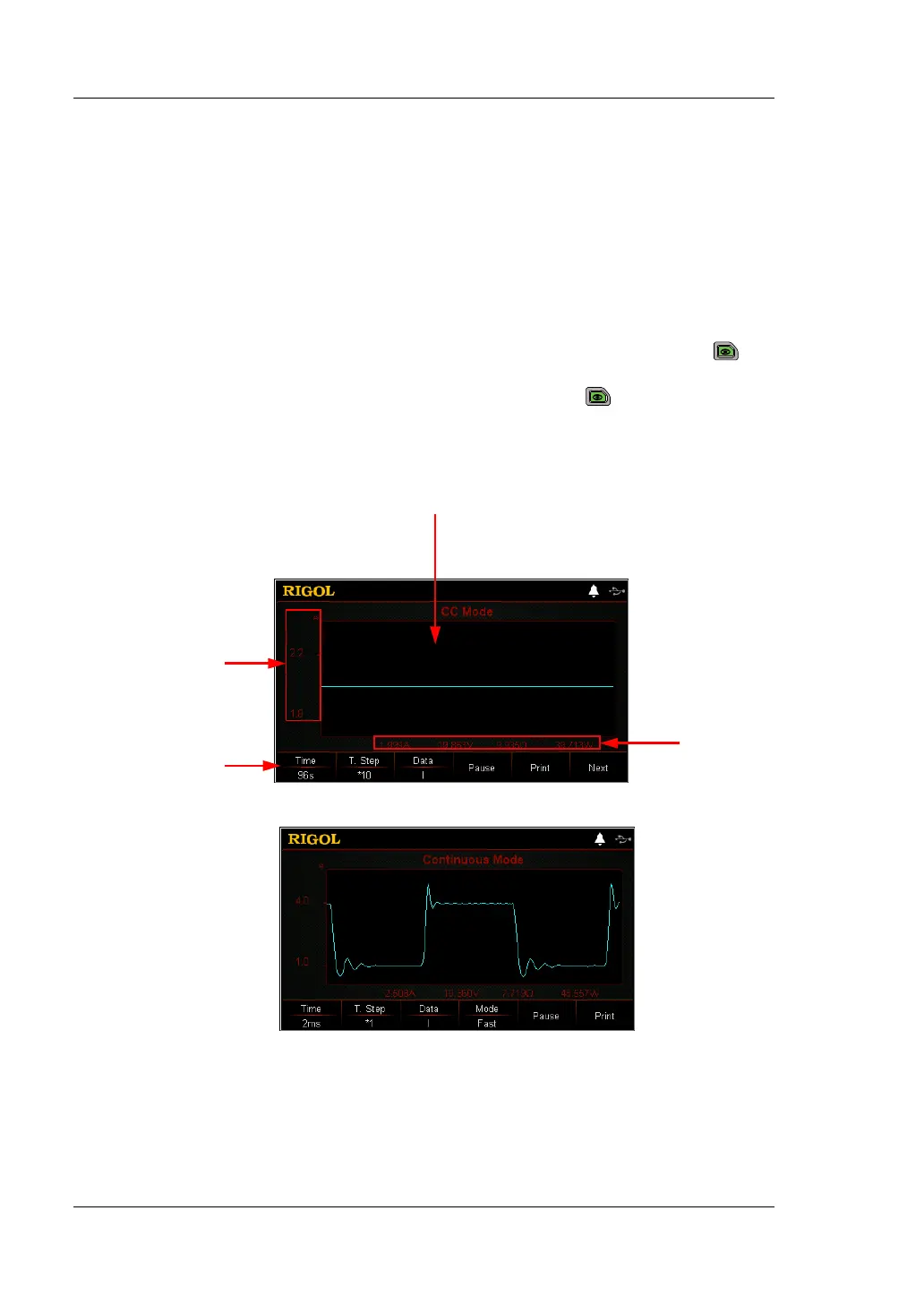

waveform display interface, as shown in Figure 2-43. Figure 2-43 (a) is applicable to
CC/CV/CR/CP/Pul/Tog/Battery/OCP/OPP/CC+CV modes (here the figure takes CC
mode as an example); Figure 2-43 (b) is only applicable to Con mode.
(a)
(b)
Figure 2-43 Waveform Display Interface
Waveform Display Area
Parameter
Display Area
Menu Item
Y-axis Parameter
