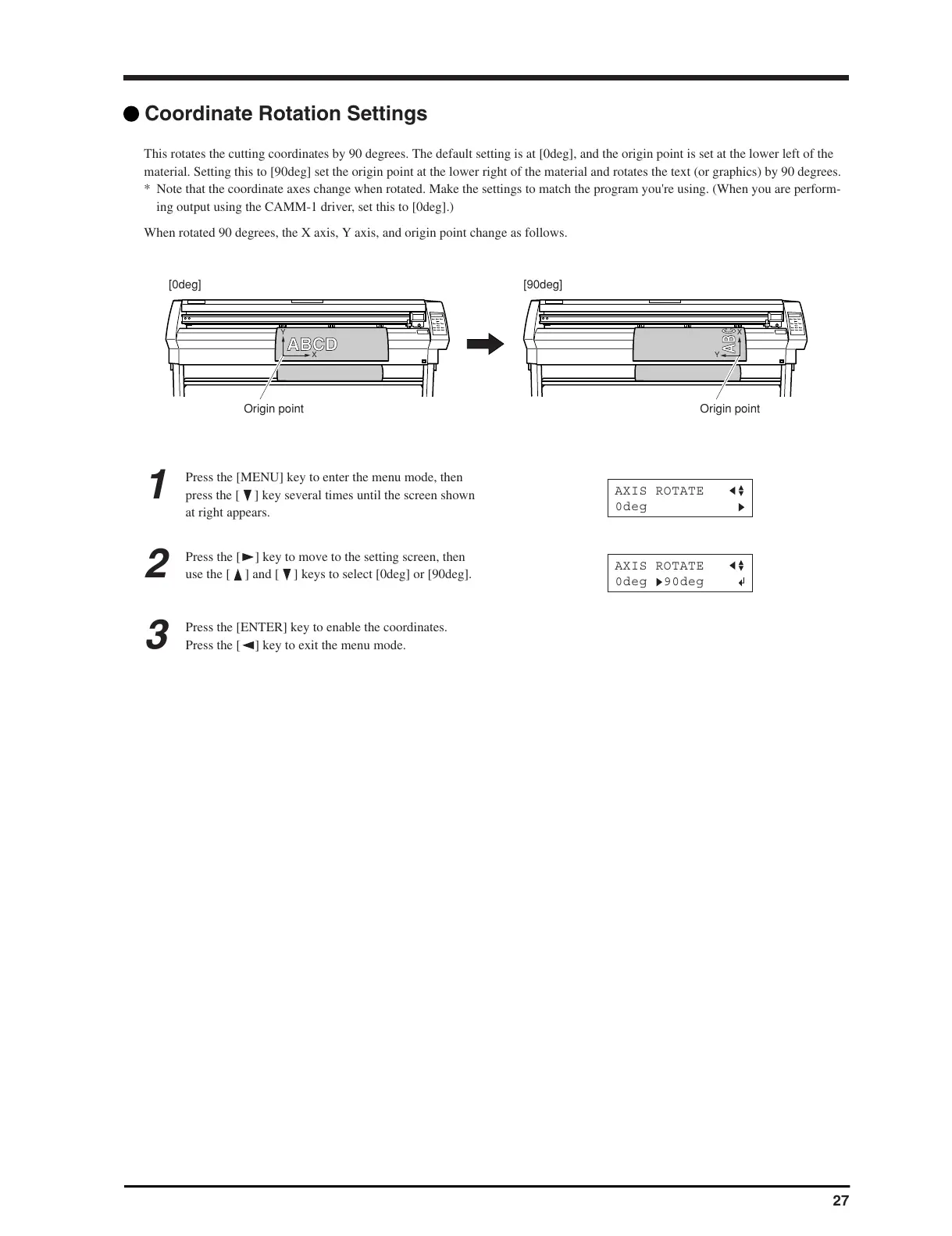

Coordinate Rotation Settings
This rotates the cutting coordinates by 90 degrees. The default setting is at [0deg], and the origin point is set at the lower left of the
material. Setting this to [90deg] set the origin point at the lower right of the material and rotates the text (or graphics) by 90 degrees.
* Note that the coordinate axes change when rotated. Make the settings to match the program you're using. (When you are perform-
ing output using the CAMM-1 driver, set this to [0deg].)
When rotated 90 degrees, the X axis, Y axis, and origin point change as follows.
1
Press the [MENU] key to enter the menu mode, then
press the [
] key several times until the screen shown
at right appears.
2
Press the [ ] key to move to the setting screen, then
use the [
] and [ ] keys to select [0deg] or [90deg].
3
Press the [ENTER] key to enable the coordinates.
Press the [
] key to exit the menu mode.
