3
Pin

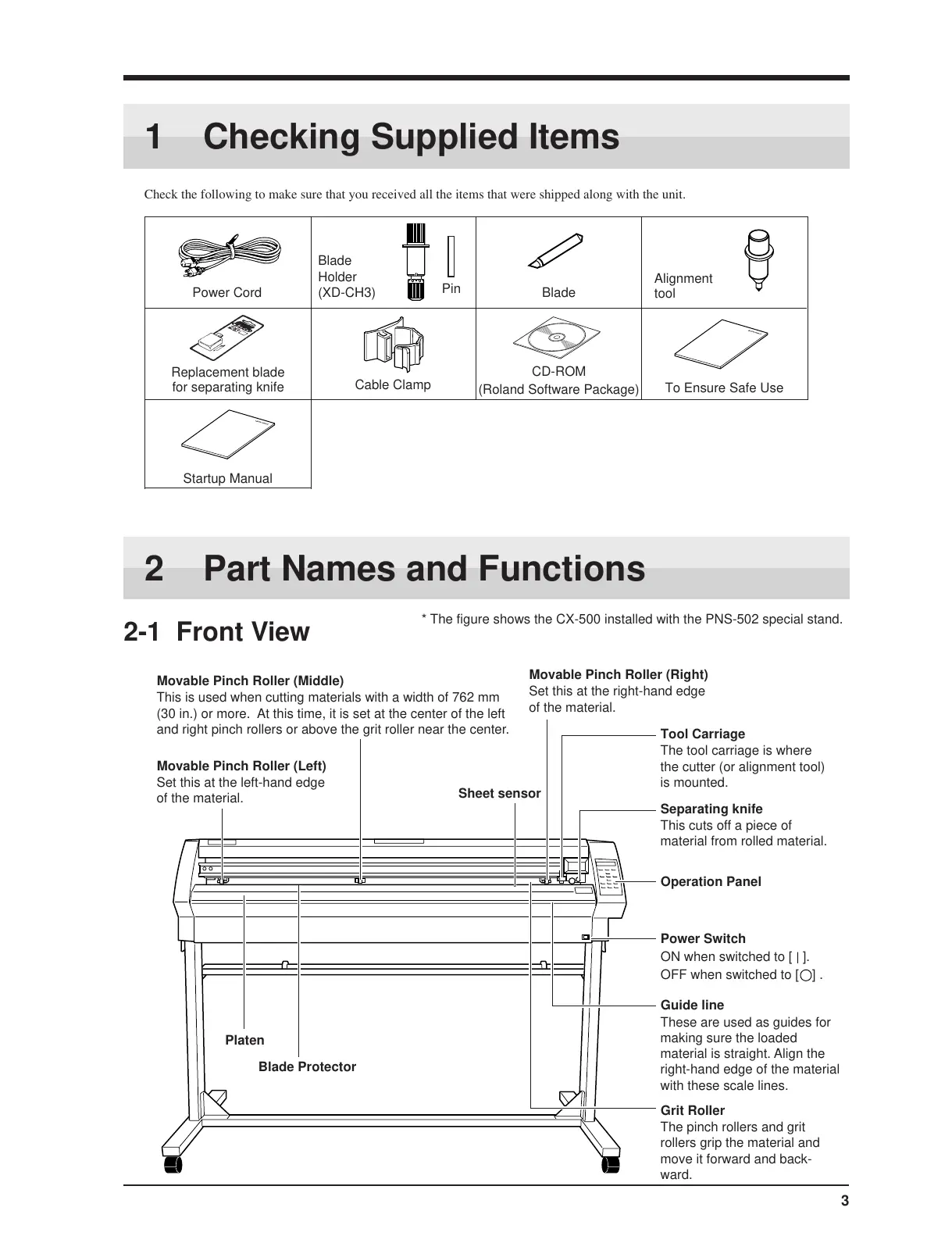

2 Part Names and Functions
2-1 Front View
* The figure shows the CX-500 installed with the PNS-502 special stand.
Movable Pinch Roller (Middle)
This is used when cutting materials with a width of 762 mm
(30 in.) or more. At this time, it is set at the center of the left
and right pinch rollers or above the grit roller near the center.
Platen
Blade Protector
Movable Pinch Roller (Left)
Set this at the left-hand edge
of the material.
Sheet sensor
Operation Panel
Tool Carriage
The tool carriage is where
the cutter (or alignment tool)
is mounted.
Separating knife
This cuts off a piece of
material from rolled material.
Power Switch
ON when switched to [
].
OFF when switched to [
] .
Guide line
These are used as guides for
making sure the loaded
material is straight. Align the
right-hand edge of the material
with these scale lines.
Grit Roller
The pinch rollers and grit
rollers grip the material and
move it forward and back-
ward.
Movable Pinch Roller (Right)
Set this at the right-hand edge
of the material.
1 Checking Supplied Items
Check the following to make sure that you received all the items that were shipped along with the unit.
Replacement blade
for separating knife
CD-ROM
(Roland Software Package)
Power Cord
Blade
Alignment
tool
Blade
Holder
(XD-CH3)
Startup Manual
To Ensure Safe Use
Cable Clamp
To Next Page
