Rotax 503 UL DCDI User Manual

d04094
page 10 - 3
Jan. 01/2007
Effectivity: 447 SCDI
OM Edition 1 / Rev. 0
BRP-Rotax
02789
02788
02787
fig. 12
fig. 14
fig. 13

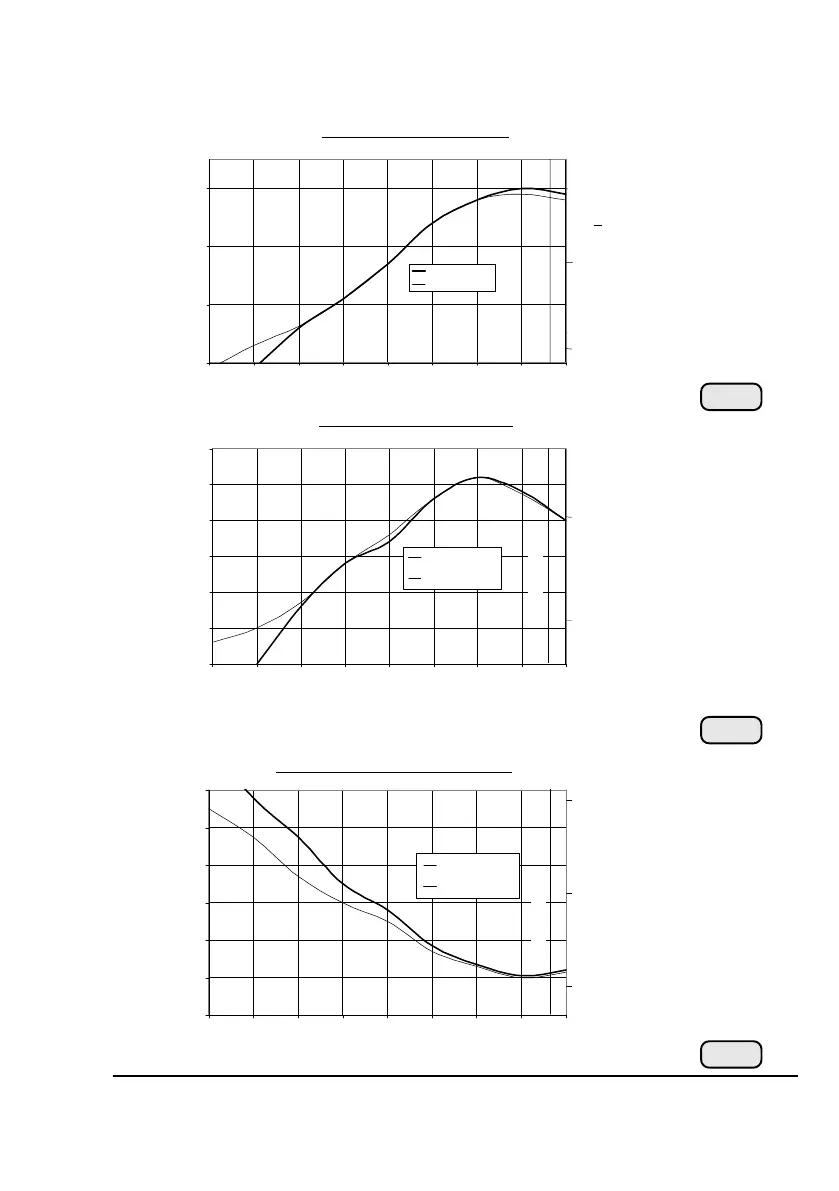

10.1) Performance graphs for stand. conditions (ISA)
a) 447 UL SCDI
TREIBST OFFVERBRAUCH / FUEL CONSUM PT ION
400
500
600
700
800
900
1000
3000 3500 4000 4500 5000 5500 6000 6500 7000
engine speed [RPM]
fuel consumption [g/KWh]
447 UL SCDI 1V
447 UL SCDI 2V
max. 6800
fuel consumption [lb/hph]
0,8
1,2
1,6
MOTORLEISTUNG / ENGINE PERFORMANCE
10
20
30
40
3000 3500 4000 4500 5000 5500 6000 6500 7000
engine speed [RPM]
performance [hp
]
447 UL SCDI 2V
447 UL SCDI 1V
20
30
performance [KW
]
max. 680
0
10
MOT ORDREHM OMENT / ENGINE TORQUE
20
25
30
35
40
45
50
3000 3500 4000 4500 5000 5500 6000 6500 7000
engine speed [RPM]
torque [Nm]
447 UL SCDI 2 V
447 UL SCDI 1 V
torque [ft. Lbf.]
30
20
max. 6800
