Samsung 6000 Series User Manual

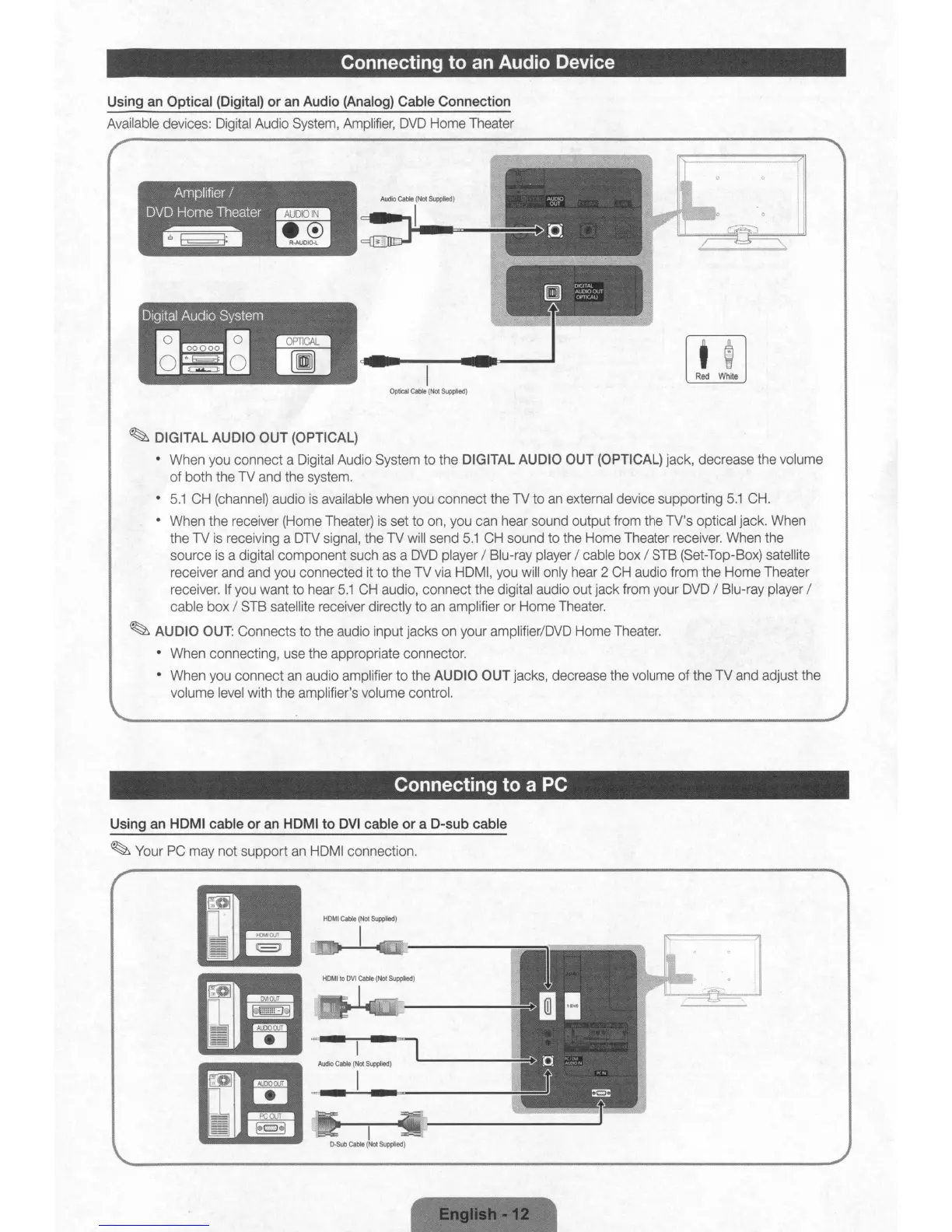

Connecting to an Audio Device
Using an Optical (Digital) or an Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, DVD Home Theater
Audio Cable (Not Supplied)
:::J~I ~~~.
lr3l
DIGITAL
AUDIO OUT
OPTICAL)
Red White
Optical Cable (Not Supplied)
~ DIGITAL AUDIO OUT (OPTICAL)
• When you connect a Digital Audio System to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
of both the TV and the system.
• 5.1 CH (channel) audio is available when you connect the TV to an external device supporting 5.1 CH.
• When the receiver (Home Theater) is set to on, you can hear sound output from the TV's optical jack. When
the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the Home Theater receiver. When the
source is a digital component such as a DVD player / Blu-ray player / cable box / STB (Set-Top-Box) satellite
receiver and and you connected it to the TV via HDMI, you will only hear 2 CH audio from the Home Theater
receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player /
cable
box / STB satellite receiver directly to an amplifier or Home Theater.
~ AUDIO OUT: Connects to the audio input jacks on your amplifier/DVD Home Theater.
• When connecting, use the appropriate connector.
•
When you connect an audio amplifier to the AUDIO OUT jacks, decrease the volume of the TV and adjust the
volume level with the amplifier's volume control.
Connecting to a PC
Using an HDMI cable or an HDMI to DVI cable or a D-sub cable
~ Your PC may not support an HDMI connection.
I
Audio Cable (Not Supplied)
I
Connecting to an Audio Device
Using an Optical (Digital) or an Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, DVD Home Theater
Audio Cable (Not Supplied)
:::J~I ~~~.
lr3l
DIGITAL
AUDIO OUT
OPTICAL)
Red White
Optical Cable (Not Supplied)
~ DIGITAL AUDIO OUT (OPTICAL)
• When you connect a Digital Audio System to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
of both the TV and the system.
• 5.1 CH (channel) audio is available when you connect the TV to an external device supporting 5.1 CH.
• When the receiver (Home Theater) is set to on, you can hear sound output from the TV's optical jack. When
the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the Home Theater receiver. When the
source is a digital component such as a DVD player / Blu-ray player / cable box / STB (Set-Top-Box) satellite
receiver and and you connected it to the TV via HDMI, you will only hear 2 CH audio from the Home Theater
receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player /
cable
box / STB satellite receiver directly to an amplifier or Home Theater.
~ AUDIO OUT: Connects to the audio input jacks on your amplifier/DVD Home Theater.
• When connecting, use the appropriate connector.
•
When you connect an audio amplifier to the AUDIO OUT jacks, decrease the volume of the TV and adjust the
volume level with the amplifier's volume control.
Connecting to a PC
Using an HDMI cable or an HDMI to DVI cable or a D-sub cable
~ Your PC may not support an HDMI connection.
I
Audio Cable (Not Supplied)
I
