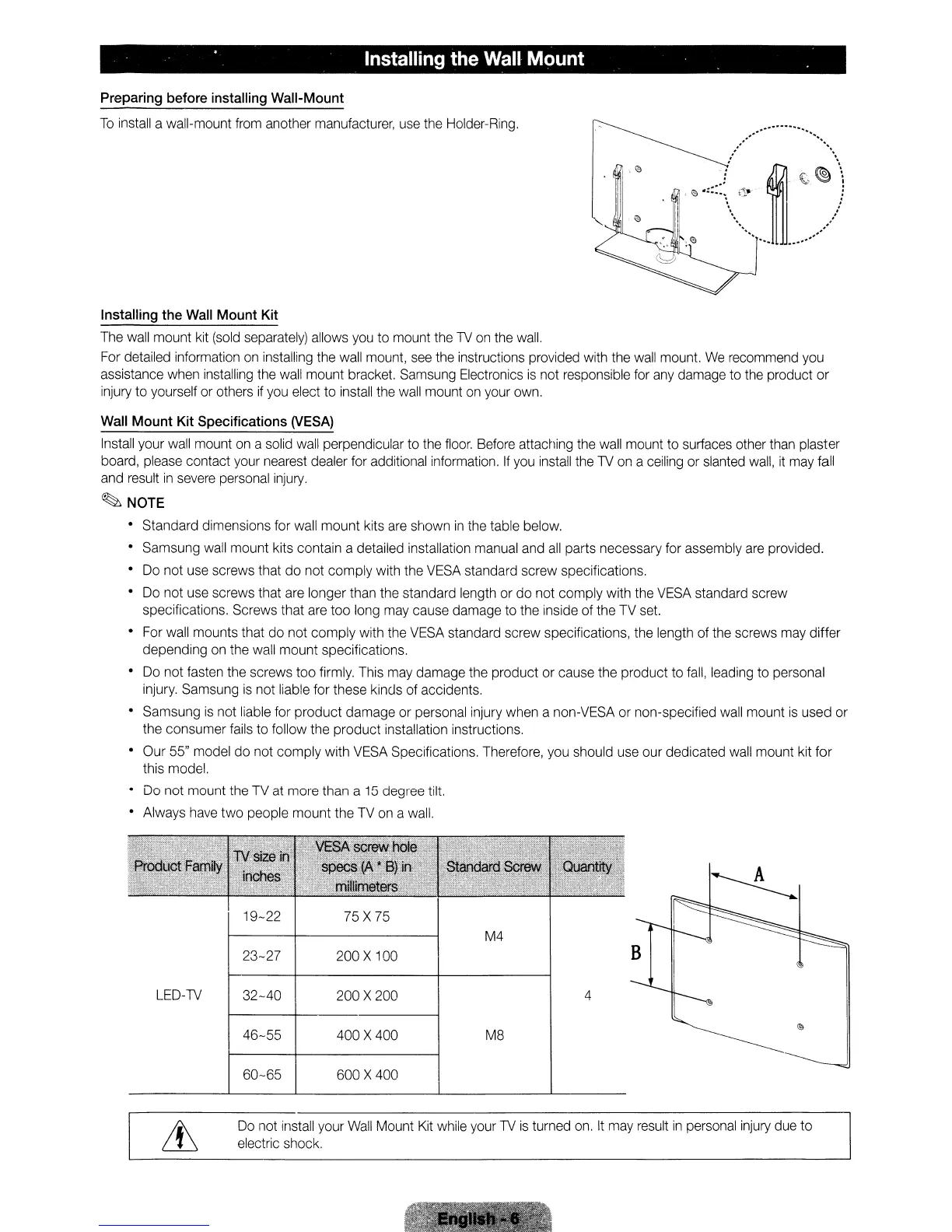

. Installing the Wall Mount
.'
Preparing
before
installing
Wall-Mount
To
install a wall-mount from another manufacturer, use the Holder-Ring.
l
~/························
(1J
.:
IfiC)I.
\
•
(1J
.:::::
fl"
~
~
~
i
. I \ J !
. .
. .
. .
'......
~~##
",
.,
..
Installing
the
Wall
Mount
Kit
The wall mount kit (sold separately) allows you to mount the
1V
on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount.
We
recommend you
assistance when installing the wall mount bracket. Samsung Electronics
is
not responsible for any damage to the product
or
injury to yourself or others
if
you elect to install the wall mount
on
your own.
Wall
Mount
Kit
Specifications
(VESA)
Install your wall mount on a solid wall perpendicular to the
floor.
Before attaching the wall mount to surfaces other than plaster
board, please contact your nearest dealer for additional information.
If
you install the
1V
on a ceiling or slanted wall, it may fall
and result
in
severe personal injury.
~NOTE
• Standard dimensions for wall mount kits are shown
in
the table below.
• Samsung wall mount kits contain a detailed installation manual and
all
parts necessary for assembly are provided.
• Do not use screws that
do
not comply with the VESA standard screw specifications.
• Do not use screws that are longer than the standard length or
do
not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the TV set.
• For wall mounts that
do
not comply with the VESA standard screw specifications, the length of the screws may differ
depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product
or
cause the product to fall. leading to personal
injury. Samsung
is
not liable for these kinds of accidents.
• Samsung
is
not liable for product damage or personal injury when a non-VESA
or
non-specified wall mount
is
used or
the consumer fails to follow the product installation instructions.
• Our
55" model
do
not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for
this model.
• Do not mount the TV at more than a
15
degree
tilt
• Always have
two
people mount the TV on a wall.
LED-1V
19-22
23-27
32-40
46-55
60-65
75X
75
200 X100
200
X 200
400
X 400
600 X400
M4
M8
4
B
Do not install your
Wall
Mount Kit while your
1V
is
turned on.
It
may result
in
personal injury due
to
electric shock.
. Installing the Wall Mount
.'
Preparing
before
installing
Wall-Mount
To
install a wall-mount from another manufacturer, use the Holder-Ring.
l
~/························
(1J
.:
IfiC)I.
\
•
(1J
.:::::
fl"
~
~
~
i
. I \ J !
. .
. .
. .
'......
~~##
",
.,
..
Installing
the
Wall
Mount
Kit
The wall mount kit (sold separately) allows you to mount the
1V
on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount.
We
recommend you
assistance when installing the wall mount bracket. Samsung Electronics
is
not responsible for any damage to the product
or
injury to yourself or others
if
you elect to install the wall mount
on
your own.
Wall
Mount
Kit
Specifications
(VESA)
Install your wall mount on a solid wall perpendicular to the
floor.
Before attaching the wall mount to surfaces other than plaster
board, please contact your nearest dealer for additional information.
If
you install the
1V
on a ceiling or slanted wall, it may fall
and result
in
severe personal injury.
~NOTE
• Standard dimensions for wall mount kits are shown
in
the table below.
• Samsung wall mount kits contain a detailed installation manual and
all
parts necessary for assembly are provided.
• Do not use screws that
do
not comply with the VESA standard screw specifications.
• Do not use screws that are longer than the standard length or
do
not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the TV set.
• For wall mounts that
do
not comply with the VESA standard screw specifications, the length of the screws may differ
depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product
or
cause the product to fall. leading to personal
injury. Samsung
is
not liable for these kinds of accidents.
• Samsung
is
not liable for product damage or personal injury when a non-VESA
or
non-specified wall mount
is
used or
the consumer fails to follow the product installation instructions.
• Our
55" model
do
not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for
this model.
• Do not mount the TV at more than a
15
degree
tilt
• Always have
two
people mount the TV on a wall.
LED-1V
19-22
23-27
32-40
46-55
60-65
75X
75
200 X100
200
X 200
400
X 400
600 X400
M4
M8
4
B
Do not install your
Wall
Mount Kit while your
1V
is
turned on.
It
may result
in
personal injury due
to
electric shock.
