installation & connection
18_ installation & connection
CONNECTING WITH OTHER DEVICE
Preparing Adapter and Cable
J
`

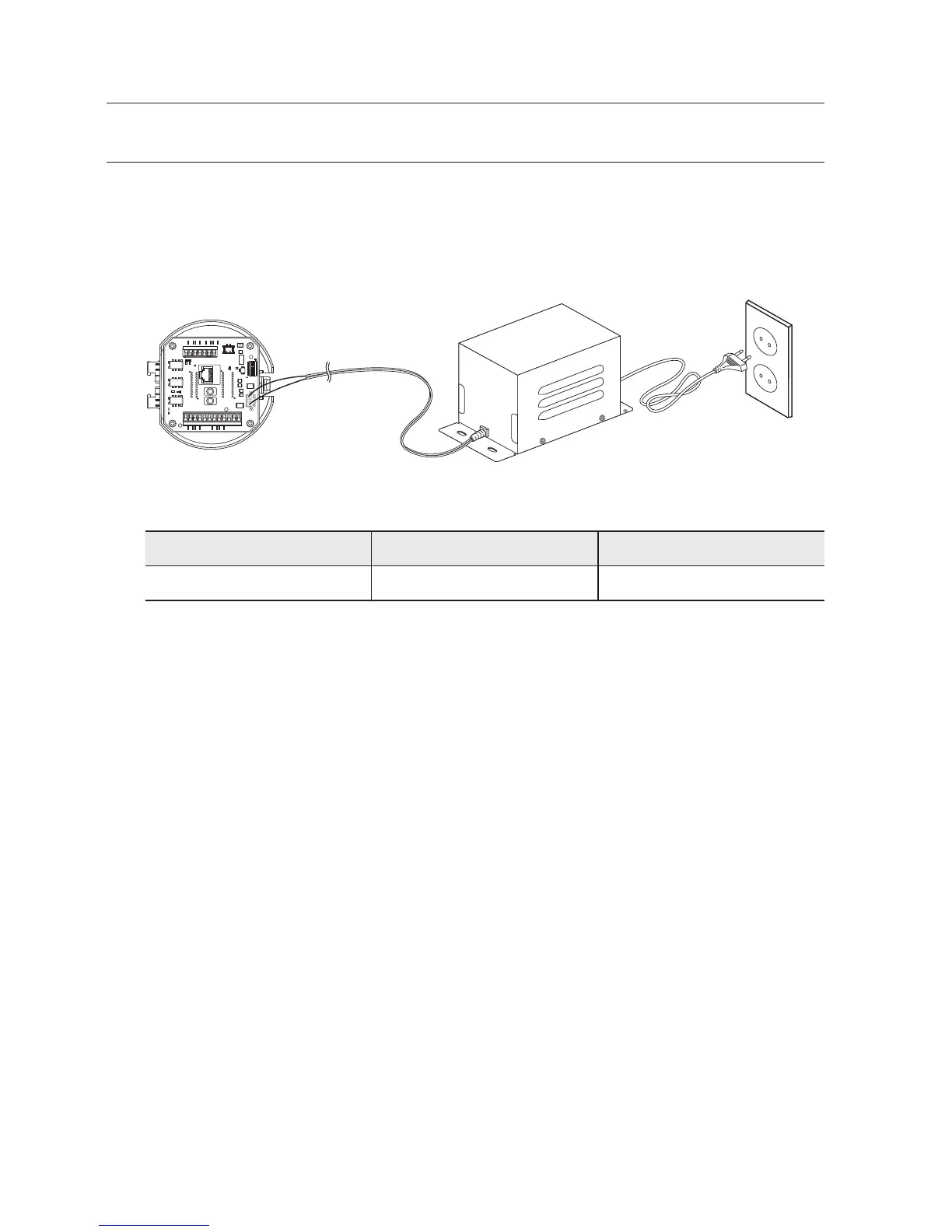

Connect the camera to the power adaptor. Then, plug the power cord of the adaptor to the wall
outlet.
Check out the rated voltage and current before making connections.
Rated Power Allowable Input Voltage Current Consumption
AC 24V AC 22V ~ 26V 6 A
J
`
The product cannot be used at -50°C or below ambient temperature.
`
The product may not be defrosted depending on the installation area at -50°C.
`
Leave the product always turned on to maintain the internal temperature of -10°C or higher.
`
After the product is left alone under a low temperature environment, it will take up to 3 hours to
normally operate.
`
The zooming speed of the IR dimmer may slow down at -40°C or lower environment.
`
If the product is turned on after being exposed to -40°C or below environment for some time,
reset the time.
2N.C
2N.0
COM2
1N.C
1N.0
COM1
GND
IN4 IN3
GND
IN2 IN1
Alarm
IN1 IN2 GND IN3 IN4 GND 1C0M 1.N0 1.NC 2C0M 2.N0 2.NC
AXICOM
IMO3
5VDC
AXICOM
IMO3
5VDC
AXICOM
IMO3
5VDC
Video Out
AUDIO_OUTAUDIO_IN
Power
AC 22~26V
Alarm2 ONAlarm1 ON
D+ D- TXD+ TXD- GND A.COM A.NO
AUDIO_OUTAUDIO_IN
AXICOM
IMO3
5VDC
Alarm2 ON
1143Н
AXICOM
IMO3
5VDC
Alarm1 ON
1143Н
AXICOM
IMO3
5VDC
1143Н
IN1 IN2 GND IN3 IN4 GND 1C0M 1.N0 1.NC 2C0M 2.N0 2.NC
ON DIP
D+ D- TXD+ TXD- GND A.COM A.NO
