Samsung SNP-6320RH User Manual

English _19
● INSTALLATION & CONNECTION
Electrical Resistance of Copper Wire at [20°C (68°F)]
Copper Wire Gauge (AWG) #24(0.22mm
2
) #22(0.33mm
2
) #20(0.52mm
2
) #18(0.83mm
2
)
Resistance (Ω/m) 0.078 0.050 0.030 0.018
Drop Voltage (V/m) 0.028 0.018 0.011 0.006
Recommended Distance (m) Less than 20 Less than 30 Less than 30 Less than 30
`
As shown in the table above, you may encounter a voltage-sag depending on the wire length.
If you use an excessively long wire for camera connection, the camera may not work properly.
-
Camera Operating Voltage: AC 24V±10%
-
Voltage drop measurements on the chart above may vary depending on the type and manufacture of
the copper cable.
Ethernet Connection
Connect the Ethernet cable to the local network or to the Internet.

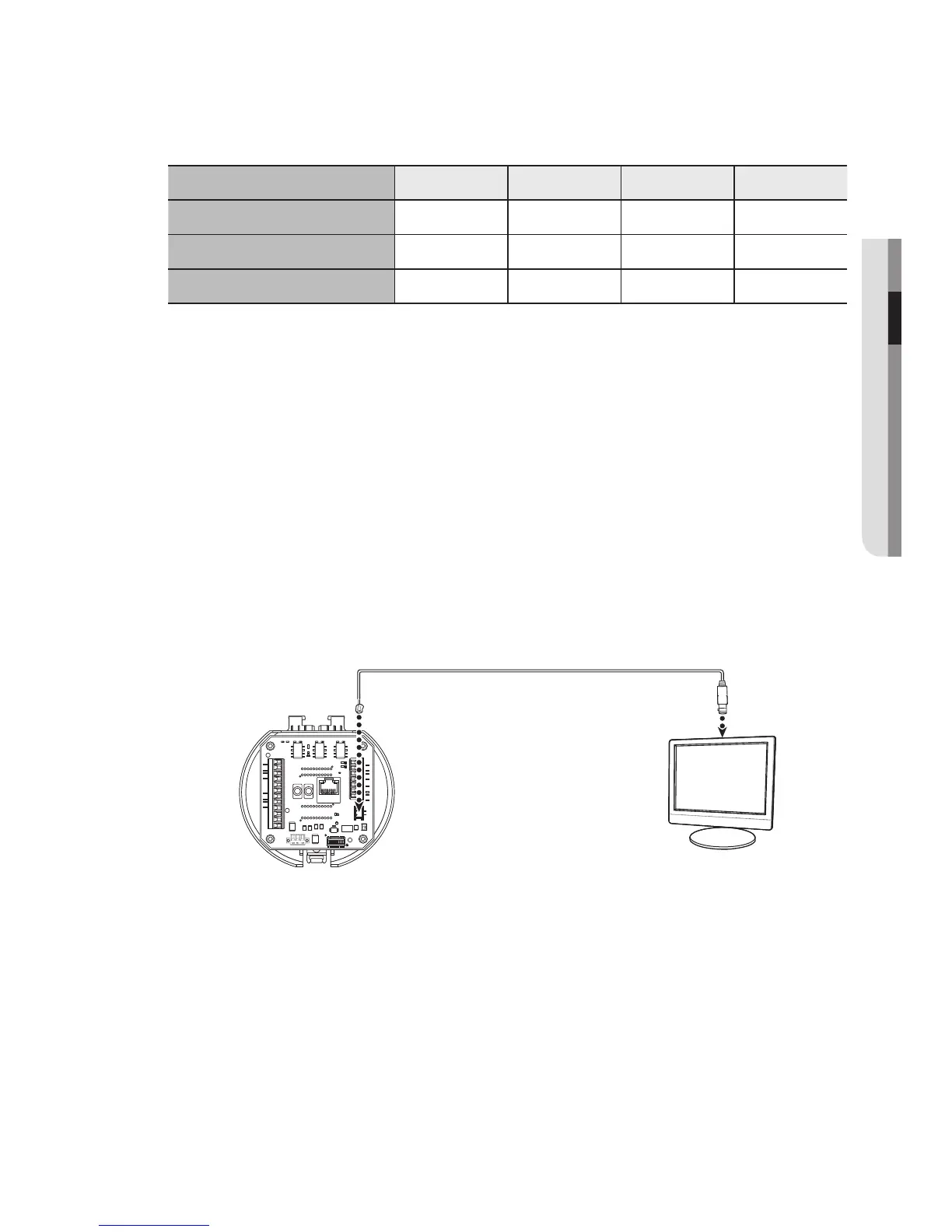

Connecting the installation monitor
Connect the cable to the camera’s rear video output terminal and the installation monitor’s
video input terminal.
`
The wiring varies depending on your monitor type and peripheral devices; please refer to the user manual
for each device.
`
Please make sure the monitor and camera are turned off when connecting them.
2N.C
2N.0
COM2
1N.C
1N.0
COM1
GND
IN4
IN3
GND
IN2
IN1
Alarm
IN1 IN2 GND IN3 IN4 GND 1C0M 1.N0 1.NC 2C0M 2.N0 2.NC
AXICOM IMO3 5VDC AXICOM IMO3 5VDC AXICOM IMO3 5VDC
Video Out
AUDIO_OUTAUDIO_IN
Power
AC 22~26V
Alarm2 ONAlarm1 ON
D+ D- TXD+
TXD-
GND
A.COM
A.NO
AUDIO_OUTAUDIO_IN
AXICOM IMO3 5VDC
Alarm2 ON
1143Н
AXICOM IMO3 5VDC
Alarm1 ON
1143Н
AXICOM IMO3 5VDC
1143Н
IN1 IN2 GND IN3 IN4 GND 1C0M 1.N0 1.NC 2C0M 2.N0 2.NC
ON DIP
D+ D- TXD+
TXD-
GND
A.COM
A.NO
Monitor
