Switch Control Setup

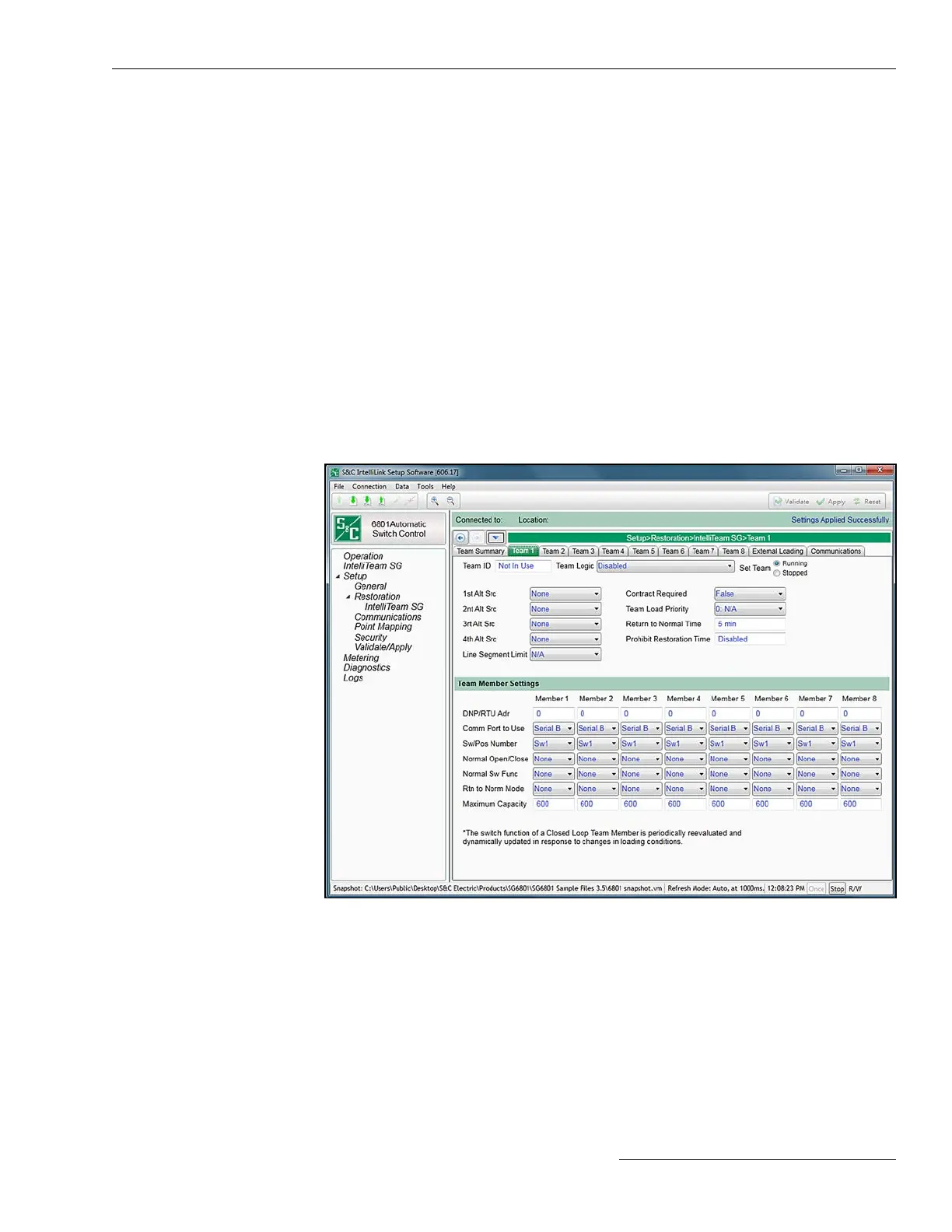

Figure 24. The Setup>Restoration>IntelliTeam SG>Team 1 to Team 8 screen.
The Setup>Restoration>IntelliTeam SG>Team X screens let one set the IntelliTeam II
Automatic Restoration System parameters for each team in which this control is a member.
See Figure 24. Only use these screens when conguring this control to operate in the
IntelliTeam II Compatibility Mode setting. If this control is congured to operate in
an IntelliTeam SG system, use IntelliTeam Designer software. See S&C Instruction Sheet
1044-570, “S&C IntelliTeam
®
Designer: User’s Guide.” The Set Team setpoint is used
with both IntelliTeam II and IntelliTeam SG restoration systems when it is necessary to
restart the IntelliTeam logic for troubleshooting purposes.
When the No option is selected, the IntelliTeam application functions normally. The
application will qualify a fault condition and determine fault location based on the exter-
nal device DNP status point information.
Source Transfers with Bus Sensing (only for 68023PM software)
A source-transfer switch with voltage sensing on the bus cannot sense voltage present
when the primary source is lost. The IntelliTeam SG Automatic Restoration System
normally does not close the alternate switch when voltage is not sensed. With the Source
Transfers with Bus Sensing mode set to the Yes option, the IntelliTeam SG system is
permitted to switch without sensing voltage present and can close the alternate switch.
When using the Source Transfers with Bus Sensing mode, set the Return to
Normal mode on the Setup>Restoration>IntelliTeam SG>TeamX>Team Member
Settings screen to the None option.
If voltage is not present when the alternate switch is closed, and the Team Member
Re-Qualify Time setting on the Setup>Restoration>IntelliTeam SG>Communications
screen is set to the Disabled option, the IntelliTeam SG system opens the alternate
switch. If a time value is configured for the Team Member Re-Qualify Time feature,
the IntelliTeam SG system will perform one retry when the timer expires.
Team Setup
S&C Instruction Sheet 1045-530 51
