Switch Control Setup
Keepalive Status
The Wi-Fi module exchanges a message with the control every 5 seconds. When the control
responds, the Wi-Fi module maintains communication and reports “Keepalive Active.”
Flash Memory Access Status
“Wi-Fi Signature Record obtained” indicates that the Wi-Fi module obtained the required
conguration information from ash memory, such as the security passwords.
Transfer Wi-Fi Configuration Section
Click on the Save button to transfer the current Wi-Fi conguration to the compact
ash memory. The Bytes Transferred eld indicates the le size transferred, and the
Transfer Status eld indicates completion by changing from the Ready to Done state.
Click on the Install button to upload a new Wi-Fi settings file from the compact
flash memory. The Bytes Transferred field indicates the file size transferred, and the
Transfer Status field indicates completion by changing from the Ready to Done state.

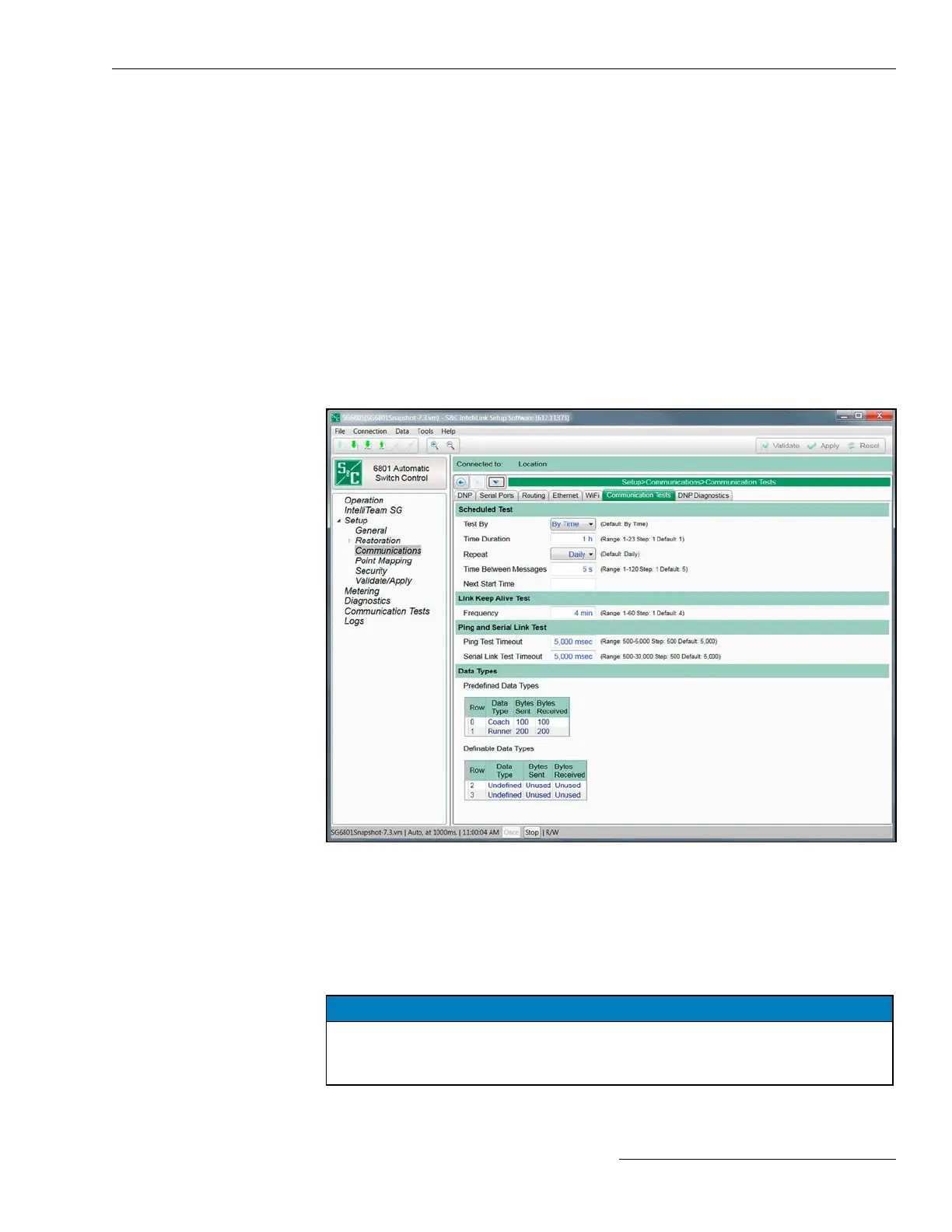

Figure 34. The Setup>Communications>Communication Tests screen.
Scheduled Test Section
Diagnostic tests determine that nodes are responding to communication and how quickly
they respond. Statistics are recorded, such as response time, failure, and retry. Tests are
scheduled periodically and typically run for one hour. Any network node can send tests
to other network nodes. One or more test message types (Data Types, such as a coach
or runner) can be congured but do not contain real data. See Figure 34.
NOTICE
Running scheduled tests across a slower speed communication network may cause
poor performance. It is recommended to keep all settings at their default or lower
values when running these tests on slower communication networks.
Note: The tested nodes are determined automatically based on the nodes entered on
IntelliTeam system configuration screens.
Communication Tests
S&C Instruction Sheet 1045-530 75
