S&C 6801 User Manual

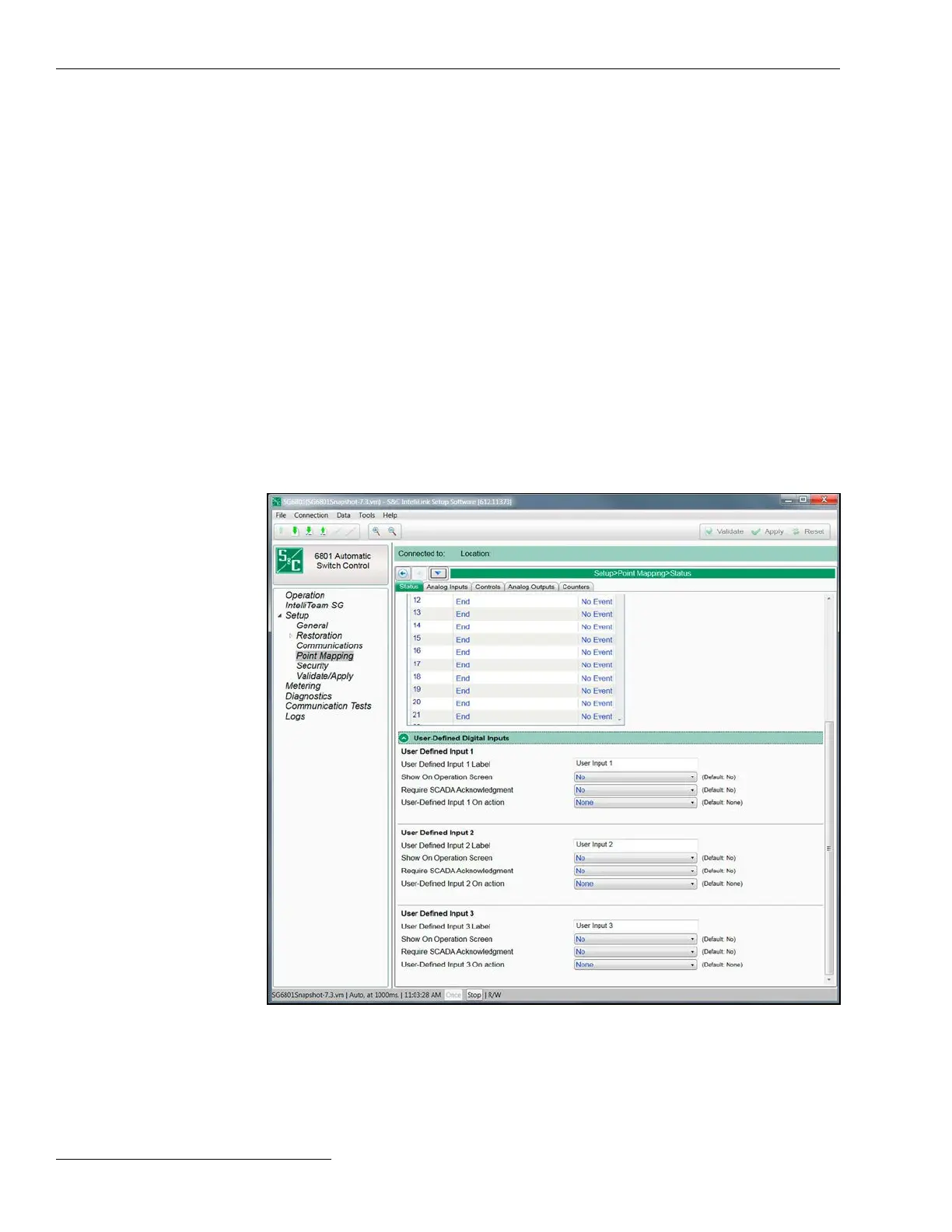

Figure 36. The Setup>Point Mapping>Status screen, SG6802-3U software shown.
The screen shown in Figure 36 contains conguration parameters for DNP Status points.
Map these points to make them available in the SCADA system.
Status Point
This is the point number the SCADA system will see in response to a static or event data
request or an unsolicited event response.
Switch Control Setup
Good Link Health Threshold
This configures the percentage of successful message transmissions that will define
good link health. (Range: 85-99; Step: 1; Default: 95)
Marginal Link Health Threshold
This configures the percentage of successful message transmissions that will define
marginal link health. (Range: 5-84; Step: 1; Default: 25)
Other DNP V3 Addresses to Monitor Section
Selected DNP Addresses
These DNP addresses can be monitored, check the box to select an address to monitor.
(Default: Unchecked)
Activate button
Every time a DNP address is checked or unchecked for monitoring, click on the Activate
button.
Last Activate Time
This timestamp indicates the last time the Activate button was clicked.
DNP Status Point
Mapping
78 S&C Instruction Sheet 1045-530
