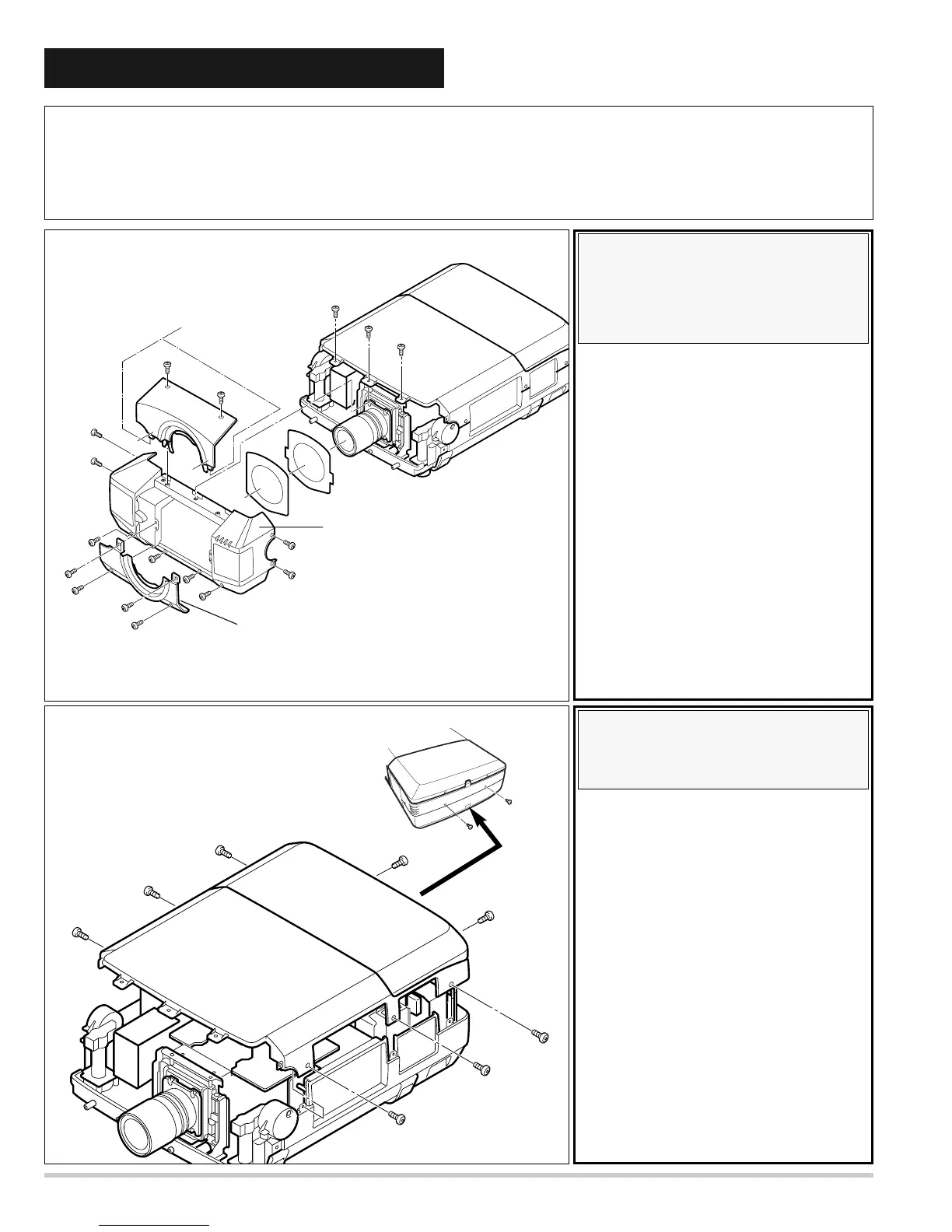

Mechanical disassemblies
Remove 8 screws and remove the Cabinet -
top.
Note :
Be careful not to damage Hook.
The cabinet-front-top is being
fixed with cabinet-front-bottom by
hook.
1. Remove 2 screws-A. Push part(a) and pull
the Cabinet-front-top up.
2. Remove 4 screws-B and remove the Cabinet
front bottom.
3. Remove 11 screws-C and remove the
Cabinet front.
Refer to Lens replacement and installation
manual.
1.
Cabinet-front-top,
Cabinet-front-bottom
and Cabinet-front removal.
2.
Cabinet-top removal.
-10-
Disassemble should be made following procedures in numerical order.
Following steps show the basic procedures, therefore unnecessary step may be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original otherwise it may cause lose of
performance and product safety.
