116
124
111
111
110
110
112
123
101
119
103
118
115
102
122
122
121
121
120
114
114
113
107
104
108
105
109
106
C
D
B
F
Green
Red
Blue
124-1
124-2
124-2
124-2
124-3
124-3
124-3
124-4
124-5
124-6
124
PRISM ASSEMBLY
(RED)
(GREEN)
(BLUE)
G
G
G
101
PRISM ASSEMBLY (PBS)
102
DICHROIC MIRROR (Y/IA)
103 DICHROIC MIRROR (C)
104 POLARIZED GLASS (IN/B)
105 POLARIZED GLASS (IN/G)
106 POLARIZED GLASS (IN/R)
107 POLARIZED GLASS (HIN/B)
108
POLARIZED GLASS (HIN/G)
109 POLARIZED GLASS (HIN/R)
110 OPTICAL FILTER
111 OPTICAL FILTER
112 OPTICAL FILTER (UV/IR)
113 OPTICAL FILTER (UV cut )
114 MIRROR (B-COLD)
115 MIRROR (R)
116 MIRROR (COLD)
118 LENS-CONDENSER(OUT)
119 LENS-CONDENSER (IN)
120 LENS-RELAY (OUT)
121 LENS-RELAY (IN)
122 LENS-CONDENSER(G)
123
LENS-INTEGRATOR
124 PRISM ASSEMBLY
KEY No.
DESCRIPTION

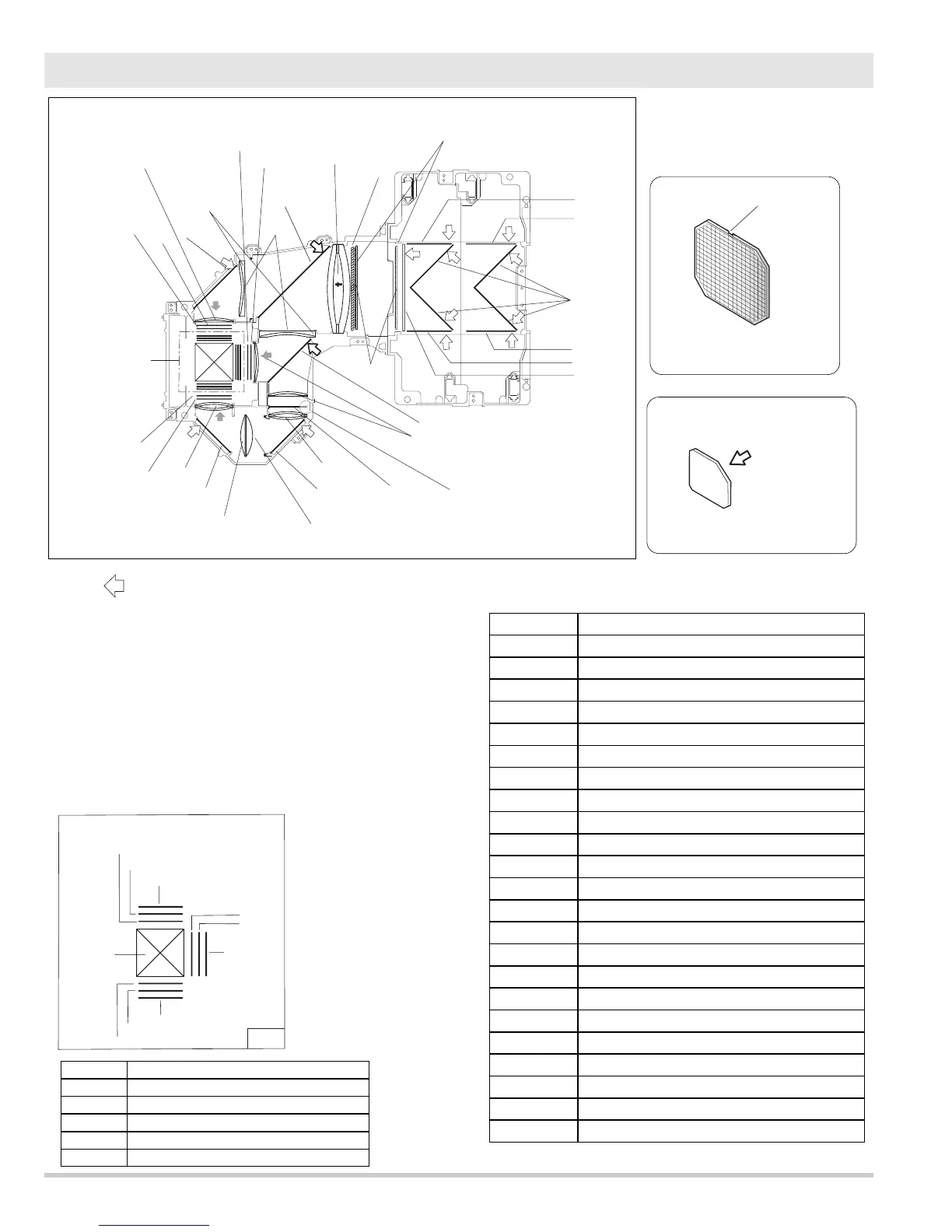

Optical parts Location and direction
124-1
124-2
124-3
124-4
124-5
124-6
PRISM ASSEMBLY
OPTICAL FILTER (WV)
POLARIZED GLASS(HOUT/QU)
POLARIZED GLASS (OUT/R)
POLARIZED GLASS (OUT/G)
POLARIZED GLASS (OUT/B)
A : The printed marker comes this side.
B : Plane surface comes this side.
C : Spherical surface comes this side.
D : Slot part comes this top side.
E : Glass shoud be placed as the film attached
side comes to the LCD panel side.
F : Big chamfer comes this top side.
G : The printed marker comes top side.
(Optical filter)
The optical parts name (description)
can see it on parts-list.(page-78)
There is a directionality (the gradation) if installs the
Dichroic Mirror for the putting a marker comes always
to the position of the figure.
Lamp side
F
Optical filter (UV cut)
Without LCD Panel
in the figure.
No.123
No.113
