Sanyo PLC-XF45 Service Manual

-49-
Integrator lens in
adjustment
Integrator lens out
adjustment
Prism PBS
adjustment
Condenser lens
adjustment
Relay lens
adjustment
Polarizer
adjustment
(2),(3)
(1)
(4)
(5)
(6)
Focus of
LCD panel
adjustment
Convergence
adjustments
(7)
(8)
(9)

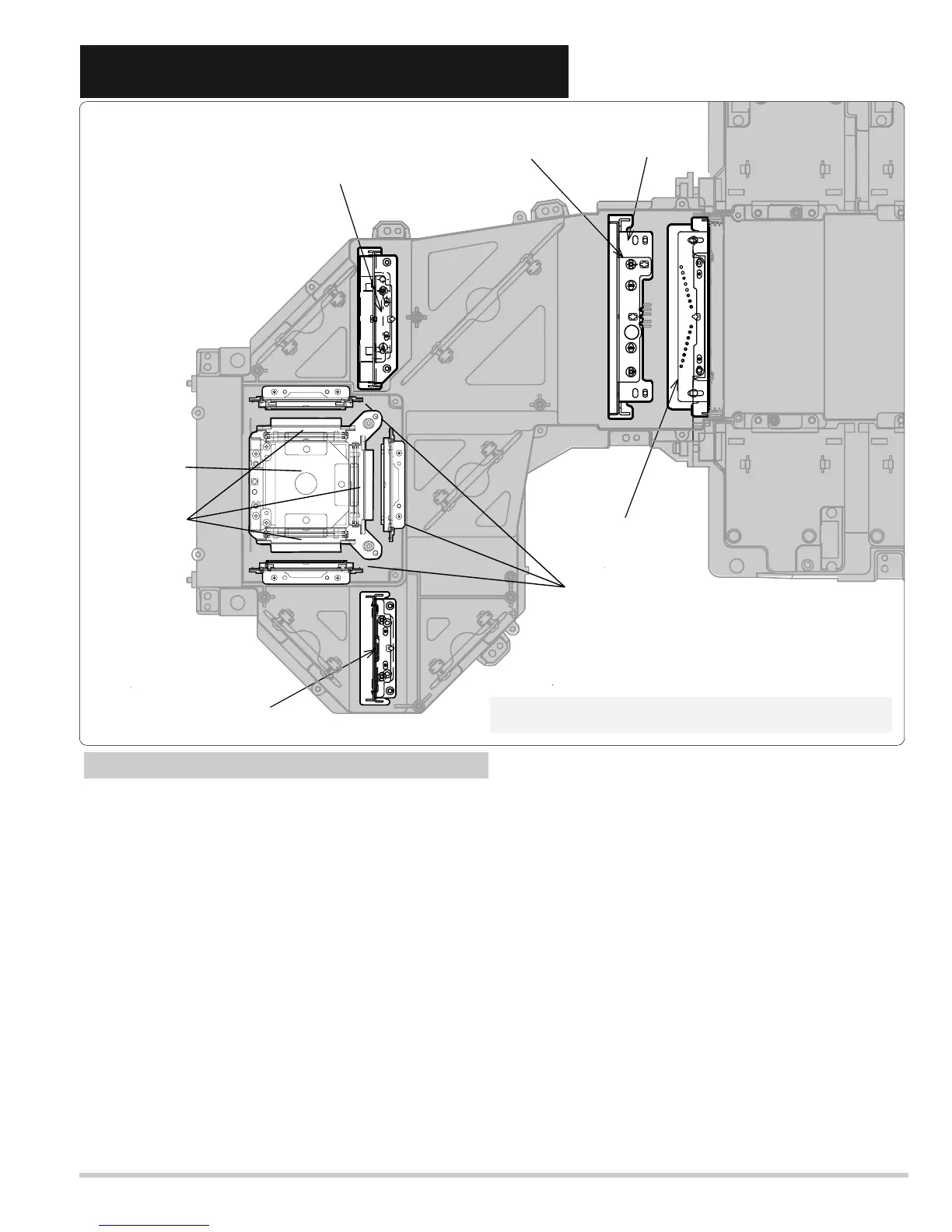

■ Adjustment optical components location
Optical components adjustments
Optical components adjustments procedure
When adjusting optical component, adjust each adjustment item in numerical order.
Incorrect adjustment steps may produce improper adjustment. The items adjusted correctly
can be omitted from the steps.
(1) Focus of LCD panel adjustment.
(2) Integrator-lens-in 1 adjustment. (turn)
(3) Integrator-lens-in 2 adjustment. (top / bottom)
(4) Integrator-lens-out adjustment. (left / right)
(5) Condenser-lens adjustment.
(6) Relay-lens adjustment.
(7) Convergence adjustment.
(8) Prism PBS adjustment.
(9) Polarizer adjustment.
Fig.1
