-40-
10us/Div

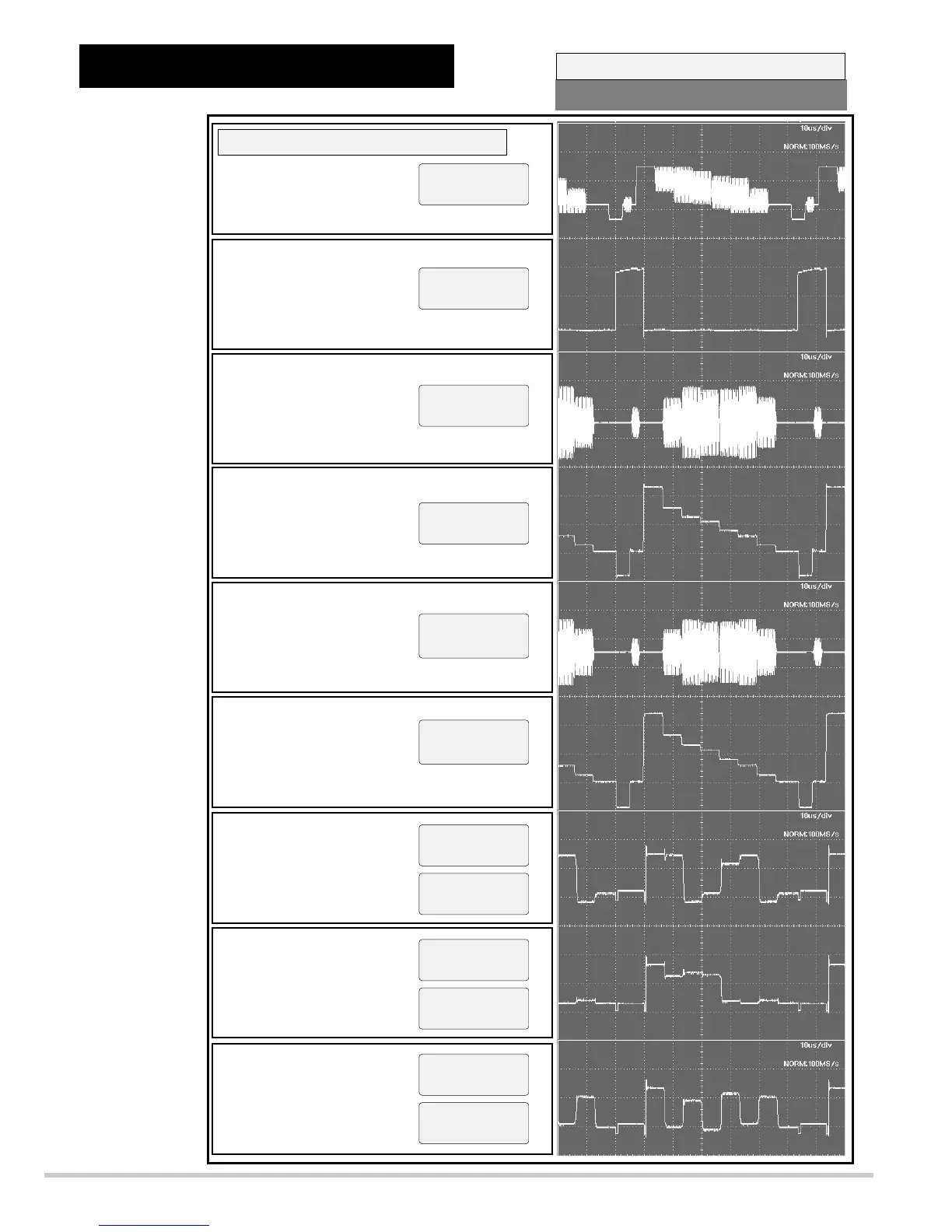

Waveforms
NTSC
0.5V/Div
TP_32H1
H_sync 2V/Div
TP_5101
C 0.5V/Div
TP_5102
Y 0.5V/Div
TP_3141
C 0.5V/Div
TP_3142
Y 0.5V/Div
TP_5181
Red 0.5V/Div
TP_5182
Green 0.5V/Div
TP_5183
Blue 0.5V/Div
TP_201
0.5V/Div
TP_211
0.5V/Div
TP_221
0.5V/Div
Timing chart
Terminal board-AV Video-in
